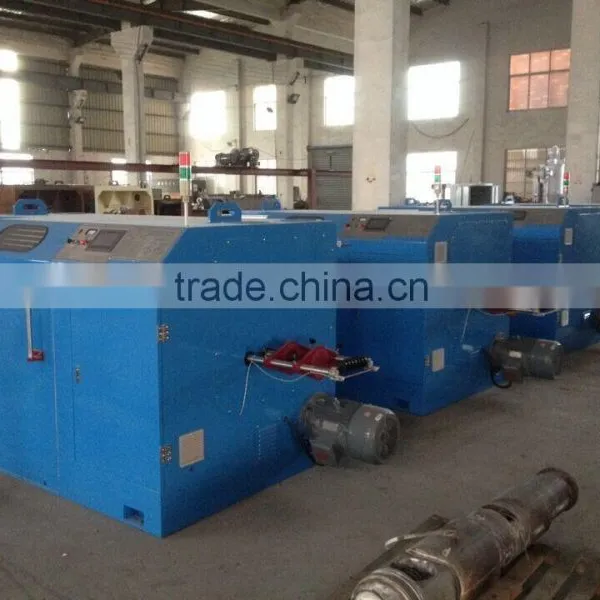

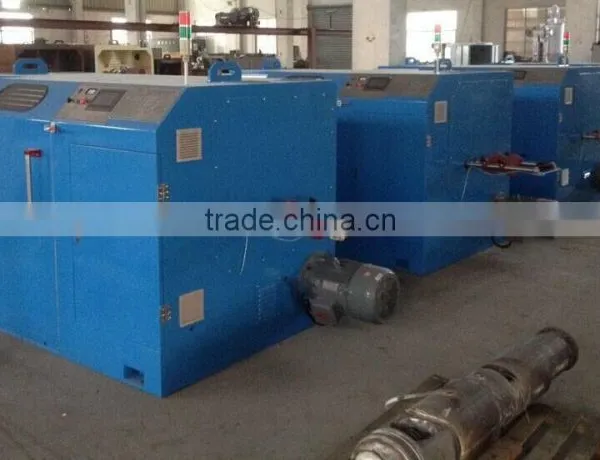

Type of machine : HT– 800P
Wire diameter range : φ 0.3- φ1.68mm
Stranding sectional area : 0.5- 16.0mm2

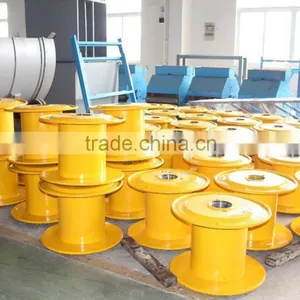

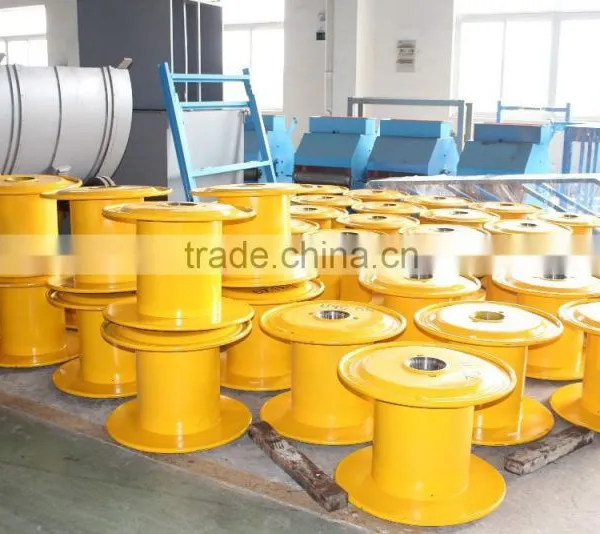

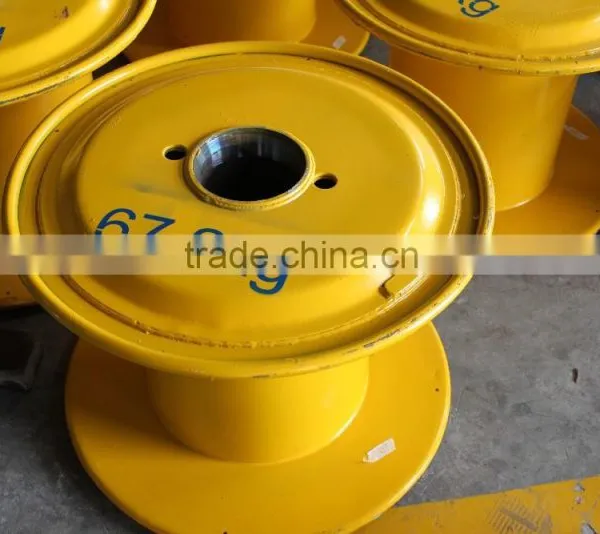

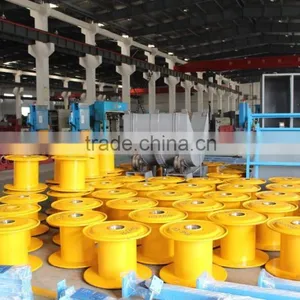

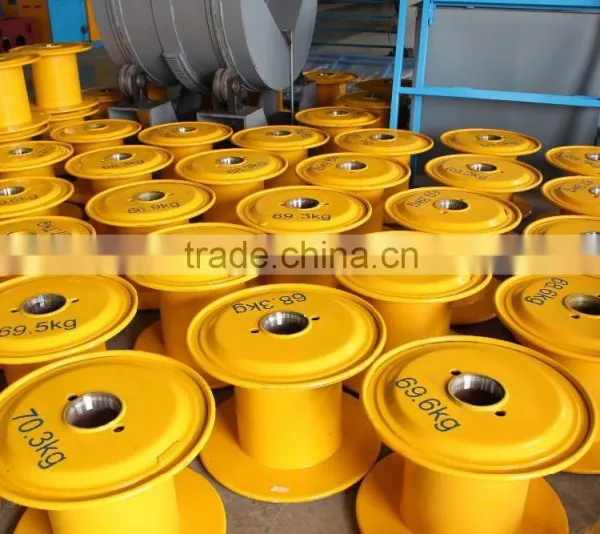

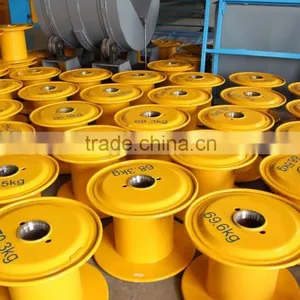

Take up bobbin : DIN 800mm (Φ127XΦ800 XΦ500)
(drawing shall be provided by user)
Rotational speed : 1600rpm/3200TPM
Drive motor : 18.5 KWAC
Stranding pitches : 24 - 160mm
Pitch change : Manually change pulling capstans (coated Cr)
Bobbins loading and unloading : by hydraulic with motor
Pulleys : all wire guide pulleys are coated ceramic
Transmission : by synchro tooth belt
Traverse method : polish rod traverse with adjustable width and distance.
Take-up tension control : magnetic particle clutch (new) 256 level auto control to
ensure the stable tension from empty to full bobbin.
Braking system : electromagnetic brake, inside and
outside wire break detector, automatically brake control
Noose level : ≤ 85dB(A)
Center height : 1100mm
Stranding direction : left or right (S or Z)
Machine demension : approx.3770X1800X1900
Weight : about 7000KGS
Color/painting : Machine color is RAL 6018 Yellow Green
Rotate portion and safety fence are RAL 1018 Zinc Yellow
or upon on customer’s request.
Production performance:
Spec. |
2-4mm2 |
4-6mm2 |
6-8mm2 |
8-10mm2 |
10-12mm2 |
12-16mm2 |
Speed |
1500RPM |
1300RPM |
1200RPM |
1000RPM |
800RPM |
600RPM |
Packing: packed on wooden pallets in 1 x 20′container
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
1. 40% at contract, 55% before shipment, 5% after acceptance test at user site in 1 month by T/T.
2. Payment by L/C is acceptable.
Warranty: 12 months counted from the date of signing the Certificate of Acceptance. But if due to the Buyer's reason, the commissioning and acceptance of the line is delayed, the guarantee period of quality shall be no more than 18 months from the arrival date of equipment at the destination port.
