Home > Electrical & Electronics > Battery, Storage Battery & Charger > Battery Pack > 60Ah li Ion Battery Cell

60Ah li Ion Battery Cell

Name: 60Ah li Ion Battery Cell
Brand: Liyuan
SKU: 111669335
Availability: InStock

US$ 120 - 150 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Liyuan

Model Number:

HP-NP-3R2-600

Contact Supplier Request Quote Chat Now

Chaoyang Liyuan New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Liyuan

Model Number HP-NP-3R2-600

Composed Type Other

Type Li-Ion

Components Other

Size 36130185

Voltage 3.2V

Weight 1730g

Nominal Capacity 60Ah

Application EV,HEV,energy storage,Telecom,E-bike,E-motor,forklife,Port machine etc

Production:

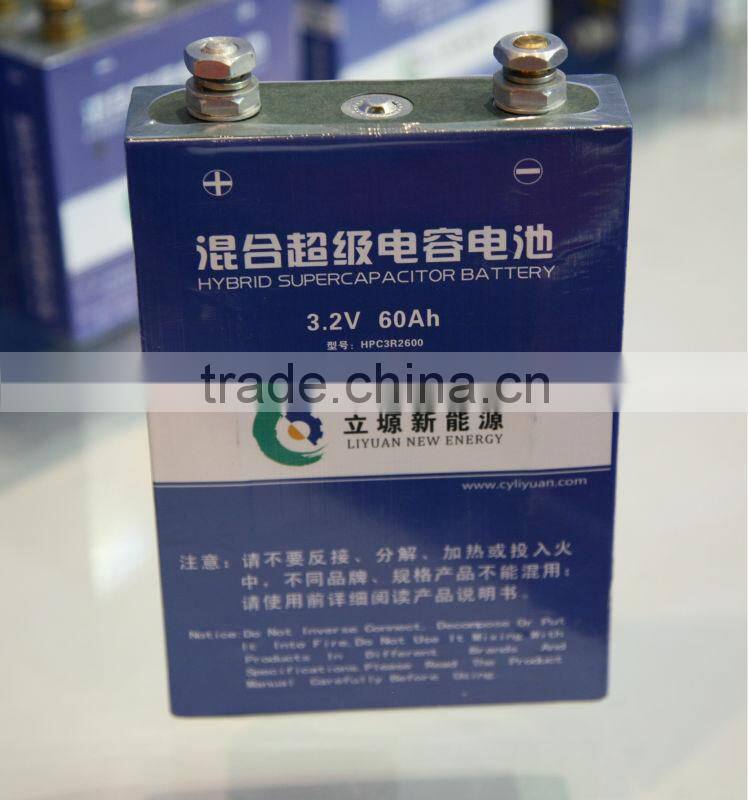

Name:3.2 V, 60Ah lithium ion battery cell

Dimension: 36*130*185mm (aluminum case)

Technical parameters:

Model	HP-NP-3R2-600
Rated voltage(V)	3.2
Rated Capacity( Ah)	60
Internal resistance(M Ω )	-0.8
Weight Energy Density(Wh/kg)	~120
Volumn energy density(Wh/L)	-240
Power Density(W/kg)	≥ 2400
Continuous Discharge current	10C
10s Max. discharge current	25C
Charge cut-off voltage	3.6
Discharge Cut-off voltage	2.5
Standard charging(CC-CV)	1C
Fast charging (CC-CV)	2C
Charge working Temp.( ° C )	0~55
Discharge working Temp.( ° C)	-30-+70
Storage humility range(RH)	≤ 85%
Storage pressure range(MPa)	0-0.1
Cycle life (DOD)	5000
self discharge rate 15-25°C (30 days)	≤1.5%
weight(g)	~1730

Life Cycle: ≥ 3000 times

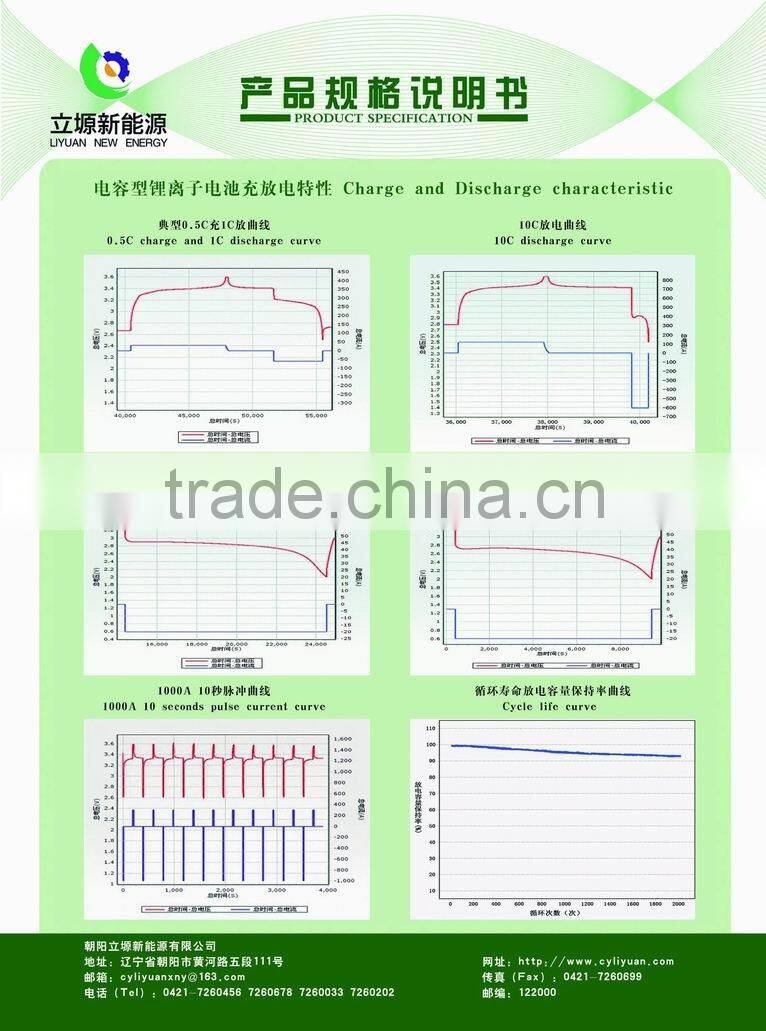

Charge and Discharge characters:

Application:Pure & Hybrid Ev, Electric bus,Energe storage system,military industry telecom ect.

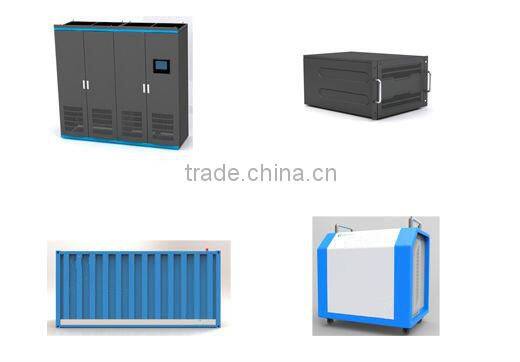

Energy Storage System

Certifications:

Factory direct sale with high quality and most favorable price, Welcome to visit our factory.

Warranty Period: 18 monthes.

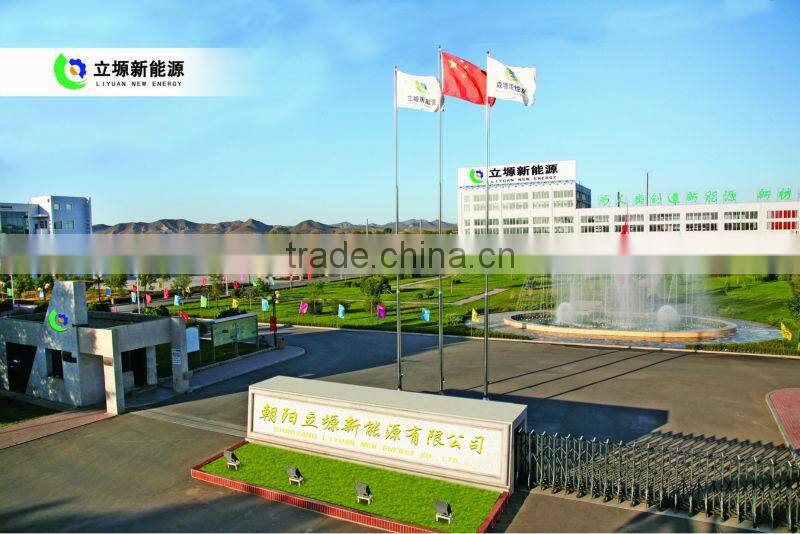

Liyuan New Energy Co.,Ltd.

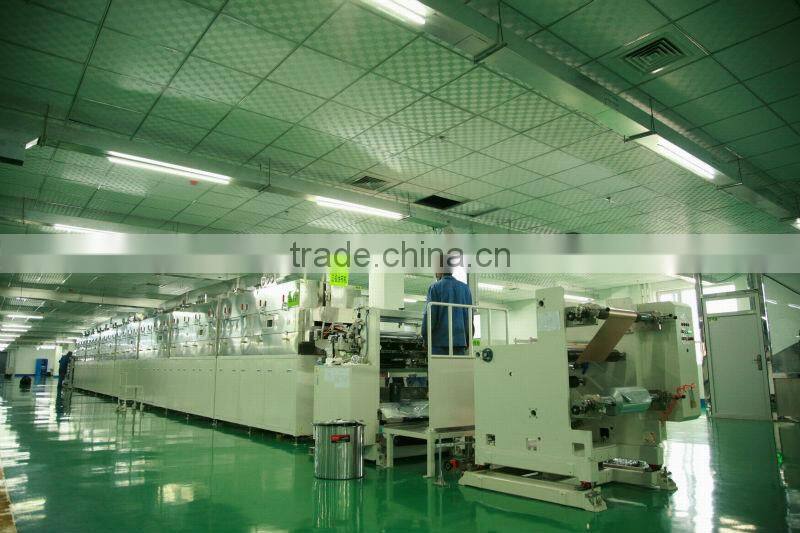

Chaoyang Liyuan New Energy Co.,Ltd. is a high-tech enterprise which was established in 2009. It integrated with research, development, production and sales of supercapacitors and high performance power batter. It is also the leading enterprise in Liaoning(Chaoyang)New Energy Electrical (Supercapacitor) industrial base.

Supercapacitor Li*ion Battery Produced by Liyuan company with independent patent technology. to achieve complementary advantages of supercapacitor's high power, long cycle life, high-rate in charge and discharge, wider temperature range, safety features and large capacity features of ithium ion battery; liyuan company has declared 35 national patents and 27 of them have been authorized, include two core invention patents,Liyuan products have been verified by "863" Plans Electric Vehicle Battery Test Center(Beijing 201 Bureau), and also passed Scientific and Technological Achievement Appraisal which held by Science and Technology Bureau of Liaoning Province.

Supercapacitor Li-ion Battery has the features of high power density,energy density,long cycle life,short charging time, excellent temperature characteristics performance and etc. Product applications involving many areas of electric vehicles, heavy construction machinery, ,military defence, power supply,photovoltaic, wind power, UpS, energy storage like Smart Grid System and etc. Supercapacitor Li-ion Battery obtained more than 120 domestic and foreigh customers' approval, and have been exported to more than 21 countries and regions which include United States, Canada, Italy, France,Germany, Russia, Korea, India,Taiwan and etc.
