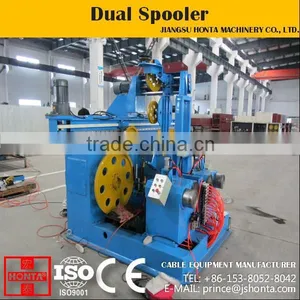

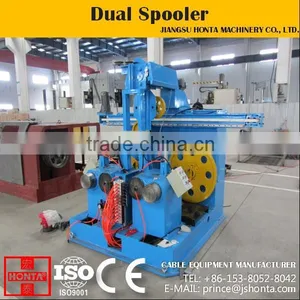

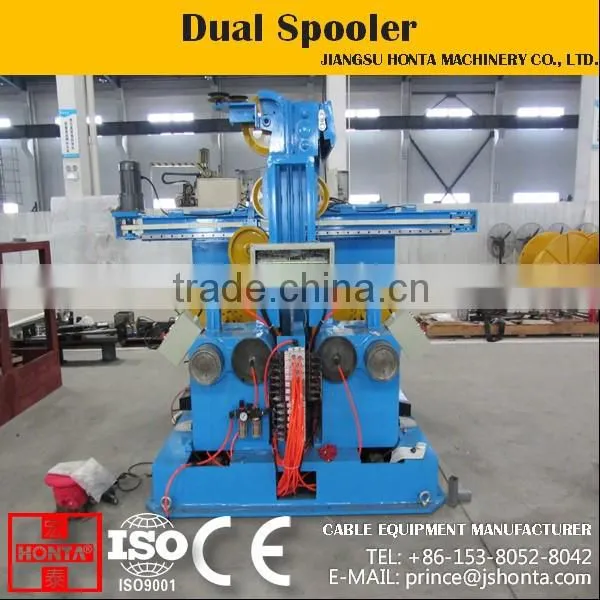

This series of DUAL DYNAMIC SPOOLERS are used to wind SOFT COPPER or ALUMINIUM wires of 1.00~3.50 mm dia. onto 500~630 mm cable spools high efficiently for easy packing and delivery, ensuring long-term storage and good protection during transportation. Other equipments, i.e. wire drawing machines, annealers, tinning machines, pay-offs and take-ups, are also available to compose a complete line for wire cable production. For any special requirements, you may contact us directly for further confirmation.
We have a series of DUAL DYNAMIC SPOOLERS to satisfy your diversified demands. You can always find what you prefer:
DESCRIPTION |
DYNAMIC SPOOLERS |
||||
HT MODEL NO. |
HT-630A |
HT-630B |
HT-630D |
HT-630S |
HT-800D |
MACHINE SPEED MAX. |
1800m/min |
||||
WIRE RANGE |
0.40~2.00mm |
0.40~2.00mm |
0.40~2.00mm |
1.00~3.50mm |
0.40~2.60mm |
BOBBIN SIZE |
500~630mm |
500~630mm |
500~630mm |
500~630mm |
800mm |
MOTOR POWER |
11kW AC |
11kW AC |
11kW AC |
2*22kW AC |
37kW AC |
MAX. LOADING CAPACITY |
500kgs |
500kgs |
500kgs |
500kgs |
1000kgs |
TRAVERSE TYPE |
Traverse to and fro by AC servo motor along ball screws |
||||
Power Supply
^ 3-phase voltage ~3×380VAC (±10%)
^ Single-phase voltage ~220VAC (±10%)
^ Frequency 50Hz (±2%)
Note: if the power supply is different from your system, please advise us.
This MACHINE or PRODUCTION LINE that you ordered will be well packed on steel pallets in containers, suitable for long distance ocean freight transportation and the change of climate, and well protected against moisture and shocks.
