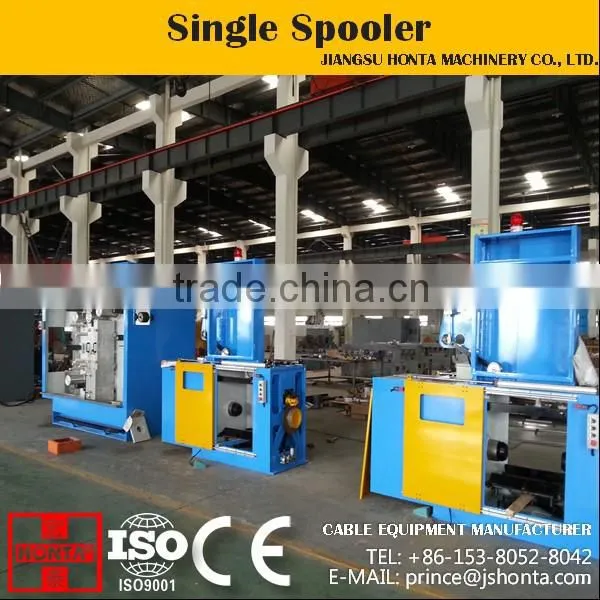

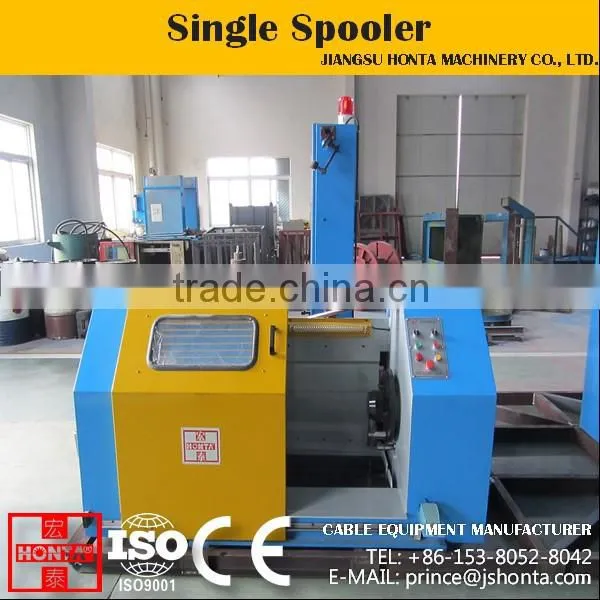

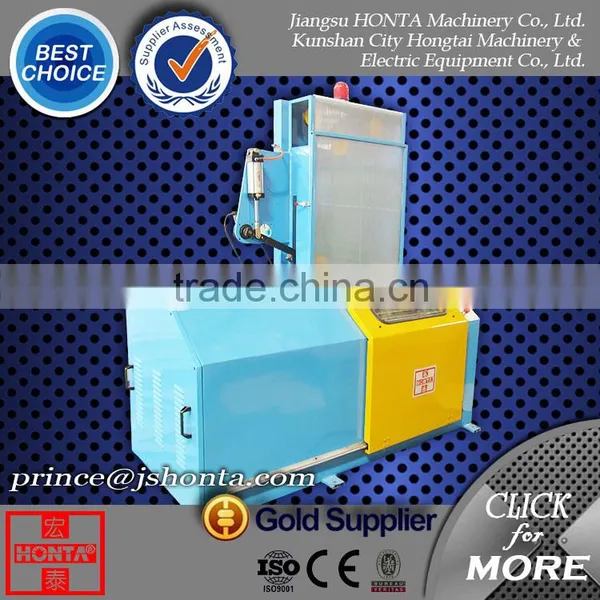

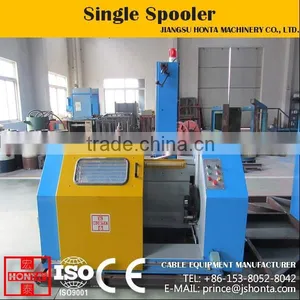

HT-630A Single Dynamic Spoolers for Wire Drawing Lines Manufactured By Jiangsu Kunshan HONTA Machinery
| Application of This Product |
This series of SINGLE DYNAMIC SPOOLERS are used to wind SOFT COPPER or ALUMINIUM wires of 0.40~2.00 mm dia. into cable spools high efficiently for easy packing and delivery, ensuring long-term storage and good protection during transportation. Other equipments, i.e. wire drawing machines, annealers, tinning machines, pay-offs and take-ups, are also available to compose a complete line for wire cable production. For any special requirements, you may contact us directly for further confirmation.
*
| Technical Data |
We have a series of Single Dynamic Spoolers, equipments and complete production lines of this kind to satisfy your diversified demands. You can always find what you prefer:
Description |
Dynamic Spoolers |
||||
Model No. |
HT-630A |
HT-630B |
HT-630D |
HT-630S |
HT-800D |
Machine Speed Max. |
1800m/min |
||||
Wire Range |
0.40~2.00mm |
0.40~2.00mm |
0.40~2.00mm |
1.00~3.50mm |
0.40~2.60mm |
Bobbin Size |
500~630mm |
500~630mm |
500~630mm |
500~630mm |
800mm |
Motor Power |
11kW AC |
11kW AC |
11kW AC |
2*22kW AC |
37kW AC |
Max. Loading Capacity |
500kgs |
500kgs |
500kgs |
500kgs |
1000kgs |
Traverse Type |
Traverse to and fro by AC servo motor along ball screws |
||||
Power Supply
- 3-phase voltage ~3×380VAC (±10%)
- Single-phase voltage ~220VAC (±10%)
- Frequency 50Hz (±2%)
Note: This is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.
*
| Find More Wire Drawing Machines and Cable Making Equipment within Our Scope of Supply |
|
|
|
|
|
|
Multiwire Drawing Line Series Cu: Inlet: 1.60~2.60mm Outlet: 0.15~1.35mm Multiwire Drawing Lines *16-wire *8-wire *4-wire |
Rod Breakdown Line Series Cu: Inlet: 8.00mm Outlet: 1.20~3.50mm Copper Rod Breakdown Drawing Lines Al: Inlet: 9.50mm Outlet: 1.20~4.50mm Aluminum Rod Breakdown Drawing Lines Cu & Al: Inlet: 6.00~12.50mm Outlet: 1.00~4.50mm Individual Drive Rod Breakdown Drawing Lines
|
Intermediate Wire Drawing Line Series Cu: Inlet: 2.50~3.00mm Outlet: 0.40~1.60mm *Copper Intermediate Wire Drawing *Large-Medium Wire Drawing Al: Inlet: 2.60~4.00mm Otlet: 0.80~2.00mm *Aluminium Intermediate Wire Drawing Machine
|
Fine Wire Drawing Machine Series Cu: Inlet: 0.50~1.60mm Outlet: 0.08~0.68mm *Copper Fine Wire Drawing Machines *Fine Drawer With Annealer and Spooler *Fine Drawer With Automatic Spoolers Al: Inlet: 0.50~2.30mm Outlet: 0.15~0.70mm *Aluminum Fine Wire Drawing Machines |
Wire Coating Line Series Electroplating Lines *Sn-Tin *Ag-Silver *Ni-Nickle *Zn-Zinc Annealing & Tinning Lines |
|
|
|
|
|
|
Stranding & Bunching Series Twist Bunching Machines 500P, 630P, 800P 1000P, 1250P |
Extrusion Line Series Extrusion Lines *70/35 Extrusion Line *90/50 Extrusion Line |
Pay-Off Series Motorised Wire Pay-Off Stands
|
Take-Up Series Compact Spoolers Single Spoolers Dual Spoolers Basket Down Coilers |
Auxiliaries Cold Welders Powder Filters Threading & Pointing Machine Coil Packing Machines Spools, Bobbins, Reels
|
*
