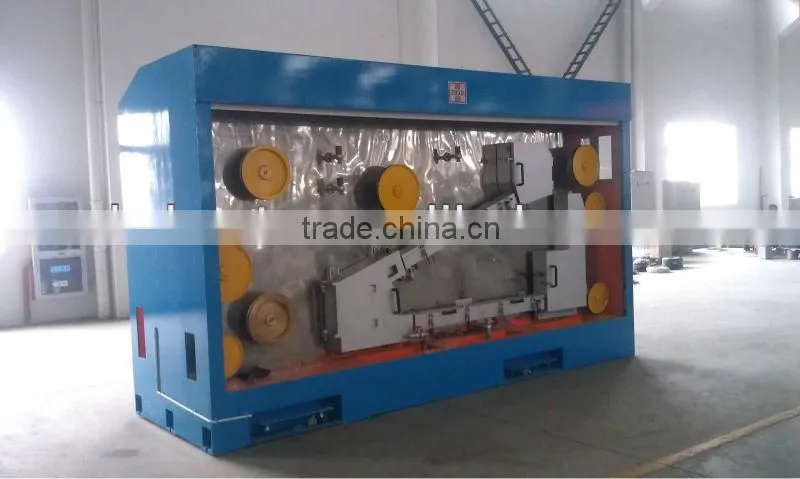

Rod Breakdown Drawing Machine Aluminum Cable Wire Making Equipment

Name: Rod Breakdown Drawing Machine Aluminum Cable Wire Making Equipment
Brand: HONTA
SKU: 111667719

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

HONTA

Model Number:

HT-450-13D

Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HONTA

Model Number HT-450-13D

Usage Drawing

Technical Data of Rod Breakdown Machine for Aluminum
Machine model	HT- 450-13D	HT- 450-11D			HT-450-9D
Drawing Line Speed (mpm/min)	1500 mpm/min	1200mpm/min			1000mpm/min
Drawing Dies NO./Max	13	11			9
Wire Inlet Dia.(mm)	9.5	9.5			9.5
Wire Outlet Dia.(mm)	1.7-4.8	2.0-4.8			2.2-4.8
The fast Die Change System	The function of dies fast changed. Establish the production specification or selecting the NO. Of dies. The computer calculates automatically. After setting the transmission coefficient, the machine fetches automatically
Control System	human-machine interface + PLC control
	All alarm and parameter can be controlled and displayed on the touch screen.digital control for motor are available for computer operation.
Motor Control	DC motor control
Transmission Type	by precision ground helical gears
Slip Ratio of M/C	1.238	1.238		1.238

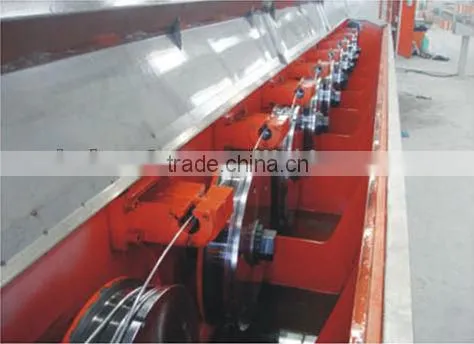

Capstan	multi-step type replaceable and tungsten carbide coated on the capstan
Capstan Dia.(mm)	450	450		450

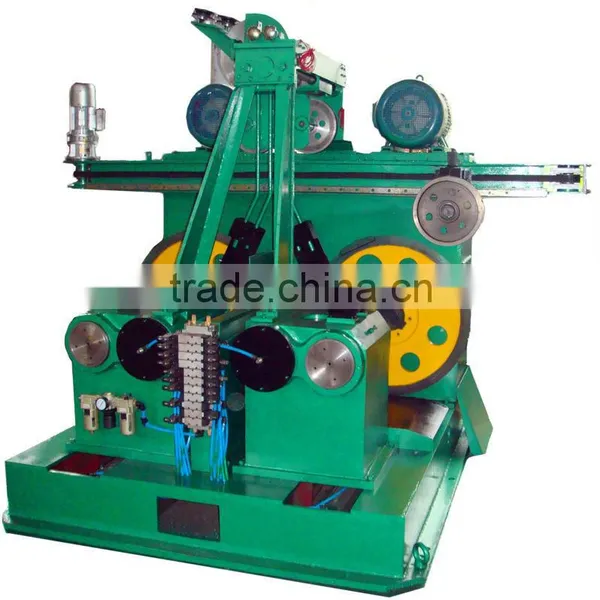

Take-up Type	dual bobbin auto-spooler 500-630mm/Max
Main Motor	DC280KW(315KW)	DC250KW(280KW)		DC250KW
Capstan Motor	DC75KW	DC75KW		DC75KW
Take-up Motor	Double take up DC30KW X 2
Lubrication Type	bath lubrication
Lubrication Type for Bearing	by enforced oil pump
Power	3 X380V 50/60Hz
Machine Size	23620mm×4500mm×4400mm	21620mm×4500mm×4400mm	18620mm×4500mm×4400mm
