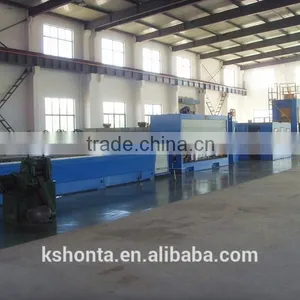

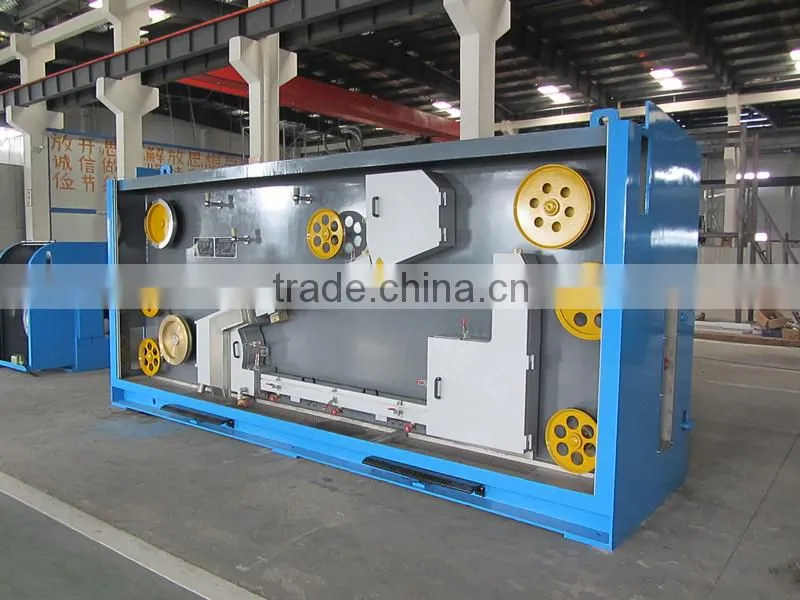

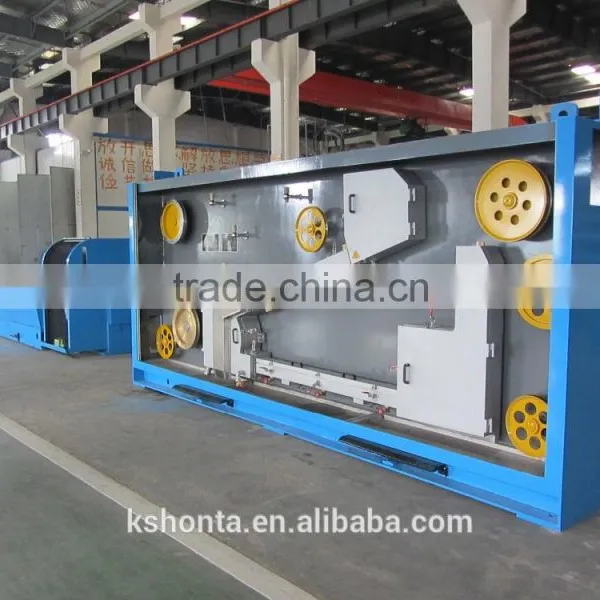

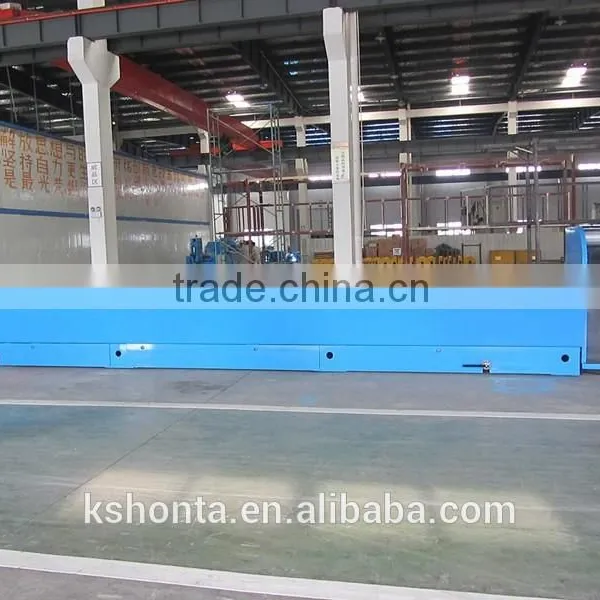

copper/aluminium rod breakdown machine/EDM Wire Making Machine

Machine Model

HT-450-13D

Drawing Speed (rpm)

1500 rpm/min

Drawing Dies no./max

13

Wire Inlet Dia.(mm)

8

wire outlet dia.(mm)

1.2-3.5

Fast Die Change System

Set the outlet Dia. or selecting the die number. The computer calculates automatically. After setting the transmission coefficient, the machine drawing and rewinding automatically and synchronously

Control System

human-machine interface + PLC control

All alarm and parameter can be controlled and displayed on the touch screen, digital control for motor are available for computer operation.

Motor Control

DC motor control

Transmission Type

by precision ground helical gears

Slip Ratio of M/C

1.278

Capstan Dia.(mm)

φ 450

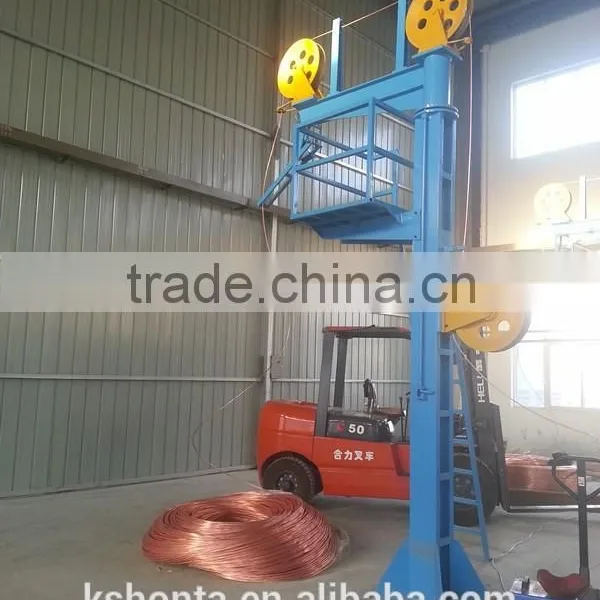

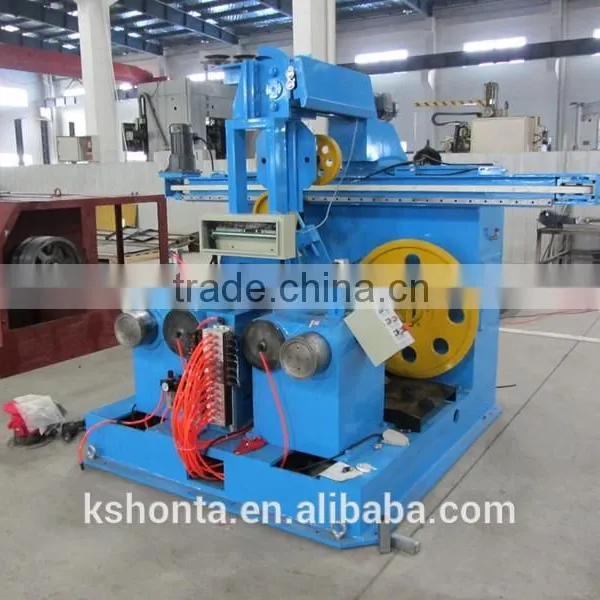

Take-up Type

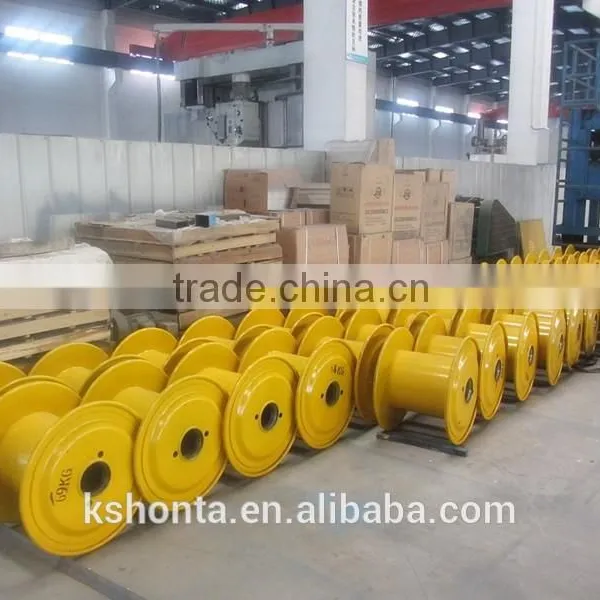

Double spooler, bobbin type φ 500-φ 630 mm/max

Down Coiler DC 15KW and AC 15KW

Main Motor

DC 280KW

Capstan Motor

DC 75KW

Take-up Motor

Double Take-up DC30KW X 2

Down Coiler DC 15KW or AC 15KW

Lubrication Type

bath lubrication

Lubrication for Bearing

by oil

Continuous Annealer

DC5000A

Annealing Voltage

DC55V

Power supply

3 X380V 50HZ

Machine Size

28220mm×4500mm×4400mm
