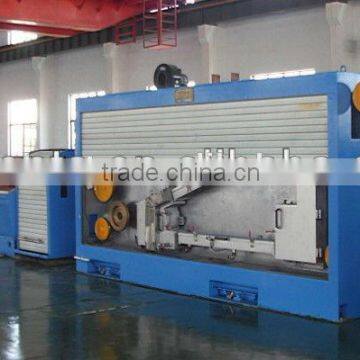

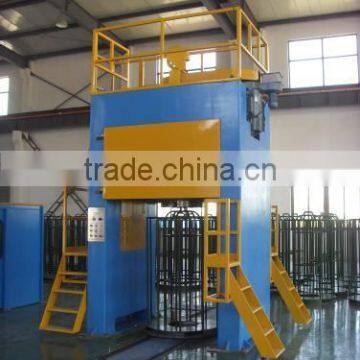

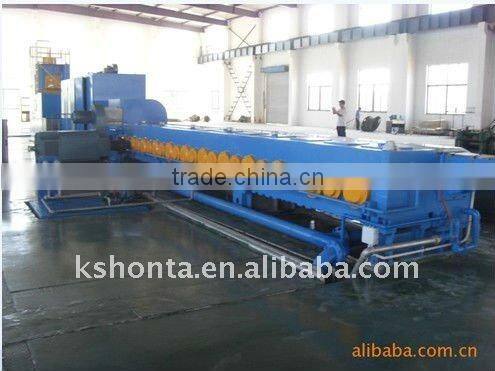

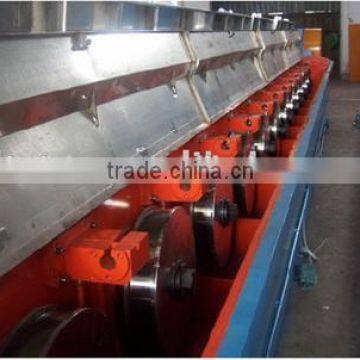

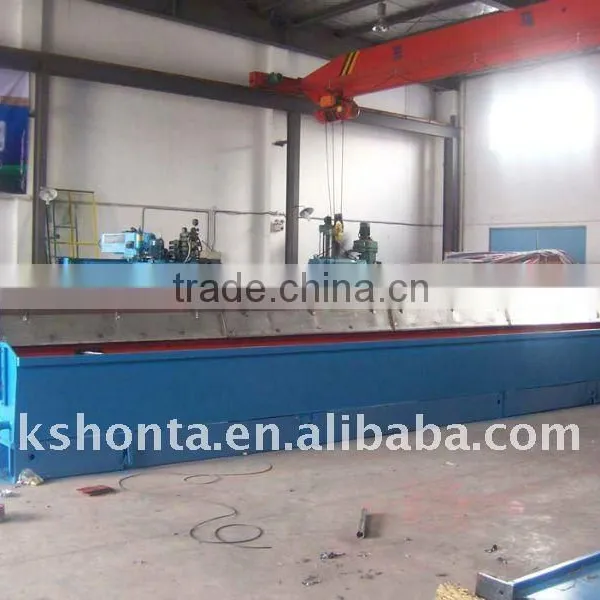

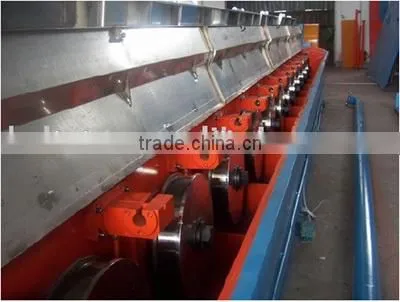

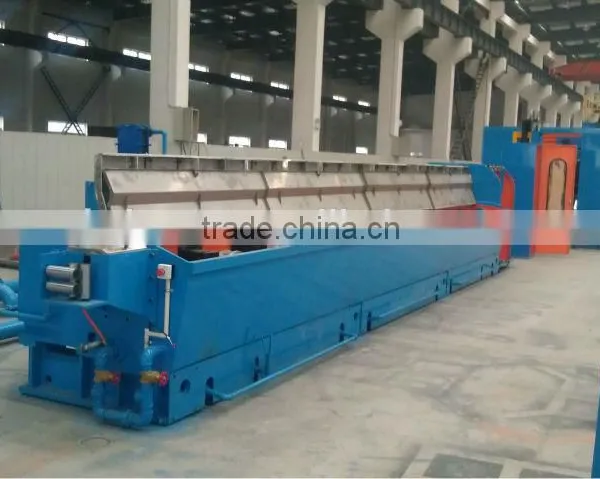

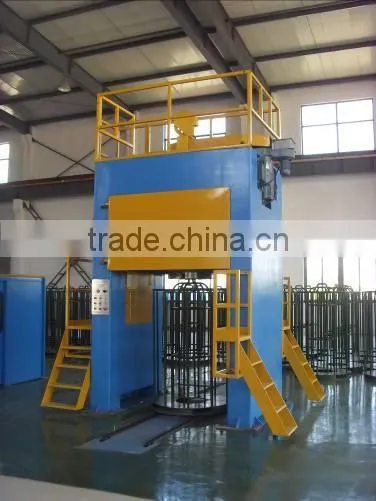

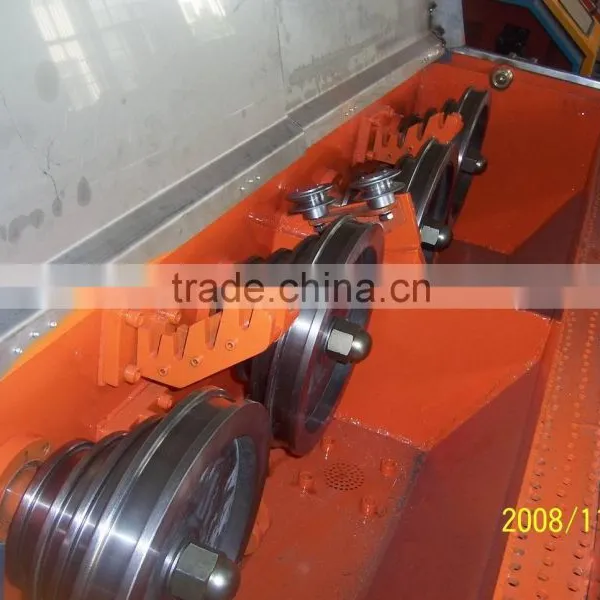

Help CenterCopper Rod Breakdown Machine Electric Wire and Cable Making Machine (China Factory, ISO,CE)
Related Products
-
Heavy-Duty Aluminum Wire Drawing MachineNegotiableMOQ: 1 Set -
Heavy-Duty Copper Wire Drawing MachineNegotiableMOQ: 1 Set
-
Wire Coiling MachineNegotiableMOQ: 1 Set
-
HT-400-7DT Copper Wire Rod Breakdown MachineNegotiableMOQ: 1 Set
-
Copper Rod Breakdown Machine Straight Line Wire Drawing MachineNegotiableMOQ: 1 Set
TECHNICAL SPECIFICATIONS of ROD BREAKDOWN MACHINE (Electric wire cable making machine):
Descriptions |
Specifications |
Inlet Diameter |
Max 8.00mm |
Outlet Diameter |
1.20~3.50mm |
Mechanical Speed |
Max 25m/s |
Area Reduction |
1st~12th :1.278;13th adjustable |
Drawing Cone Diameter |
450mm |
Finished Capstan Diameter |
450mm |
Main Motor Power |
DC 280KW |
Installed power |
830KVA |
Overall Dimension of the Line:(L×W×H) |
28220×4500×4400mm |
Net Weight |
Aprox. 45000.00 KGS |
PRODUCTION SPEED:
1. 1.2mm 1200m/min ( hard wire) 1200m/min ( Annealed wire)
2. 2.6mm 800m/min (hard wire) 750m/min ( Annealed wire)
3. 3.5mm 500m/min (hard wire) 400m/min (Annealed wire)
Come on, please contact with me for more details. i will reply u as soon as possible!!!
