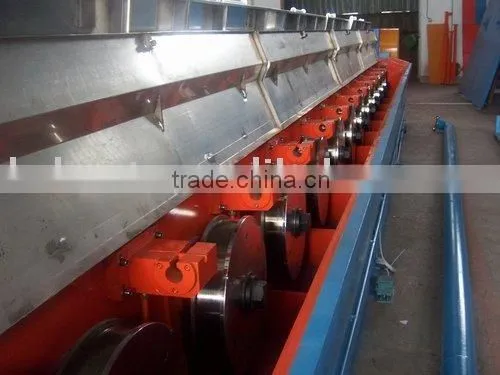

Rod Breakdown Machine for Copper

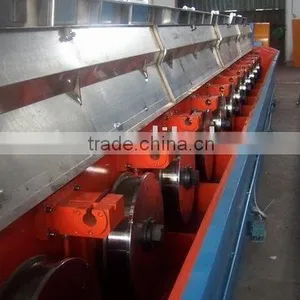

Rod Breakdown Machine for Copper thumbnail-1
Rod Breakdown Machine for Copper photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-450-13D
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-450-13D
Usage Drawing

1. Main Technical Data

Inlet wire diameter : 8.0mm

Outlet wire diameter :1.3~4.5 mm

Max. Linear speed : 25 m/s (hard wire)

Max. Drawing passes : 13

Diameter of finish capstan ; 450 mm

Speed ratio between capstans : 1.294

Max. Size of dies: 53x35 mm

Speed ratio among: 1.278 (die 2~12) for die 13 adjustable

Power of main motor : 280 kw (DC) Z4-315-12, 1000rpm

Power of motor for finish capstan : 75 kw (DC) ; type Z4-200-21

Motor for double spooler : Z4-160-31, 30 kw x2 (DC), 1500rpm

Max. Annealing current : DC 5000A

Max. Annealing voltage : DC 55V

Power of steam generator : 9kw

Length of accumulated wire : >7m

Size of take-up bobbin : PND630 & PND500

Total install power : 820KVA

Overall dimensions (LxWxH) :28220x4500x4400 mm



2.Scope of Supply

- Pay-off unit                                      1 set

- Pointing and threading machine   1 set

- Wire drawing machine                1 set

- Continuous annealer                   1 set

- Dancer (vertical)                            1 set

- Double spooler (hydraulic)         1 set

- Emulsion lubrication system for gearbox 1 set

- Electric control system                 1 set

- Steam generator                           1 set
