Rod Break Down Machine With Annealer

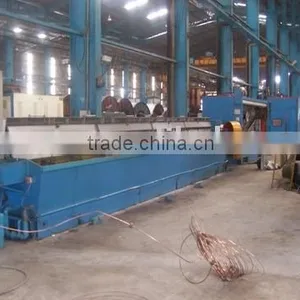

Rod Break Down Machine With Annealer thumbnail-1

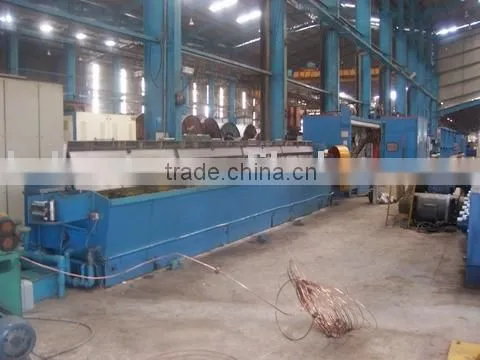

Rod Break Down Machine With Annealer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-450 -9D
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-450 -9D
Usage Drawing

Product Information
1) Machine Type: HT-450-9D
2) Inlet Wire Diameter: 8mm
3) Outlet Wire Diameter : 2.0-3.5mm
4) Number of Dies : 9 pcs
5) Mechanical speed : Max. 20m/s

6) Mechanical reduction : 1.278

7) Drawing capstan diameter : 450mm

8) Finished capstan diameter : 450mm

9) Main motor power :250KW DC

10) Finished capstan motor power: 75KW DC

11) Take-up type : 800mm coiler

12) Annealing current : DC 5000A

13) Annealing voltage : DC 55V



Annealer

Line speed : 25m/s

Max. Annealing current : 6000A

Max. Annealing Voltage : 60DCV

Diameter of contact wheel : Φ 355mm

Annealing type : resistance; 2 sections

Cooling water tank volume : About 1800L

Water consumption of heat exchanger: 30 m3/h

Power of water pump : 7.5Kw

Steam pressure required : ≥0.2 MPa

Compressed air consumption : 18 m3/h

Compressed air pressure : 0.4-0.6 MPa

Dimension : 4200×1200×2600mm



Dancer

Working Pressure : 0.6-0.7mpa
Inflate Value : ± 0.02mpa

Double Take-up:
Max Take-Up Speed : 1500m/min
Take-Up Motor :15kw(DC)
Spooler Banister Capcity: Max 2000kg
Total Weight : 7000kg
Machine Dimensions : 3000 X 2000 X 4650
