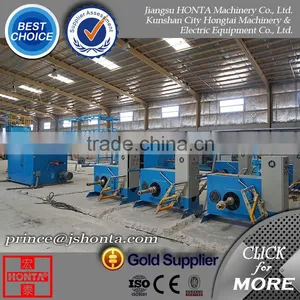

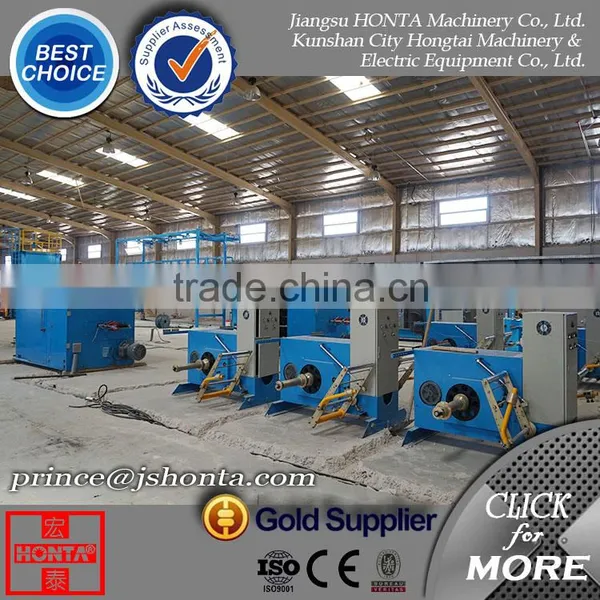

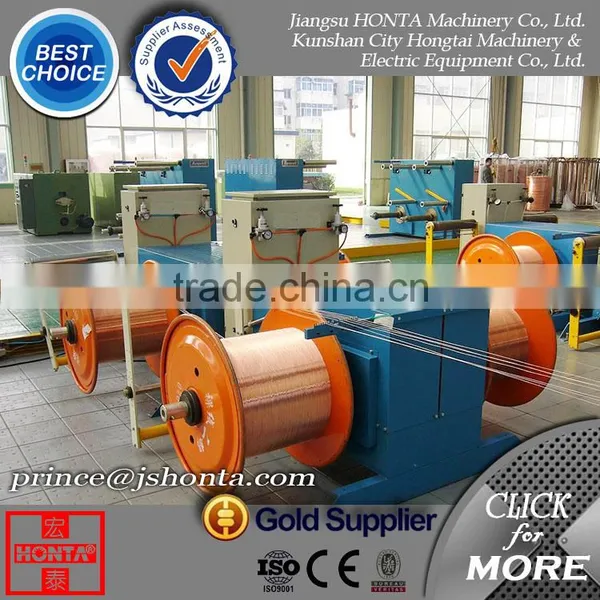

This series of MOTORIZED ACTIVE PAY-OFF STANDS are used to depool COPPER or ALUMINIUM wires automatically and high efficiently for twisting and bunching. Other equipments, i.e. wire drawing machines, annealers, tinning machines, pay-offs and take-ups, are also available to compose a complete line for wire cable production. For any special requirements, you may contact us directly for further confirmation.
We have a series of MOTORIZED ACTIVE PAY-OFF STANDS to satisfy your diversified demands. You can always find what you prefer:
DESCRIPTION |
MOTORIZED ACTIVE PAY-OFF STANDS |
||
HT MODEL NO. |
HT-630MF |
HT-630SF |
HT-800SF |
SECTIONAL AREA TWISTED |
0.50~2.50mm^2 |
||
SINGLE WIRE DIA. |
0.10~0.50mm |
||
PAY-OFF SPEED MAX. |
300m/min |
||
MAIN MOTOR POWER2 |
1.5kW AC |
2.2kW AC |
5.5kW AC |
BOBBIN SIZE |
630mm |
630mm |
800mm |
MAX. LOADING CAPACITY |
400kgs |
400kgs |
600kgs |
Power Supply
^ 3-phase voltage ~3×380VAC (±10%)
^ Single-phase voltage ~220VAC (±10%)
^ Frequency 50Hz (±2%)
Note: if the power supply is different from your system, please advise us.
