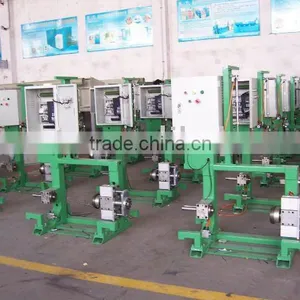

Motorized Pay-off Machine Pay-off Rack
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-630F/800F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT-630SF Motorised Pay-off Machine for Wire DrawingNegotiableMOQ: 1 Set -
HT-630F Double Motorised Pay-off StandNegotiableMOQ: 1 Set
-
HT-630SF Motorised Pay-off MachineNegotiableMOQ: 1 Set
-
HT-630F Double Motorised Pay-off StandNegotiableMOQ: 1 Set
-
Take-up(pay-off) Cable MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-630F/800F
Usage
Other, paying-off wire
Specifications
Motorized Pay-off can be put several wires, adopts cylinder to up and down the spooler, it can save labor.Part one Motorized pay-off features:
- It can be put several wires, adopting cylinder to be up and down the spooler, it saves labor.
- To use proximity switch to achieve automatically stop.
- The pay-off spooler is driven by a frequency conversion motor.
- It can sense the tension and adjust the speed of pay-off spooler automatically to achieve the purpose of putting the pay-off in balance.
Part two Motorized pay-off technical data:
Machine type |
HT-630F/800F |
Position of real |
Level |
Wire coil type |
46397/46395 |
Max flange |
Φ800mm |
Min flange |
Φ560mm |
Min barrel |
Φ250mm |
Max reel weigh with wound wire |
400kg |
Motor power |
3kw |
Max speed: 30m/min with reels having barrel Φ>450mm (Proportionally lower speed with smaller barrel) cross section(Cylinder 40mm ) |
300m/min |
Max .r .p.m. of spindle |
212 |
Max tension of wire A |
160n |
Min tension of wire B |
30n |
Wire cross section (Cylinder diameter is 40mm) |
0.34-2.5m |
Max pull of cable |
400n |
Min pull of cable |
160n |
