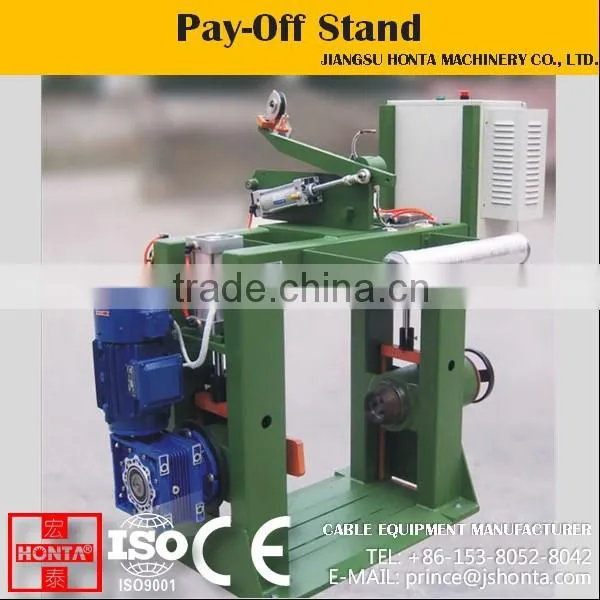

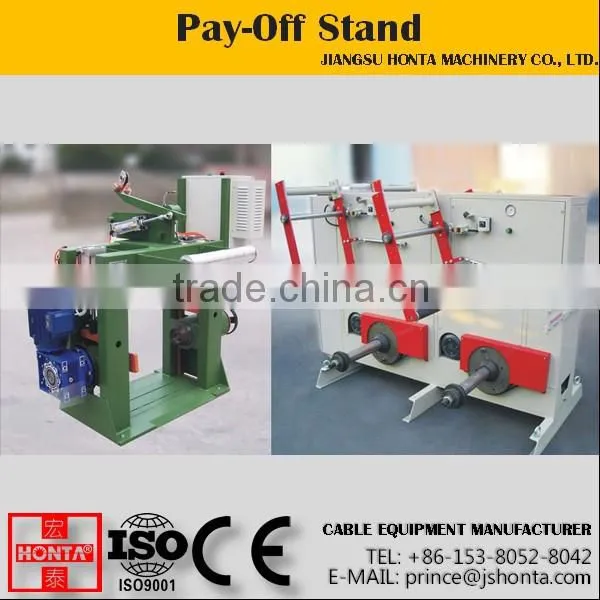

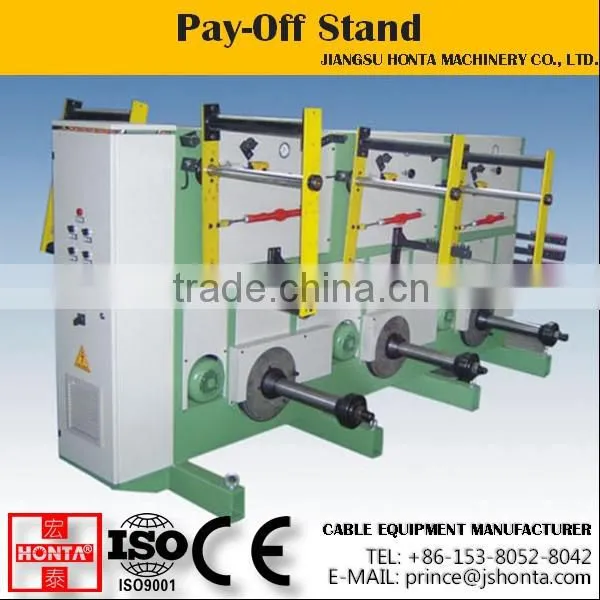

This series of MOTORIZED ACTIVE PAY-OFF STANDS are used to depool COPPER or ALUMINIUM wires automatically and high efficiently for twisting and bunching. Other equipments, i.e. wire drawing machines, annealers, tinning machines, pay-offs and take-ups, are also available to compose a complete line for wire cable production. For any special requirements, you may contact us directly for further confirmation.
We have a series of MOTORIZED ACTIVE PAY-OFF STANDS to satisfy your diversified demands. You can always find what you prefer:
DESCRIPTION |
MOTORIZED ACTIVE PAY-OFF STANDS |
||
HT MODEL NO. |
HT-630MF |
HT-630SF |
HT-800SF |
SECTIONAL AREA TWISTED |
0.50~2.50mm^2 |
||
SINGLE WIRE DIA. |
0.10~0.50mm |
||
PAY-OFF SPEED MAX. |
300m/min |
||
MAIN MOTOR POWER2 |
1.5kW AC |
2.2kW AC |
5.5kW AC |
BOBBIN SIZE |
630mm |
630mm |
800mm |
MAX. LOADING CAPACITY |
400kgs |
400kgs |
600kgs |
Power Supply
^ 3-phase voltage ~3×380VAC (±10%)
^ Single-phase voltage ~220VAC (±10%)
^ Frequency 50Hz (±2%)
Note: if the power supply is different from your system, please advise us.
This MACHINE or PRODUCTION LINE that you ordered will be well packed on steel pallets in containers, suitable for long distance ocean freight transportation and the change of climate, and well protected against moisture and shocks.
