Medium Wire Drawing Machine with Annealer:
Features:
u Driven by high precise helical gears; compulsive oil supply lubrication; low noise;
u Drawing cones are fully immersed into drawing emulsion;
u DC annealing control, speed tracks to drawing speed automatically, it can ensure uniform and
stable elongation of copper wires.
u Reasonable low elongation design to ensure production efficiency and copper wire quality;
u PID auto adjusts spooling tension to ensure constant stable tension during wire drawing machine process.
----------------------------------------------
Technical Specification:
Machine type |
HT-250-17DT |
HT-260-17D |
HT-300-17D |
HT-300-17D |
Material |
Cu |
Cu, Cu alloy, Composite Cu |
Al |
Cu |
Machine speed |
Max.1800m/min |
Max.1500m/min |
||
Inlet dia. |
2.6-3.00mm |
2.5-3.0mm |
2.6-4.00mm |
3.00-3.50mm |
Finished dia. |
0.40-1.60mm |
0.40-1.20mm |
0.80-2.00mm |
0.80-2.76mm |
No. of dies |
Max.17 |
17 (max) |
||
Drawing cone dia. |
Max.250mm |
Max.260mm |
Max.300mm |
Max. 300mm |
Capstan dia. |
250mm |
260mm |
300mm |
300mm |
Annealing current |
Max.2000A |
Max. 1500A |
Max.2000A |
Max. 3500A |
Annealing power |
170kw |
110kw |
170kw |
Max. 270KW |
Machine dimensions |
9500*3500*3400 |
12000*3500*3400mm |
||
Production speed:
|
Wire dia. (mm) |
Speed (m/min) |
Elongation |
|
Hard wire |
Soft wire |
||
0.40 |
1500 |
1400 |
≥25% |
0.80 |
1400 |
1300 |
≥25% |
1.00 |
1300 |
1200 |
≥30% |
1.20 |
1000 |
900 |
≥30% |
1.60 |
750 |
600 |
≥30% |
Wire dia.(mm) |
Speed (m/min) |
Elongation |
TR(Soft wire) | ||
1.00 |
1200 |
≥30% |
1.38 |
900 |
≥30% |
1.78 |
600 |
≥30% |
2.25 |
500 |
≥30% |
2.52 |
450 |
≥30% |
2.76 |
300 |
≥30% |
---------------------------------------------

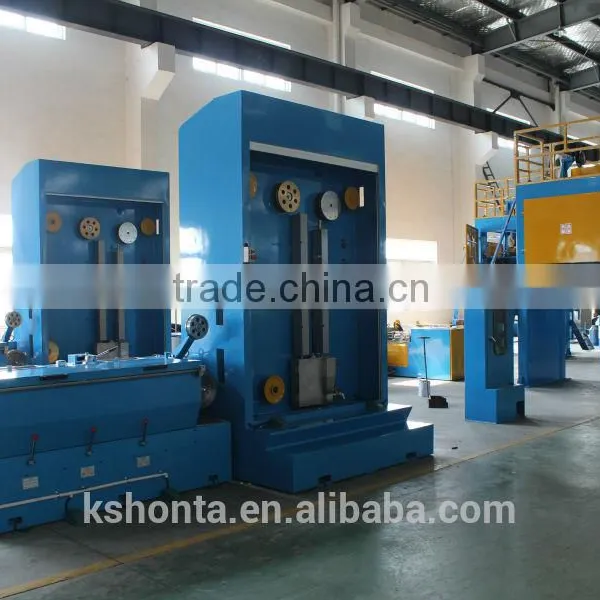

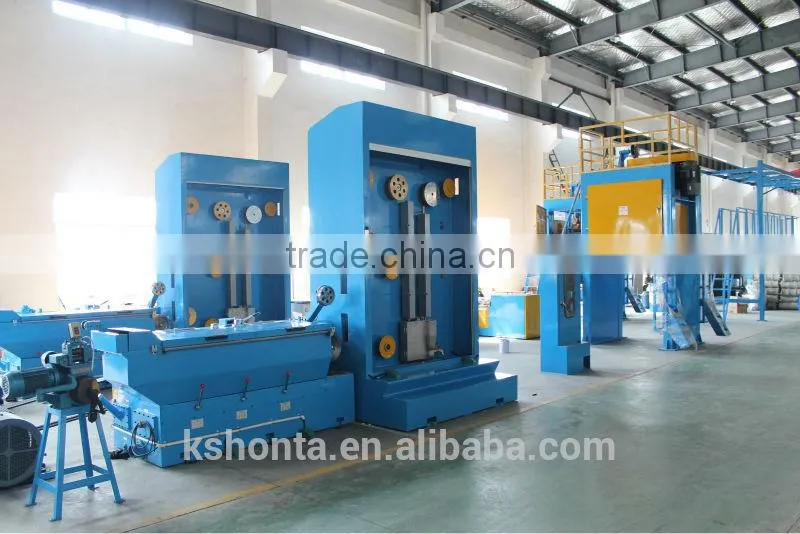

Medium Wire Drawing Machine with Annealer picture show:
Our factory show:
CE for multi wire drawing machine:
Exhibition is shanghai city:
Commissioning wire drawing machine in Turkey :
Our customers come from different countries around the world.
|
|
|
|
Multi wire drawing machine with annealer(4/8/10/16/24wires) |
8mm Rod breakdown wire drawing machine with annealer(1/2wires) |
9.5mm Aluminum Rod breakdown wire drawing machine with online annealer |
Electrolytic Tin-plating Machine(3000Sn/6000Sn/10000Sn) |
|
|
|
|
Multi wire draiwng machine with annealer(4/8/10/16/24) |
All kind of double twisting buching machine |
Extrusion machine |
Steel bobbin |
