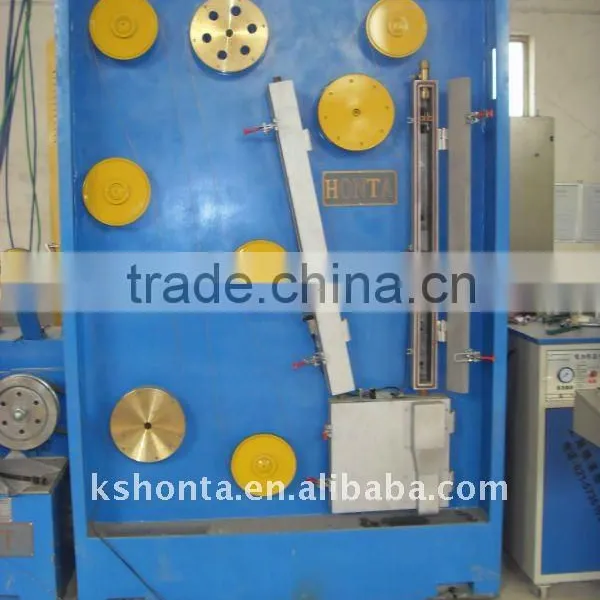

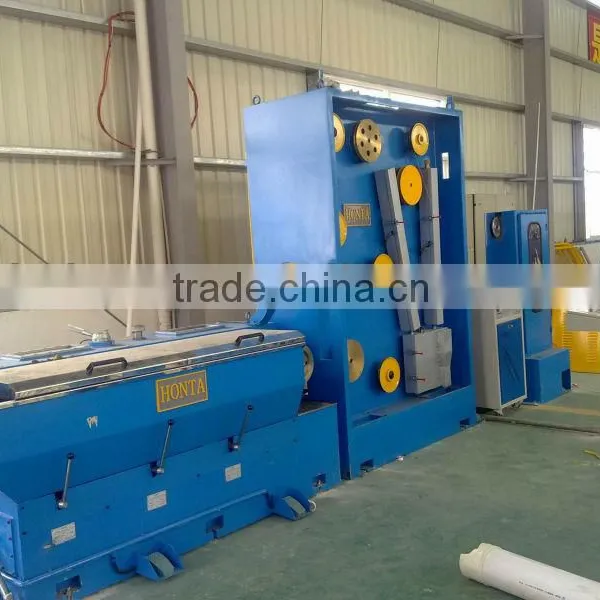

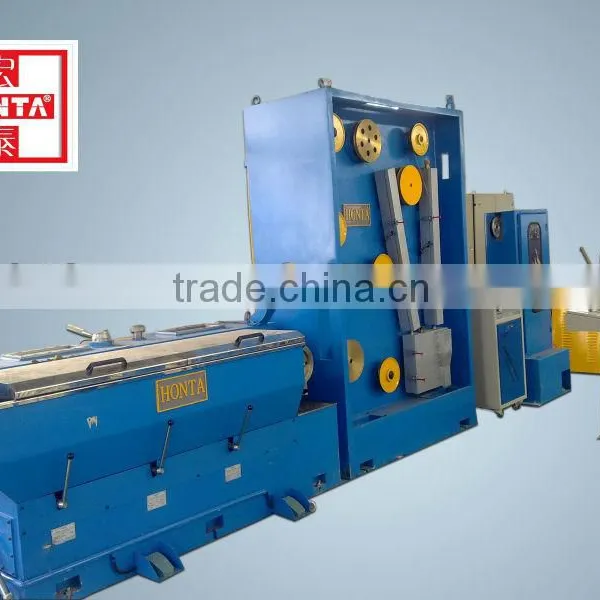

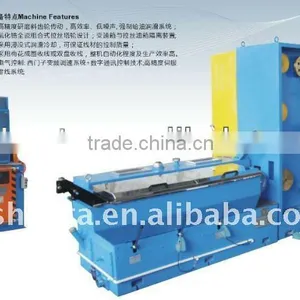

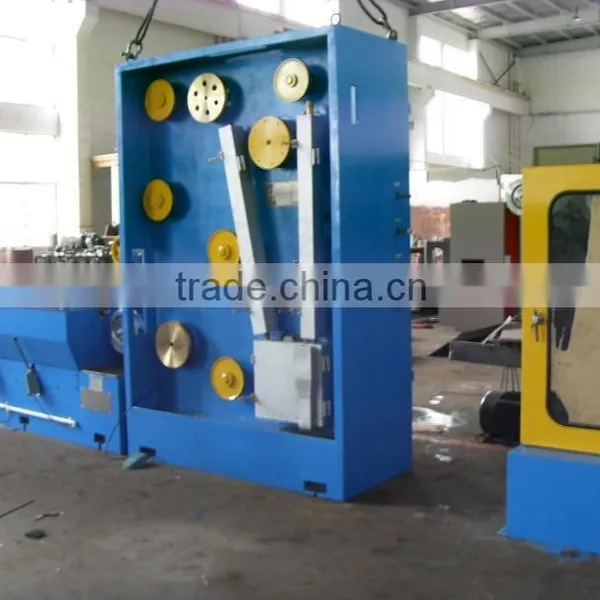

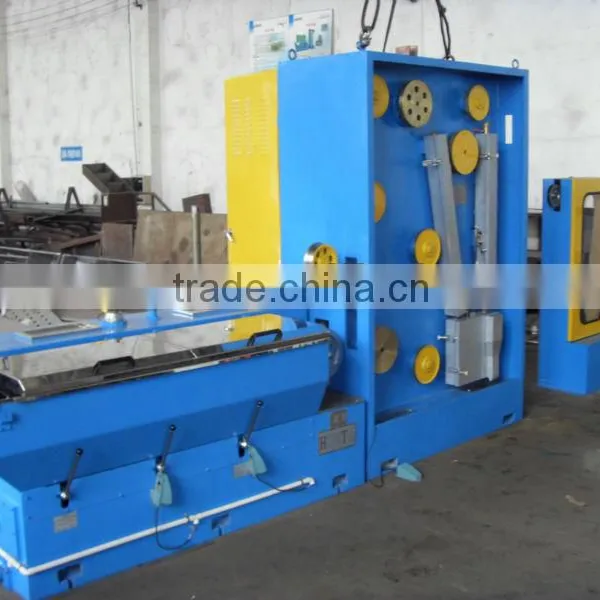

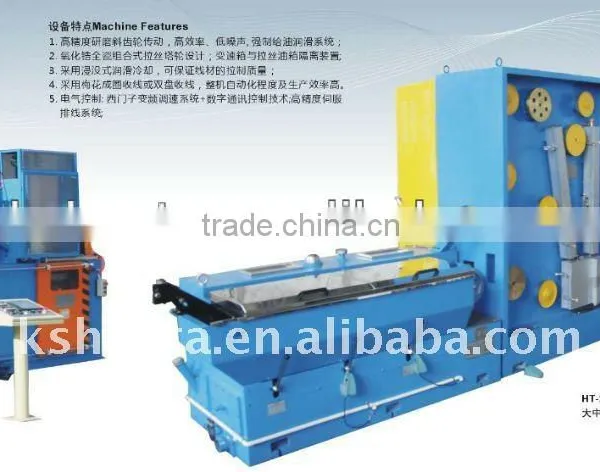

Large & intermediate wire drawing machine electric wire machine

Specifications

Large and Intermediate wire drawing machine:Adopt precisely ground gears for all transmission system.

 Description of HT-280-13DT intermediate wire drawing machine:







1.Component of large & intermediate wire drawing machine with annealer



•
  • HT-280-13 Wire drawing machine                                                      1set
  • HT-3500 Annealer                                                                            1set
  • HT-250 Tension controller                                                                 1set
  • HT-630A Fluid pressure type spooler take-up machine                      1set
  • Electric control system                                                                     1set
  • Foundation layout plan (include: water, electricity, gas connection indication graph)   1 copy

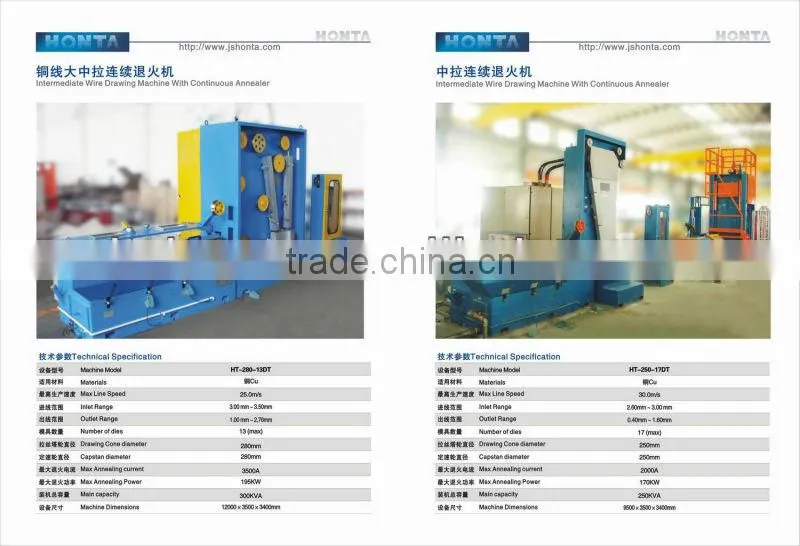

2.Technical data of wire drawing machine:







NAME	DATA
	HT-280-13
Inlet wire diameter	max  4.5 mm
Outlet wire scope	0.8-2.76 mm
Machinery speed	max  1500 m/min
Quantity of moulds	max 13
Exterior diameter of mould	Φ25 X 10mm or Φ32 X 10mm
Machinery extensibility	Sizing mould is 18.6%, others are 25%
Diameter of drawing drum	max  280 mm
Diameter of constant speed wheel	280 mm
Power of drawing main motor	AC 55kw
Material of drawing drum and constant speed wheel	Spraying tungsten oxide and zirconia on the surface
Exterior size of drawing machine mm     L×W×H	2400×1070×1400mm
Weight	3200
