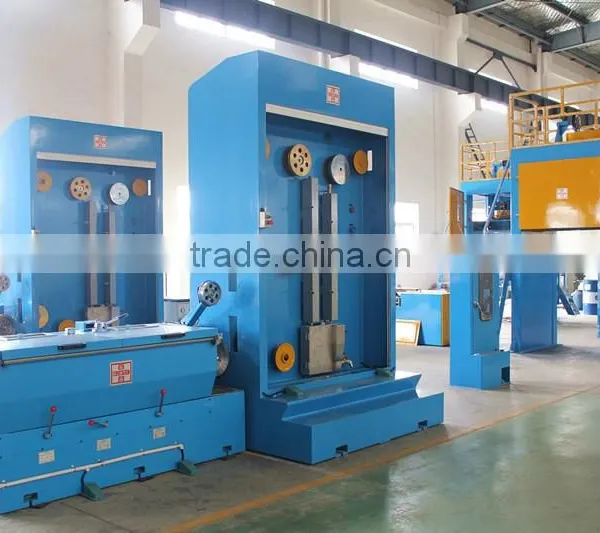

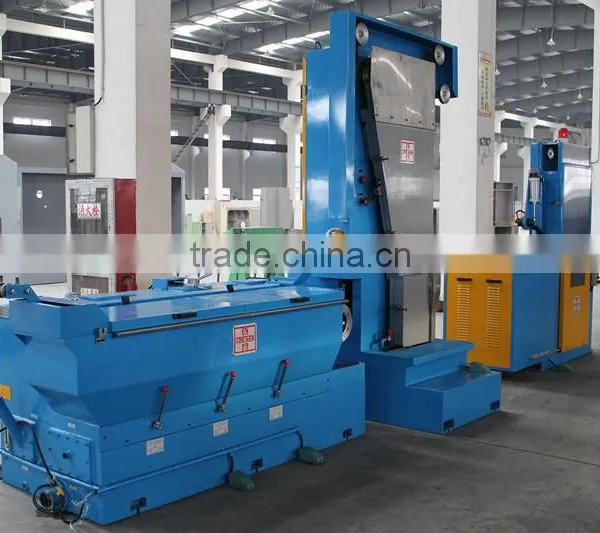

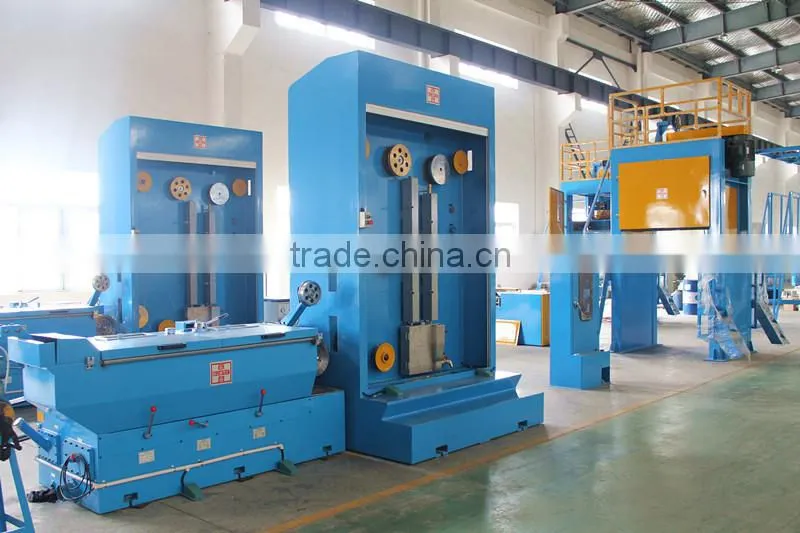

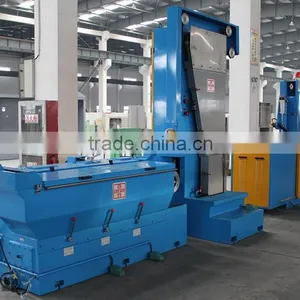

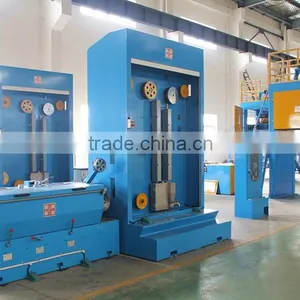

SUPER INTERMADIATE WIRE DRAWING MACHINE & CABLE MAKING MACHINE FEATURES
The Drawing Machine for Copper Wires is used to draw Φ3.0mm copper wire into φ0.4 - 1.6mm.
The line is consisted of the following main parts, i.e. the drawing machine, the annealer and the spooler, emulsionsystem, tooth wheel lubricating system, electrical control cabinet.
Production efficiency
Inlet wire dia.: 3 .00mm |
Outlet wire dia.: 0.40mm-1.60mm |
||
Wire Diameter. |
Line speed (with annealing) |
Elongation |
|
Φ 0.60 mm |
at v =25.0m/s |
≥30% |
|
Φ 0.80 mm |
at v =22.0m/s |
||
Φ 1.00mm |
at v =18.0m/s |
||
Φ 1.20 mm |
at v = 12 m/s |
||
Φ 1.60 mm |
at v =8.5m/s |
||
Kind Note
In order to help you find the correct machine and give you the best purchase scheme,pls provide the below information at least:
1)What's the material you want to produce,copper or aluminium?
2)The local power supply
3)The inlet/input diameter of the raw material rod
4)The outlet/finished diameter range of the wire you want to produce
5)What's the machine you want to buy,just one or totally line?
|
|
|
|
|
copper rod breakdown machine aluminum rod breakdown machine |
16 multiwires drawing machine 8 multiwires drawing machine 4 multiwires drawing machine |
intermediate wire drawing machine |
fine wire drawing machine |
