Medium Wire Drawing Machine With Annealer/intermadiate Drawing Machine

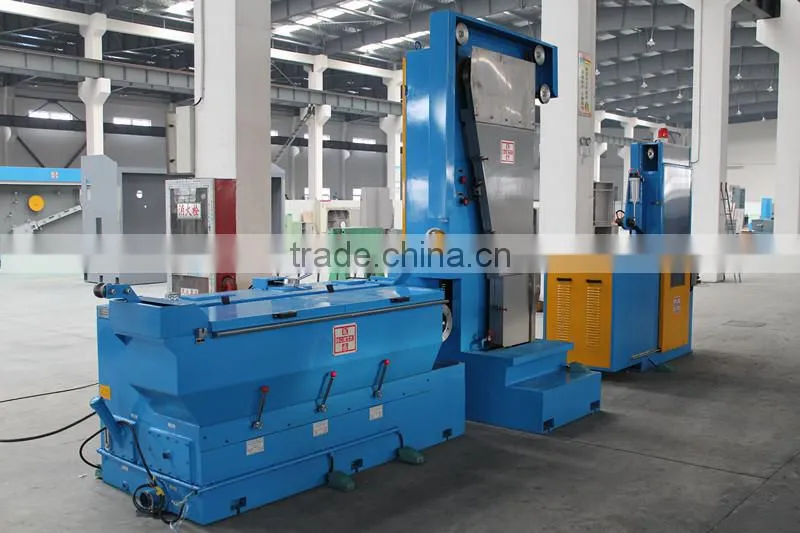

Medium Wire Drawing Machine With Annealer/intermadiate Drawing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-250-17D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-250-17D
Usage Drawing



Product Description

- Ahorizontal and tandem construction driven by double motors to achieve fast die change

- A helical gear with high accuracy to ensure high efficiency and low noise.

- An immersion lubricating and cooling system to ensure better quality .

Technical specification:



1. Drawing machine:

Inlet wire diameter                          2.6-3.5mm

Outlet wire diameter                       04-1.2mm

 Max. Line speed                             35 m/s

Max. Drawing passes                      17

Diameter of finish capstan               250 mm

Speed ratio between capstans       1.265

Max. Size of dies                             25x10 mm

Speed ratio among:                        1.25 , 1st~16th dies;

                                                       1.186, 17th die

Power of main motor                       55kw; AC

Total install power                          300KVA



2. Online annealer:

Rated DC Annealing Current                     2000A

Maximum DC Annealing Voltage                60 V

Annealing Capacity                                   170KVA

Protection                                                  by steam

Weight                                                       About 1800 kgs

Drive                                                          by the flat belt from the finished capstan

Compressed Air:

Working pressure                                      0.6 ~ 0.7Mpa

Fluctuating value                                         ±0.02Mpa

Dew point                                                    -25°C

Flow rate                                                     50L/min

Water quality:

Pressure                                                      0.2~0.4Mpa

Temperature                                                ≤25°C

Hardness of Water for Steam Generator     Max 5 dH

Hardness of Water for Annealer                  Max 12 dH



3. Spooler:

Max rotate Speed                            1800 r/min

Max. movable distance of the shaft   150 mm

Max. travel distance of bobbin lifter   150mm

Spooling motor                                   11kW;1500r/min

Traverse motor                                  servomotor 1KW  3000r/min

Bobbins                                              DIN 630

Brake                                                hydraulic type, emergency stop within 5 seconds;

Bobbin loading and unloading           by hydraulic liftor;

Wire traverse speed                         automatically detect the changes of the speed
