Intermediate Wire Drawing Machine With Continious Annealer
Structure
HT-250-17DT Drawing Machine for Copper Wires is used to draw Φ3.5mm copper wire into φ0.4 - 1.6mm.
The line is consisted of the following main parts, i.e. the drawing machine, the annealer and the spooler, emulsion system, tooth wheel lubricating system, electrical control cabinet.
Wire run
Wire supplied from the basket pay-off, drawn by the drawing machine, via the annealer, finally rewinded on PND 630/500 bobbins by the double take-up.
TECHNICAL DATA
Application : high quality copper wires,
Inlet diameter : Max.Φ 3.5 mm
Outlet diameter : Φ0.4-Φ 1.6mm
Drawing speed : max 1800m/min
Drawing passes : max 17
Exterior diameter of dies : Φ25mm &.Φ32mm
Area reduction : the final die is 18.6%, others are 25%
Diameter of drawing capstan : Max. Φ250mm
Diameter of finished capstan : Φ 250mm
Power of drawing main motor : AC55 kw
Installed power : 330 kVA
Normal electricity consumption : approx. 360 kWh
Cooling water consumption : approx. 25 m3 /hr
Compressed air :12 -18 m3 /hr
Bobbin for spooler : PNDΦ630×Φ355×400mm
PNDΦ500×Φ280×315 mm
( Drawings shall be provided by users)
Pictures:

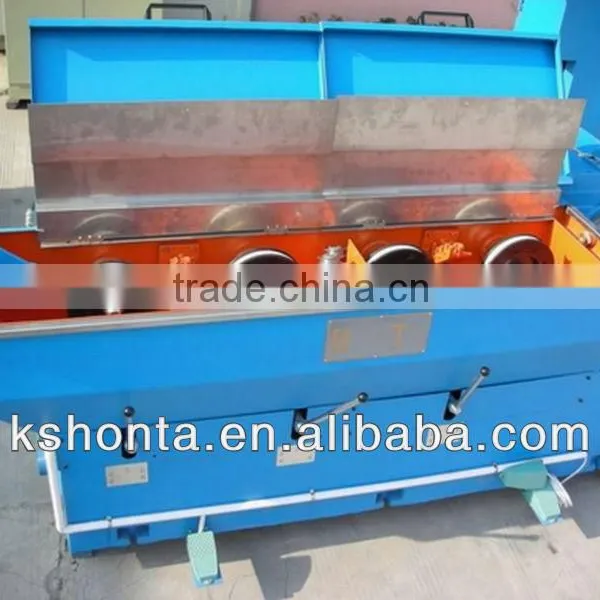

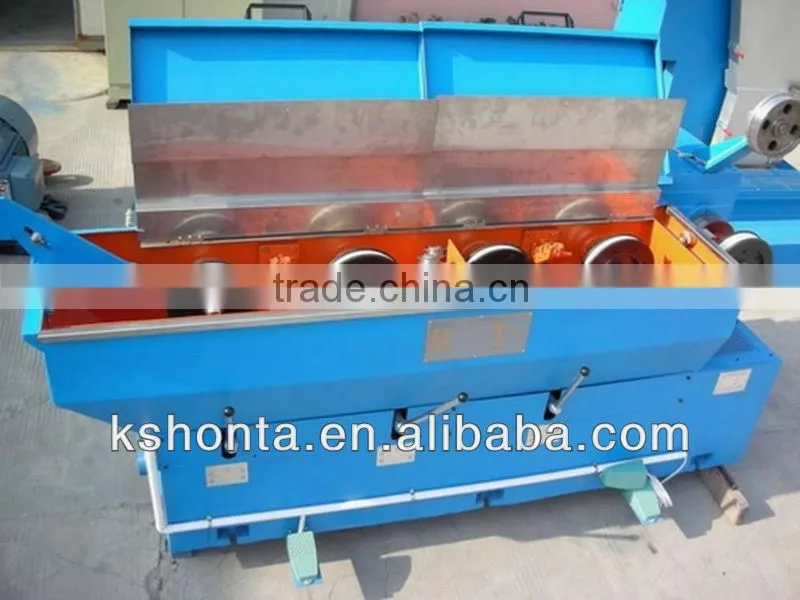

1: Drawing machine

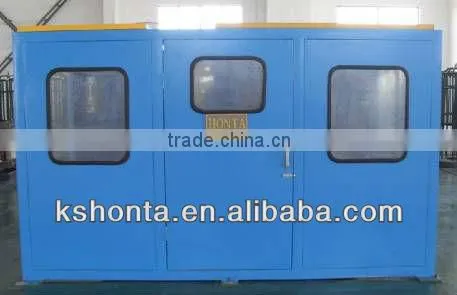

2.Online annealer

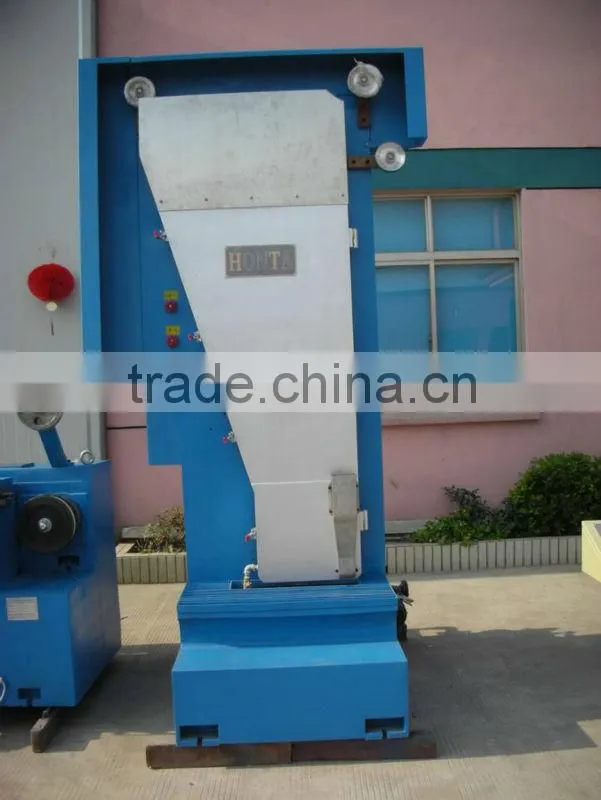

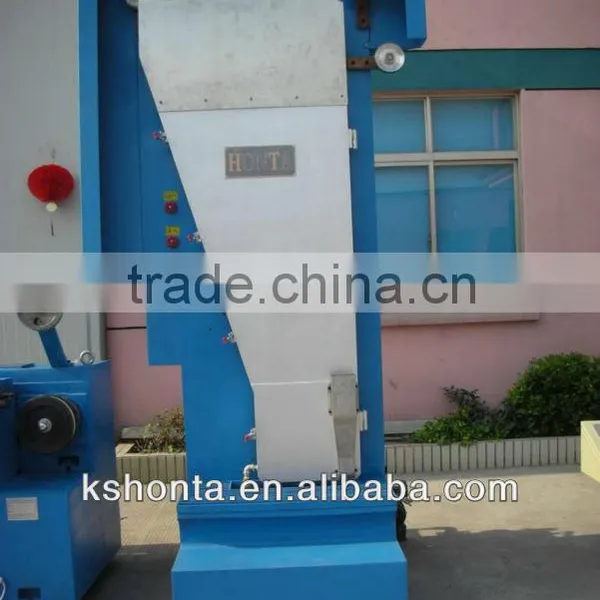

3. Double Take Up
