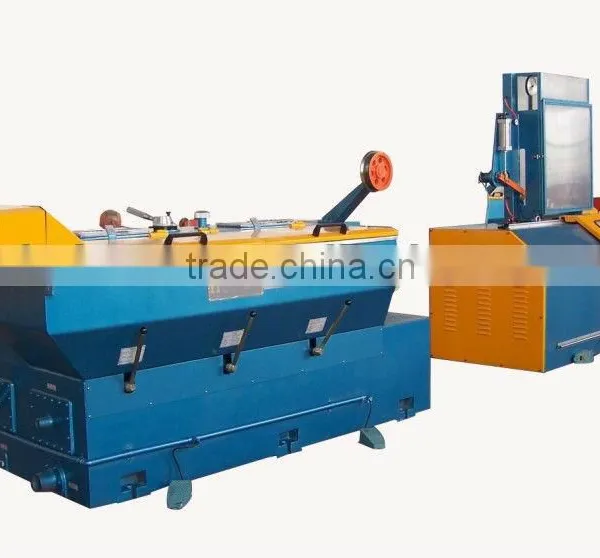

Help CenterAl Wire Drawing Machine
Related Products
-
Threading and Pointing MachineNegotiableMOQ: 1 Set -
Intermediate Wire Drawing MachineNegotiableMOQ: 1 Set
-
Threading and Pointing MachineUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Drawing Machine Copper Wire Cable Making Equipment Wire Cable MachineNegotiableMOQ: 1 Set
-
Intermediate Wire Drawing Machine With Annealing Copper Wire Drawing MachineNegotiableMOQ: 1 Set
The feature of the machine:
- Ahorizontal and tandem construction driven by double motors to achieve fast die change.
- A helical gear with high accuracy to ensure high efficiency and low noise.
- An immersion lubricating and cooling system to ensure better quality .
Technical specification:
1. Drawing machine:
Inlet wire diameter 2.6-3.5mm
Outlet wire diameter 0.4-1.6mm
Max. Line speed 30 m/s
Max. Drawing passes 17
Diameter of finish capstan 260 mm
Max. Size of dies 28x12 mm
Area reduction the final die is 14.5%, others are 18.18%
Power of main motor 55kw; AC
Total install power 300KVA
2. Spooler:
Max rotate Speed 1800 r/min
Max. movable distance of the shaft 150 mm
Max. travel distance of bobbin lifter 150mm
Spooling motor 11kW;1500r/min
Traverse motor 1KW 3000r/min
Bobbins DIN 630
Brake hydraulic type, emergency stop within 5 seconds;
Bobbin loading and unloading by hydraulic liftor;
Wire traverse speed automatically detect the changes of the speed
