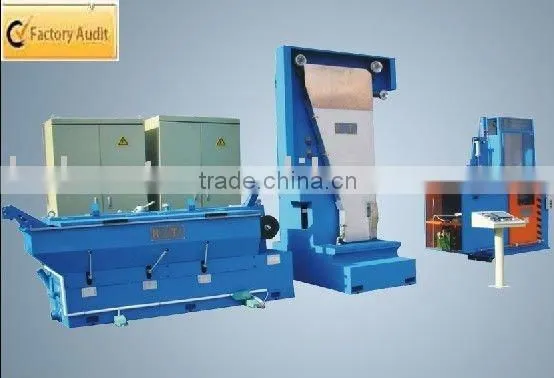

Help Center17 Dies Intermediate Copper Wire Drawing Machine With Annealer
Related Products
-
Copper Wire Drawing MachineNegotiableMOQ: 1 Set -
17 Dies Intermediate Wire Drawing Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
Brass Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
Intermediate Wire Drawing Machine for Al Wire and Cable MachineNegotiableMOQ: 1 Set
-
Intermediate Wire Drawing MachineNegotiableMOQ: 1 Set
Specifications
copper wire drawing machine1.Inlet:Max.3.5mm
2.Outlet:0.4-1.2mm
3.Speed: Max.35m/s
4.17 dies,with online annealer
1.The feature of the machine:
- Ahorizontal and tandem construction driven by double motors to achieve fast die change.
- A helical gear with high accuracy to ensure high efficiency and low noise.
- An immersion lubricating and cooling system to ensure better quality .
2.Technical specification:

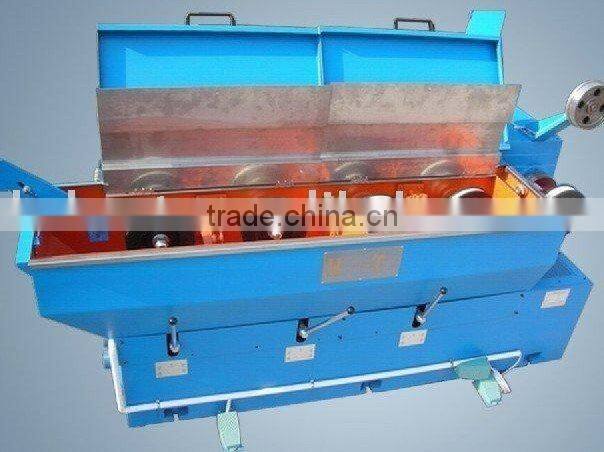

a. Drawing machine:
Inlet wire diameter:2.6-3.5mm
Outlet wire diameter:0.4-1.2mm
Max. Line speed:35 m/s
Max. Drawing passes:17
Diameter of finish capstan:250 mm
Speed ratio between capstans:1.265
Max. Size of dies : 25x10 mm
Speed ratio among:1.25 , 1st~16th dies; 1.186, 17th die
Power of main motor:55kw; AC
Total install power:300KVA

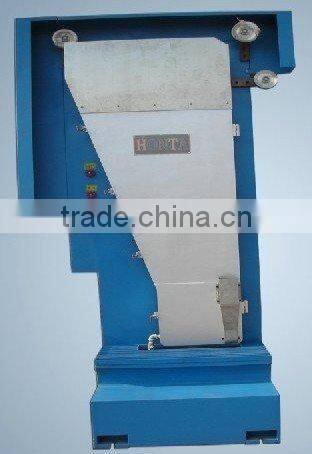

b. Online annealer:
Rated DC Annealing Current: 2000A
Maximum DC Annealing Voltage:60V
Annealing Capacity:170KVA
Protection:by steam
Weight:about 1800 kgs
Drive:by the flat belt from the finished capstan

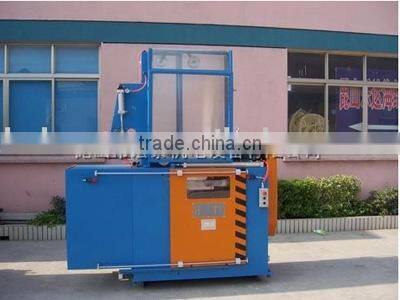

c. Spooler:
Max rotate Speed:1800 r/min
Max. movable distance of the shaft:150 mm
Max. travel distance of bobbin lifter:150mm
Spooling motor: 11kW;1500r/min
Traverse motor :servomotor 1KW 3000r/min
Bobbins:DIN 630
Brake :hydraulic type, emergency stop within 5 seconds;
Bobbin loading and unloading : by hydraulic liftor;
Wire traverse speed : automatically detect the changes of the speed

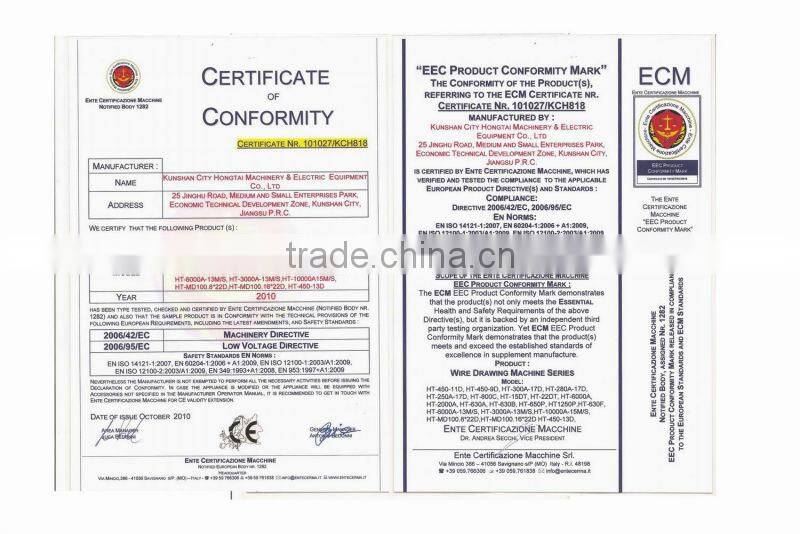

3.Certificate:
4. Main market:
