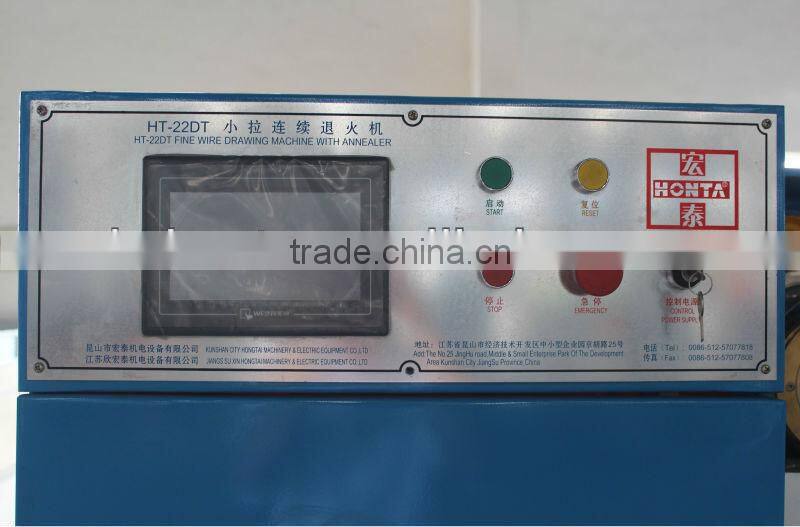

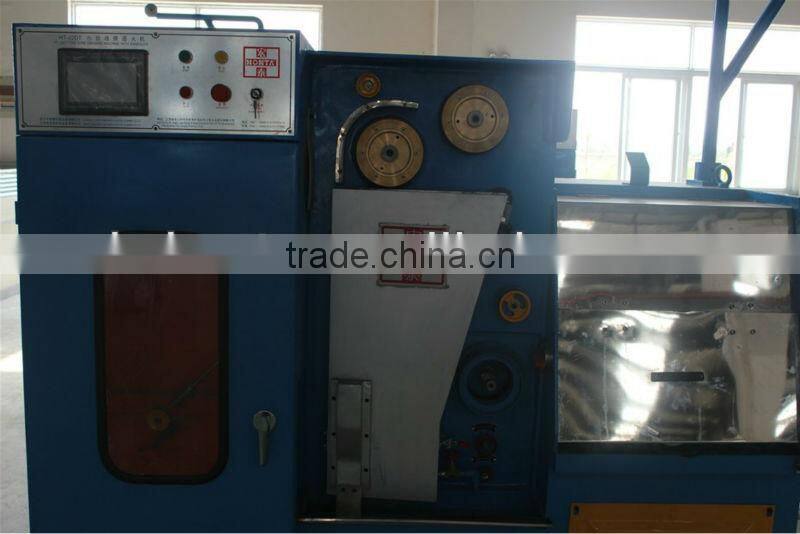

HT-22DT Fine Wire Drawing Machine with Annealer (Single Take-up)
The machine body is made of Q235A steel plates by welding, through annealing to eliminate internal stress and then processed by precision milling machine.
Techincal data
wire Diameter : 0.10~0.40 mm
Maximum Speed : 2000 m/min
Annealing principle : DC, 3-zone type
Rated annealing Current : 250A DC
Max. Annealing Voltage : 60V DC
Annealing Capacity : 18KVA
Steam Generator Power : 9 Kw
Steam quatity : Max12 kg/h
Compressed Air:
Working pressure : 0.6 ~ 0.7Mpa
Fluctuating value : ±0.02Mpa
Dew point : -25°C
Flow rate : 200L/min
Water quality:
Pressure : 0.2~0.4Mpa
Temperature : ≤25°C
Hardness of Water for Steam Generator : Max 5 dH
Hardness of Water for Annealer : Max 12 dH
PH Value : 7~8
Flow Rate : 420L/min
