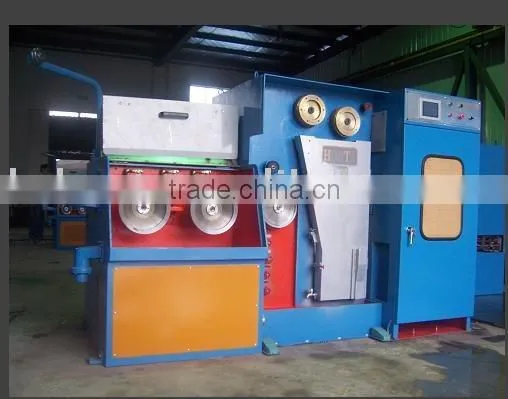

Part one Description of HT-15DT Fine wire drawing machine with annealer
HT-15DT annealing machine is to use short-circuit contact annealing principle, annealing power is DC power, applied to the annealing soft production of copper line, annealing machine makes up of the conductive system, oxidative protection systems, cooling systems, drying systems, electrical systems and other components. The way of oxidative production steam adopts steam protection (the device comes with a steam generator); cooling lubrication using the dilute concentration of drawing cycle. Generally speaking , it needs setting up pools or an external heat exchanger to cool (external heat exchangers and cooling towers by the user-owned); drying system uses compressed air and mold to dry. The used cooling water and compressed should be prepared by the user. The SCR of annealing electrical control adopts strong fan to cool.
Part two Technical data
Inlet diameter: max 1.4mm
Outlet: 0.20 ~ 0.50mm
The maximum line speed: max 1500 m/min
Die NO.: max 15 pcs
Area reduction: the last die 1.10% ; Others 1.18%
Drawing capstan diameter: max 315.9 mm
The last capstan diameter: 268.2 mm
The drawing motor power: AC18.5kw
Drawing machine size (L × W × H): 1400 × 2050 × 1200 mm
Net weight: about 3300 kgs
