Specifications

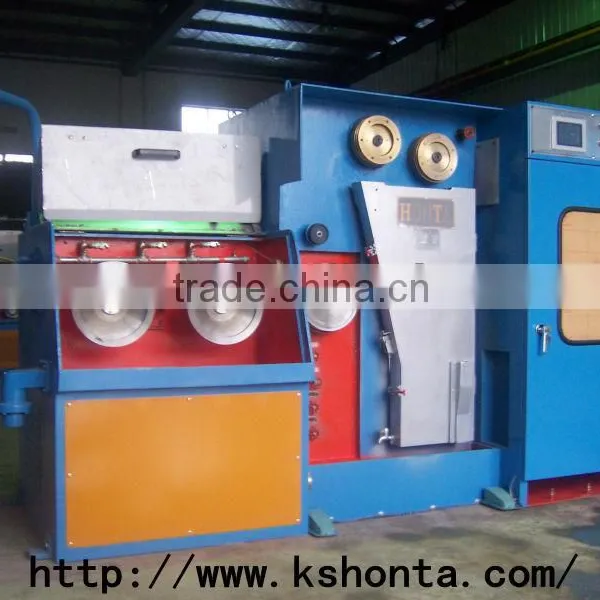

Fine wire drawing machine with online annealer
1.Inlet dia.: max 1.6mm
2.Outlet: 0.18mm- 0.60mm
3.Die NO.: max 15
4.Power: AC18.5kw
5.Total installed capacity:38kw
6.Working pressure:0.2-0.4Mpa
7.Temperature:≤30°C
8.Flow rate:12~18m3/h
Structure: this machine is consisted in four main parts, i.e. drawing, annealing, take-up parts and electrical control part. The machine body is made of Q235A steel plates by welding, through annealing to eliminate internal stress and then processed by precision milling machine.
Specification
Inlet diameter: max 1.6mm
Outlet : 0.18 ~ 0.60mm
The maximum line speed: max 1200 m/min
Dimension of dies : diameter 25mm X thickness 8-12mm
Area reduction : the last die is 1.08; the others are1.175
Diameter of drawing capstan : Max. 315.9mm, coated with chromic oxide
Diameter of finished capstan : 268.2mm, coated with chromic oxide
Dimension(L×W×H) : Approx. 1400×2050×1200mm
Flow rate : 12~18m3/h
