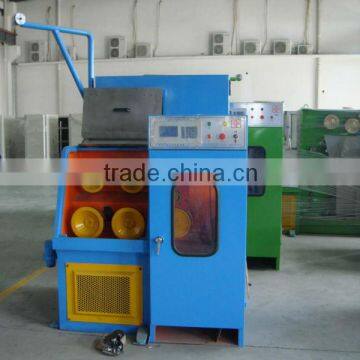

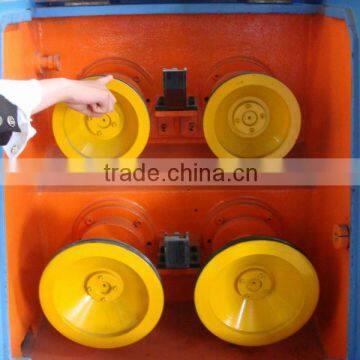

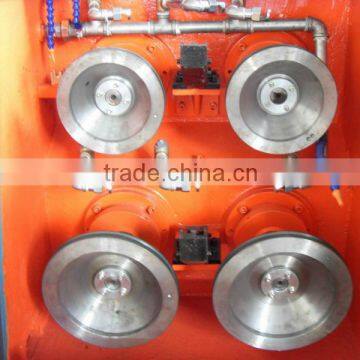

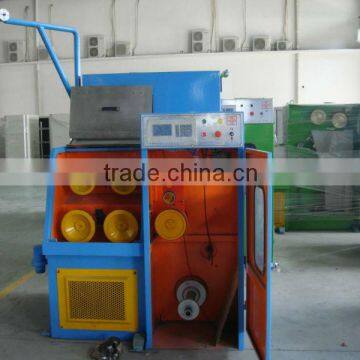

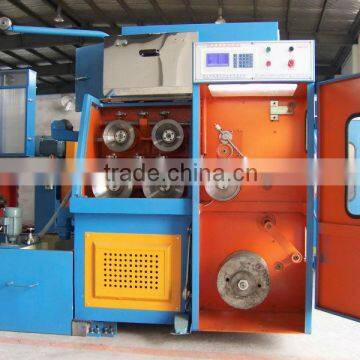

Part one Description of HT-24 Fine wire drawing machine (Drawing Usage High speed Wire Drawing Machine)
The machine is casted to form entirely and treated by annealing to eliminate internal stress. And then been finished by reaming with fine boring machine. It has features of no deformation and high precision.
Part two Main technical data:
Wire inlet range |
Ø0.2Ø0.60mm |
Wire outlet range |
Ø0.05Ø0.15mm |
Machinery speed |
2000RPM/Max |
MAX. Use number of dies |
24entries (provide by buyer) |
Min. use number of dies |
13entries (provide by buyer) |
Outline size of dies |
Ø25mm×8~12mm |
Machinery reduction rate |
the first to the 23rd is 11.5% |
The 24th is10% | |
Main motor |
5HP-4P AC motor and 5HP transducer |
Traversing ways |
Synchronous motor silk rod drive, the width is 200mm |
Coiler motor |
3HP-4P AC motor and 3HP transducer |
Coiling capacity |
5~15KG |
Braking |
electromagnetic brake |
Control way |
Dynamic control |
Electric consumption |
4~7.5KW |
Exterio r size of machine |
1900L×1350W×1750Hmm |
Machinery weight |
net weight1500kg, total weight 1700kg. |
Packed on steel pallets in 1 x 20″ container
Suitable for long distance ocean freight transportation and to change of climate, well protected against
moisture and shocks.
- Commissioning
- Training / introduction of the operating and maintenance personnel

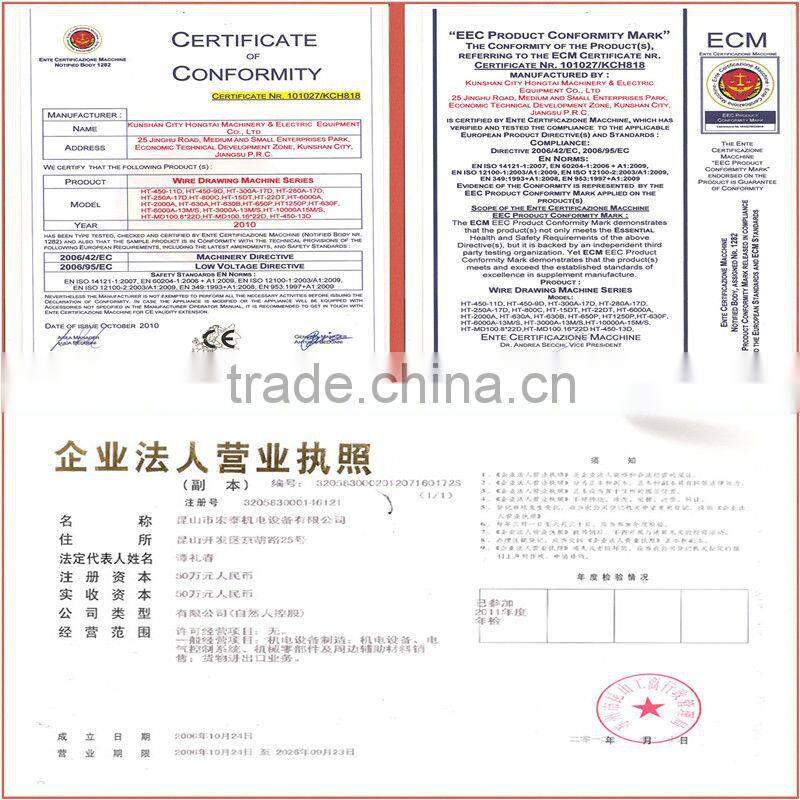

Certificate:
Please contact with us for more information, we will reply you as soon as possible.
