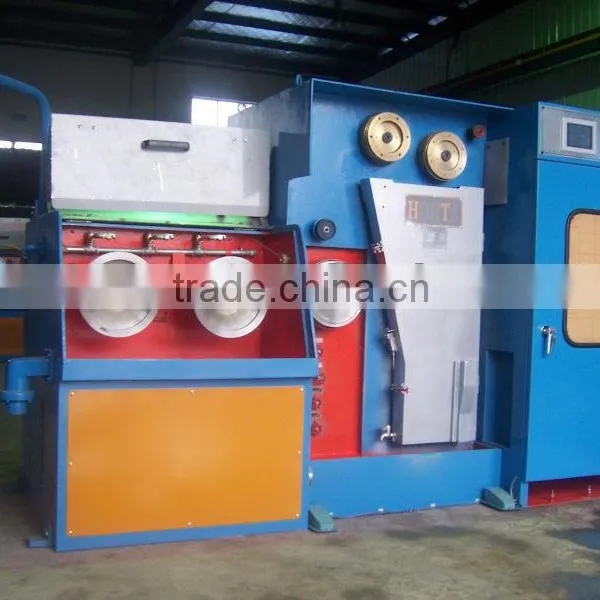

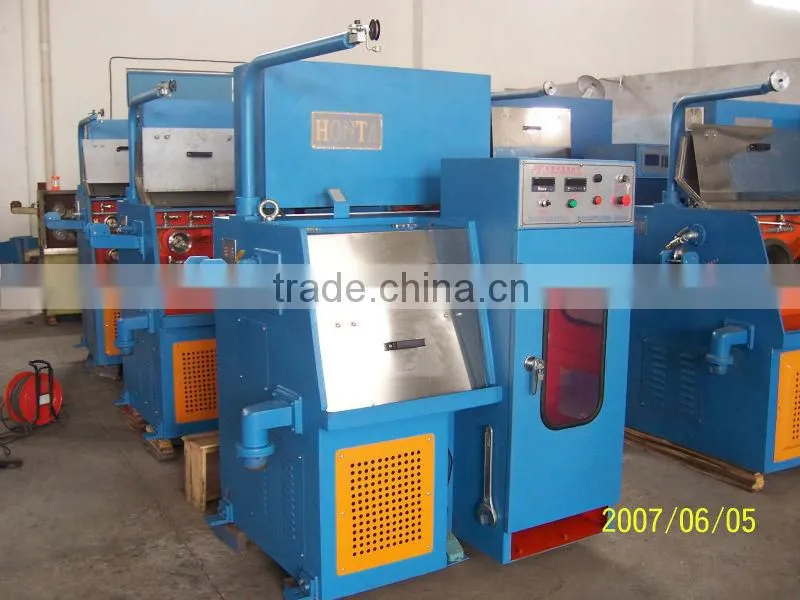

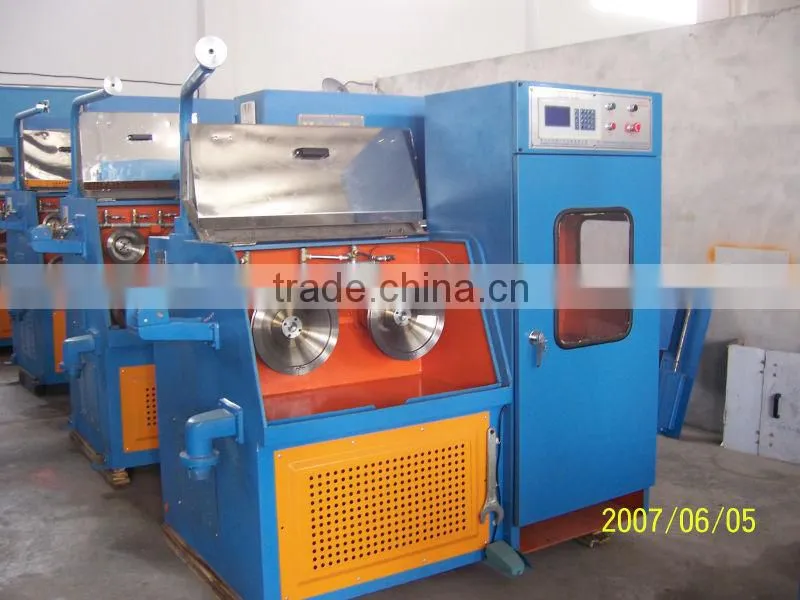

Super Fine Wire Drawing Machine With Continuous Annealer HONTA MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copper Fine Wire Drawing MachineNegotiableMOQ: 1 Set -
Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With Online AnnealerNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With Online Annealer Copper Wires Drawing Machine Copper Wire Making EquipmentNegotiableMOQ: 1 Set
-
24D Fine Wire Drawing Machine Drawing Usage High Speed Wire Drawing MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-24D
Usage
Drawing
Product Description
SPECIFICATION OF SUPER FINE WIRE DRAWING MACHINE AND ANNEALER
Items |
Specifacation |
| HT-24D | |
| materials | Cu |
| Max line speed | 40.0m/s |
| Inlet Diameter | 0.50~1.00mm |
| Outlet range | 0.08~0.25mm |
| Number of dies | Max 24 |
| Capstan diameter | 207mm |
| Final slip ration | 0%~2% |
| Drawing Cones | Sprayed ceramic or tungsten carbide |
| Tension Control | Weight Balance type |
| Max Loading capacity | 60KG |
| Bobbins | 300MM |
| Main capacity | 15KVA |
| Machine dimensions | 2050*1600*1920mm |
