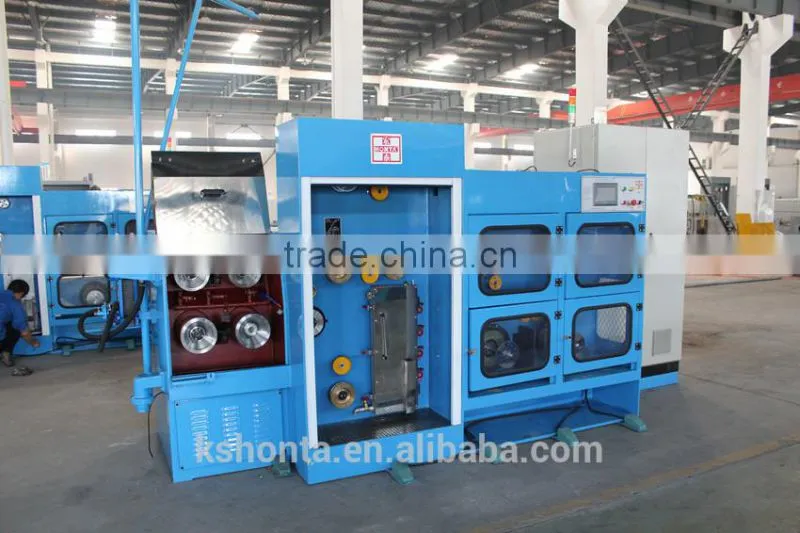

Fine wire drawing machine with Automatic spoolers:
Features:
u Multi-zone DC annealing, HMI+PLC control, more human oriented;

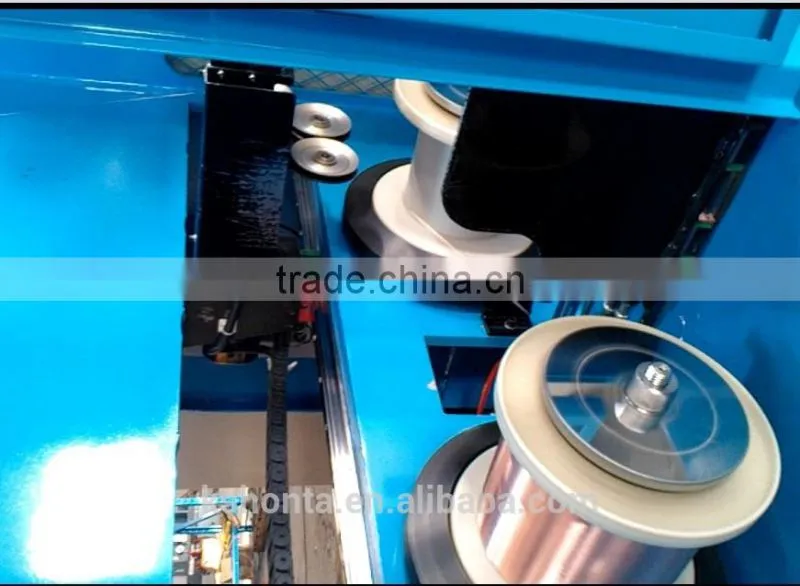

u It can change spooler automatically without machine stop; therefore, it improves efficiency and saves labor;
u Special traverse and spooler change mechanism can ensure a high success rate of switchover and machine stability.
u Wires are loaded in ABS spools, which can meet requirements of the next process and lower costs.
-------------------------------------------
Technical Specification:
Machine type |
HT-22DTS |
HT-24DTS |
HT-24DTS-A |
Material |
Cu |
Al, Al-alloys |
|
Machine speed |
1800m/min |
||
Inlet dia. |
1.20-1.60mm |
0.50-1.20mm |
0.50-2.30mm |
Finished dia. |
0.15-0.60mm |
0.08-0.40mm |
0.15-0.70mm |
No. of dies. |
Max.22 |
Max. 24 |
Max. 24 |
Capstan dia. |
159mm |
||
Annealing current |
Max.600A |
Max. 300A |
Max.400A |
Annealing power |
Max. 36kw |
Max. 24kw |
Max. 30kw |
Bobbin standard size |
180-300*290*30(37)mm, ABS plastic bobbin |
||
Spooler charge system |
Auto change spooler without stop when spooling to preset length. |
||
Main capacity |
60KVA |
40KVA |
55KVA |
Machine dimensions |
3200*1700*1800mm |
||
----------------------------------------------------------
Fine wire drawing machine line:
Features:
u Drawing , annealing, spooler are in integrated design, with compact structure to save space;
u Multi-zone DC annealing , speed tracks to drawing speed automatically;
u HMI+PLC digital control; high degree of automaticity and efficiency.
Technical Specification:
Machine type |
HT-15DT |
HT-22DT |
HT-24DT |
Material |
Cu |
||
Machine speed |
1500m/min |
1800m/min |
|
Inlet dia. |
1.20-1.60mm |
0.80-1.20mm |
0.50-1.00mm |
Finished dia. |
0.25-0.68mm |
0.12-0.40mm |
0.08-0.25mm |
No. of dies. |
Max. 15 |
Max. 22 |
Max. 24 |
Capstan dia. |
268mm |
159mm |
|
Annealing current |
Max.600A |
Max. 300A |
Max. 300A |
Annealing power |
Max. 36kw |
Max. 24kw |
Max. 18kw |
Bobbin standard size |
300, customized is possible |
||
Main capacity |
60KVA |
40KVA |
32KVA |
Machine dimensions |
2500*1700*1800mm |
2200*1600*1800mm |
|

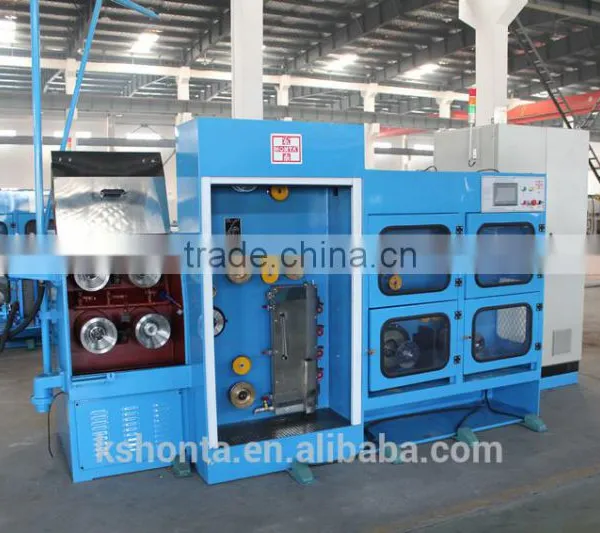

Fine wire drawing machine with Automatic spoolers:
Our factory show:
CE for multi wire drawing machine:
Exhibition is shanghai city:
Commissioning wire drawing machine in Turkey :
Our customers come from different countries around the world.
|
|
|
|
Multi wire drawing machine with annealer(4/8/10/16/24wires) |
8mm Rod breakdown wire drawing machine with annealer(1/2wires) |
9.5mm Aluminum Rod breakdown wire drawing machine with online annealer |
Electrolytic Tin-plating Machine(3000Sn/6000Sn/10000Sn) |
|
|
|
|
Multi wire draiwng machine with annealer(4/8/10/16/24) |
All kind of double twisting buching machine |
Extrusion machine |
Steel bobbin |
