HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable Machine

HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable Machine thumbnail-1
HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable Machine thumbnail-2
HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable Machine photo-1

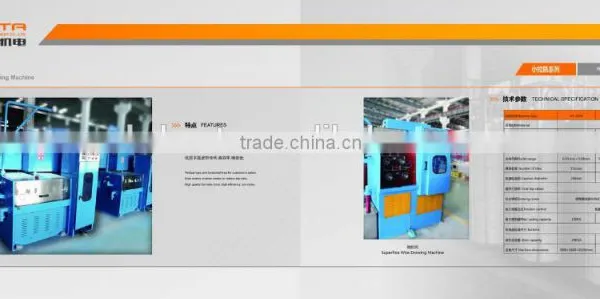

HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable Machine photo-2
US$ 5,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24DA
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-24DA
Usage Drawing

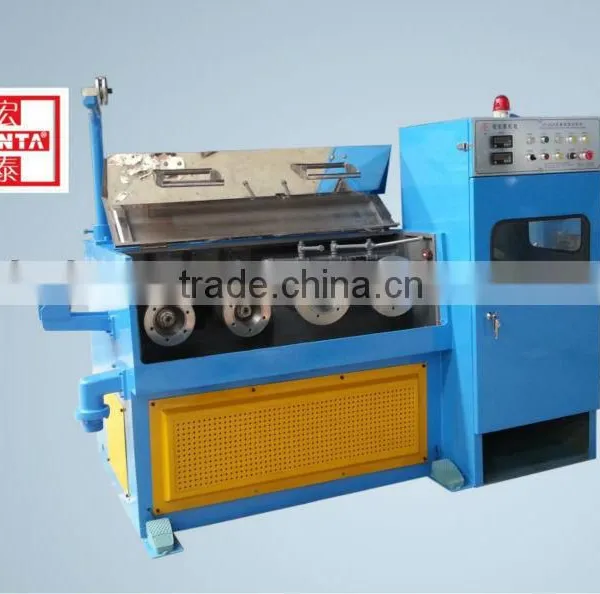

Part one Machine description of Fine wire drawing machine



    The machine is casted to form entirely and treated by annealing to eliminate internal stress. And then been finished by reaming with fine boring machine. It has features of no deformation and high precision.



Part two Main technical data:



Machine model HT-24DA
Wire inlet range Ø0.20-Ø0.60mm
Wire outlet range Ø0.05-Ø0.15mm
Machinery speed 2000MPM/Max
MAX. Use number of dies 24entries (provide by buyer)
Min. use number of dies 13entries (provide by buyer)
Outline size of dies Ø25mm×8~12mm
Machinery reduction rate the first to the 23rd  is 11.5%  The 24th      is10%
 Main motor 5HP-4P  AC motor and 5HP transducer
Traversing ways Synchronous motor silk rod drive, the width is 200mm
Coiler motor  3HP-4P  AC motor and 3HP transducer
Coiling capacity 5~15KG
 Braking electromagnetic brake
Electric consumption  4~7.5KW
 Exterior size of machine  1900L×1350W×1750Hmm
 Machinery weight  net weight1500kg, total weight 1700kg

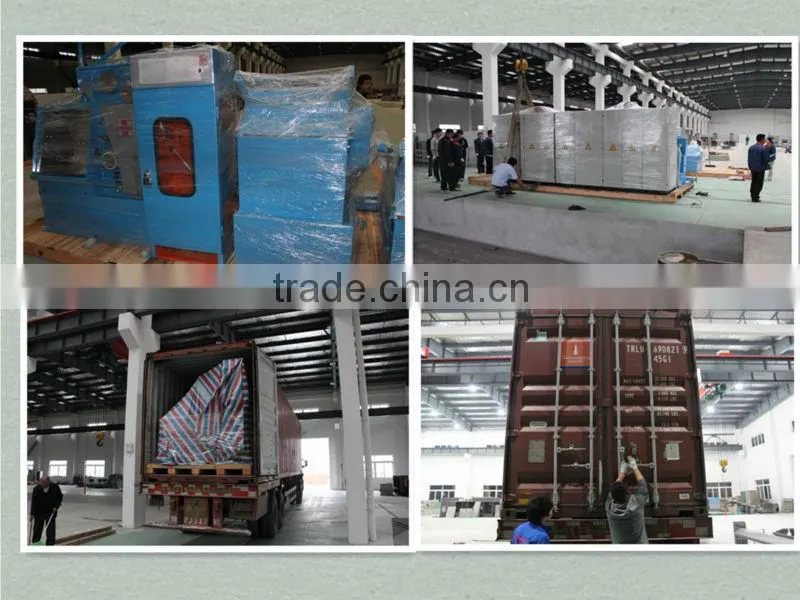

Part three  Packing:

HT-24DA Fine wire drawing machine professional manufacturer of wire and cable machine



Part four Certificate:
