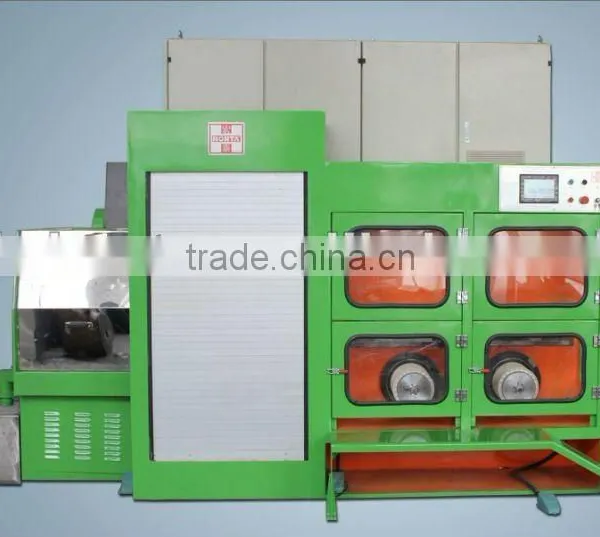

Help CenterFine Wire Drawing Machine
Related Products
-
15 Dies Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set -
HT-24DT Fine Wire Drawing Machine With Continuous AnnealerUS$ 5,000 - 30,000MOQ: 1 Set
-
Fine Wire Drawing Machine Copper Wire Cable Making Equipment Wire Cable MachineNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With Annealer Electric Cable Making EquipmentNegotiableMOQ: 1 Set
Drawing machine:
Body structure : steel welding
Inlet diameter : Max. 1.2mm
Applicable marterial : hypoxia or oxygen free red copper wire, tinned copper wire;
Outlet diameter : 0.08~0.45mm
Max. line speed : Max. 1800m/min (without annealing)
Outlet diameter (mm) |
0.08-0.11 |
0.12-0.15 |
0.16-0.25 |
0.26-0.32 |
0.32-0.40 |
0.40-0.45 |
Speed with annealing(m/min) |
1000-1200 |
1200-1100 |
1500-1600 |
1400-1300 |
1200-1300 |
1000-900 |
Q’ty of dies : Max. 24 pcs
Exterior diameter of dies : Dia. 25mm x thickness 8-12mm
Area reduction : 1- 23rd are15%; 24th 8.7%
Drawing capstan : 4 capstans
Drawing main motor : 20HP(15KW) AC; controlled by inverter
Double spooler motor : 3HP (2.2KW X 2) AC; controlled by inverter
Transmission : all by flat belts
Emulsion quantity : 40L/min
Annealer:
Annealing method : controlled by DC power,
Antioxidation protection : by steam
Power of Steam Generator : 9KW
Steam quatity : Max12 kg/h
Cooling : by emulsion circulation
Alarm for emulsion lack : audible and visual alarm
Drying : by compressed air
Cooling of silicon control : by air blower
Maximum Speed : 1800 m/min
Rated annealing Current : 400A DC
Max. Annealing Voltage : 65V DC
Well packed on steel pallets in containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
1. Technical support, design machine according to customer's requirement.
2. Prepare detail proposals for customer's check.
3. Be guider for machine installation.
4. To send engineers to customer's plant to finish machine commissioning.
5. Help customers to remove troubles in future running.
