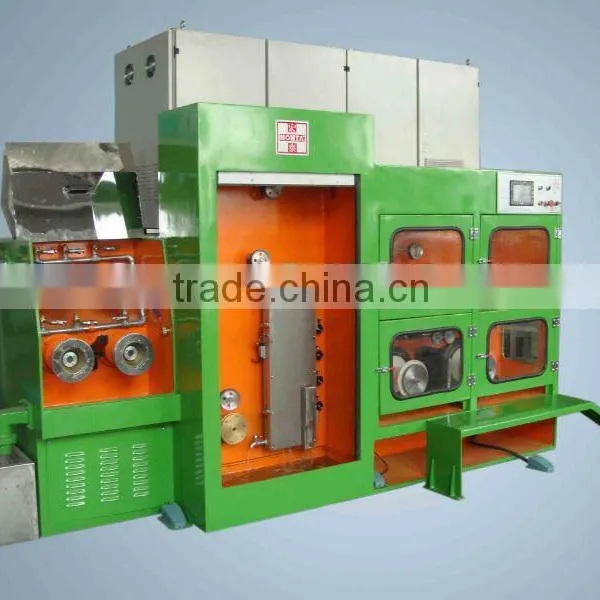

Fine Wire Drawing Machine

Fine Wire Drawing Machine photo-1

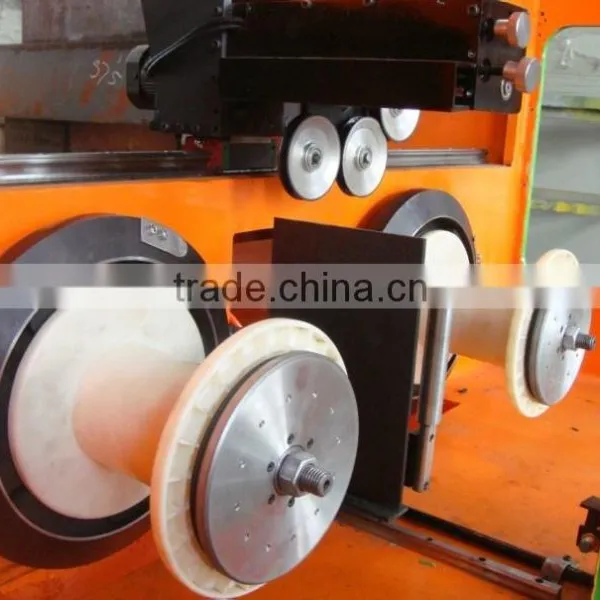

Fine Wire Drawing Machine photo-2

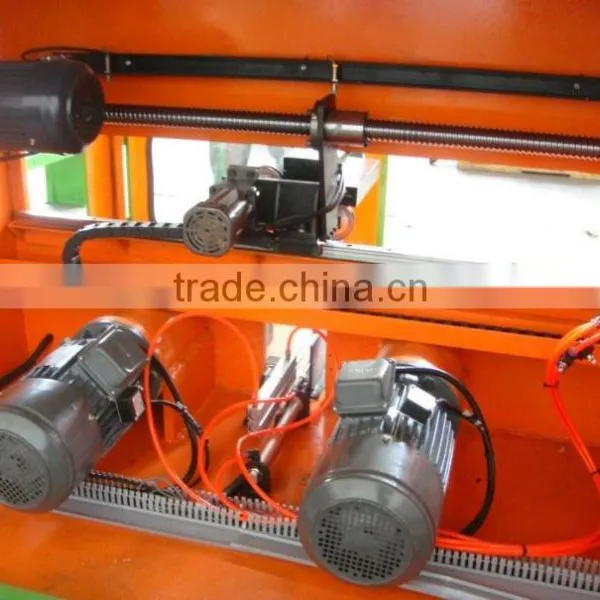

Fine Wire Drawing Machine photo-3

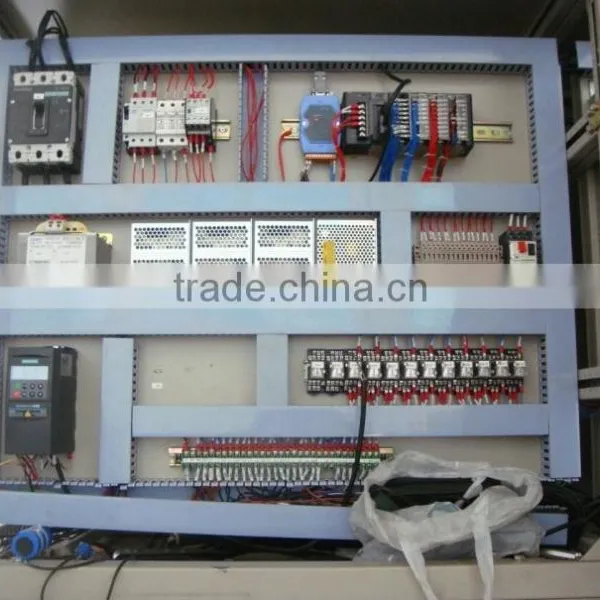

Fine Wire Drawing Machine photo-4

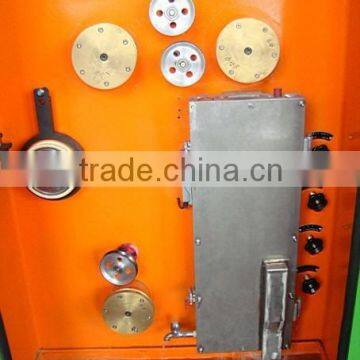

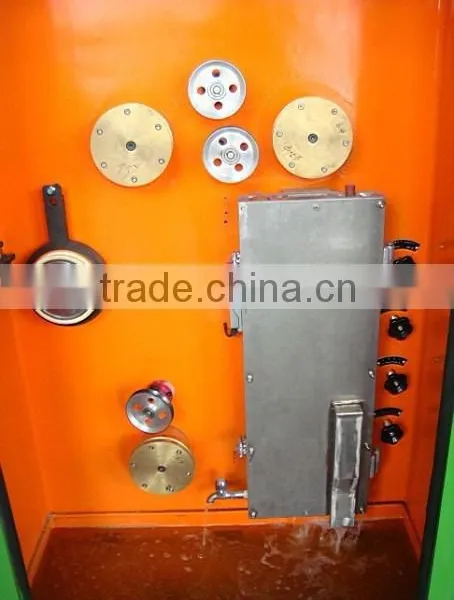

Fine Wire Drawing Machine photo-5

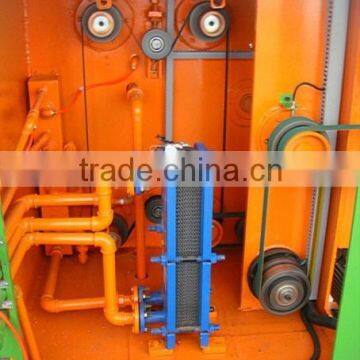

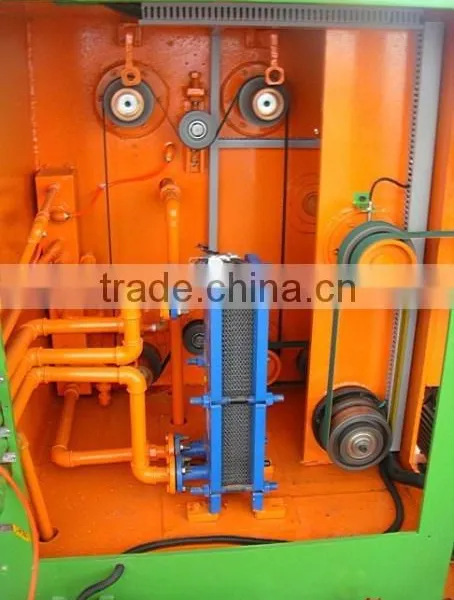

Fine Wire Drawing Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
1.2mm
Outlet Diameter:
0.08~0.45mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Inlet Diameter 1.2mm
Outlet Diameter 0.08~0.45mm
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-24DTS
Voltage 380 - 415V
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Drawing machine:

Body structure                       : steel welding

Inlet diameter                        : Max. 1.2mm

Applicable marterial              : hypoxia or oxygen free red copper wire, tinned copper wire;

Outlet diameter                     : 0.08~0.45mm

Max. line speed                     : Max. 1800m/min (without annealing)

Outlet diameter (mm)

0.08-0.11

0.12-0.15

0.16-0.25

0.26-0.32

0.32-0.40

0.40-0.45

Speed with annealing(m/min)

1000-1200

1200-1100

1500-1600

1400-1300

1200-1300

1000-900

Q’ty of dies                            : Max. 24 pcs

Exterior diameter of dies       : Dia. 25mm x thickness 8-12mm

Area reduction                       : 1- 23rd are15%; 24th 8.7%

Drawing capstan                    : 4 capstans

Drawing main motor              : 20HP(15KW) AC; controlled by inverter

Double spooler motor            : 3HP (2.2KW X 2) AC; controlled by inverter

Transmission                          : all by flat belts

Emulsion quantity                   : 40L/min

Annealer:

Annealing method                    : controlled by DC power,

 Antioxidation protection           : by steam

 Power of Steam Generator     : 9KW

Steam quatity                            : Max12 kg/h

Cooling                                     : by emulsion circulation

Alarm for emulsion lack            : audible and visual alarm

Drying                                       : by compressed air

Cooling of silicon control          : by air blower

Maximum Speed                      : 1800 m/min

Rated annealing Current          : 400A DC

Max. Annealing Voltage            : 65V DC

Annealing Capacity                  : 30KVA
