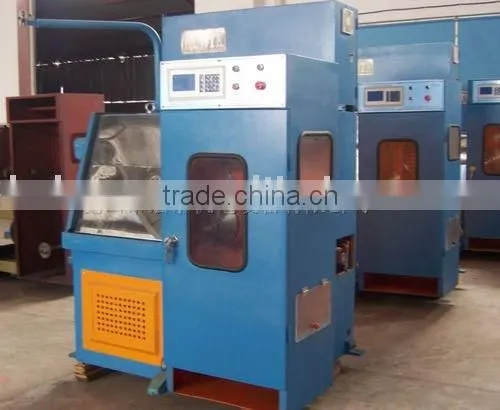

Fine Wire Drawing Machine

Name: Fine Wire Drawing Machine
Brand: HONTA
SKU: 111664363

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

HONTA

Model Number:

HT-14D/HT-20D/HT-22DA/HT-24DA

Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HONTA

Model Number HT-14D/HT-20D/HT-22DA/HT-24DA

Usage Drawing

Machine model & Main technical data:

Machine model	HT-14D	HT-20D	HT-22DA	HT-24DA
Machine type	2Capstans Horizontal type	4 Capstans
Control system	By computer digital control with produce recorder or LCD control
Motor control	Dual inverter control
Wire finished(mm)	φ0.25-φ0.6mm	φ0.05- φ0.12mm	φ0.1-φ0.4mm	φ0.08-φ0.25mm
Wire inlet dia.(mm)	φ0.8-φ1.6mm	φ0.15-φ0.4mm	φ0.6-φ1.2mm	φ0.5-φ1.0mm
Drawing line speed(MPM)	1500mpm/max.	2000mpm/max.	2500mpm/max.	2500mpm/max.
Drawing dies No./Max.	14	20	22	24
Slip ratio of m/c	17.8%	12%	17.6%	15%
Fix speed capstan slip ratio	8.7%	6.5%	8.7%	8.7%
Final slip ratio	0%-2%
Frame	Annealed by steel plat	Ironed cast
Capstan	Ceramic plasma or Tungsten
Capstan dia.(Max.)	φ316mm	φ120mm	φ243mm	φ243mm
Fix speed capstan dia.	φ268mm	φ120mm	φ207mm	φ207mm
Spool bobbin size(mm)	O.D.300-400mm	O.D.300mm/max	O.D.300mm/max	O.D.300mm/max
Bobbin loading & unloading type	Shaft type
Traversing unit	110W Synchronize Motor Type
Main motor (DC)	15KW(20HP)	3.7KW(5HP)	11KW(15HP)	11KW(15HP)
Spooler motor (Take-off motor)(DC)	5.5KW(7.5HP)	2.2KW(3HP)	3.7KW(5HP)	3.7KW(5HP)
Transmission type	Flat belts
Revise system	Computer synchronous control spooler
Detecting device	Weight balance by swing arm
Tension control	Weight balance type
Max. loading capacity	100Kg	50Kg	80Kg	80Kg
Lubrication type	Spray type
Brake	Magnetic brake
Lubricant type for bearing	Weight balance type
Power source	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ	380V 50/60HZ
Lubricant oil capacity	40 Liter/Minute	40 Liter/Minute	40 Liter/Minute	40 Liter/Minute
Machine dimension (mm)	2000X1600X1920	1900X1600X1750	2050X1600X1920	2050X1600X1920
