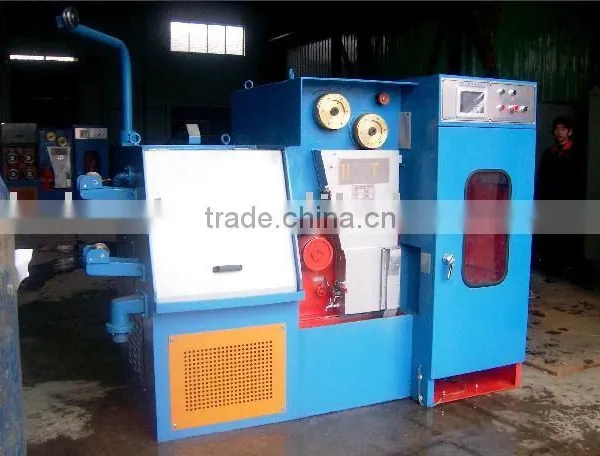

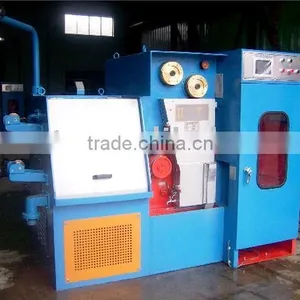

1. Fine wire drawing machine with annealer
HT-15DT annealing machine is to use short-circuit contact annealing principle, annealing power is DC power, applied to the annealing soft production of copper line, annealing machine makes up of the conductive system, oxidative protection systems, cooling systems, drying systems, electrical systems and other components. The way of oxidative production steam adopts steam protection (the device comes with a steam generator); cooling lubrication using the dilute concentration of drawing cycle. Generally speaking , it needs setting up pools or an external heat exchanger to cool (external heat exchangers and cooling towers by the user-owned); drying system uses compressed air and mold to dry. The used cooling water and compressed should be prepared by the user. The SCR of annealing electrical control adopts strong fan to cool.
2. Main technical data:
Outlet diameter: Φ0.8-Φ1.6mm
Inlet diameter: Φ0.25-Φ0.6mm
Drawing line speed: 1200mpm/max
Main motor power: 15KW
Annealing power: 30KW
Take-up motor power: 5.5KW
Annealer method: DC three-section annealing
Suitable diameter of spool: Φ300mm
Revise system: PID synchronous control spooler
Capacity for wire receiving: 50kgs
Using voltage: 380 V
Brake way: Magnetic brake
Machine dimention: 2568L*1538W*2974H
Machine weight: 3000kgs
