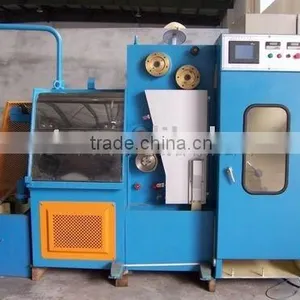

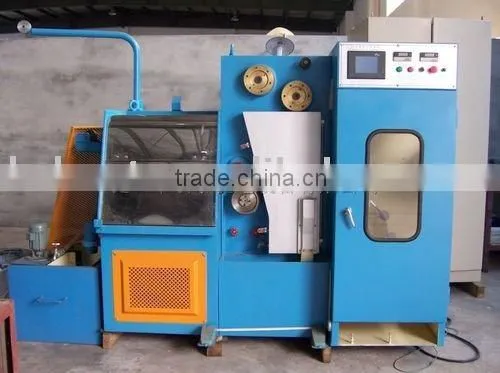

1. Component of HT-22DT Fine wire drawing macine with annealer:
This machine makes up of one set fine HT-22DT wire drawing machine & continuous annealer, one set steam generator, one set electric controlling system and one copy Random items ( including water, electric, and gas direct connecting drawing).
2. Description of this machine:
According to the needs of market, HT-22DT Fine Wire Drawing Machine and Continuous Annealer are improved from the old HT-22D drawing machine. While keeping original advantages, this machine is added a continuous annealing device in the back of the drawing machine.
This equipment has the following characteristics:
1. Have improved production efficiency, reduced the operating difficulty, increased enterprise's benefits
2. Simplifying the production process, easy to operate, reducing personnel cost, saving cost. At present, it is an advanced wire drawing machine in the world.
3. In addition, there are two kinds of operations modes for customers to choose: button mode and computer numerical control mode. The latter is convenient for centralized management.
4. Reasonable price, the price is only 1/3 of the import equipment;
5. Introducing the latest technology from Europe to make high quality products.
3. Main technical data:
Outlet diameter: Φ0.8-Φ1.2mm
Inlet diameter: Φ0.10-Φ0.32mm
Drawing line speed: 2000mpm/max
Main motor power: 11KW
Annealing power: 16KW
Take-up motor power: 3.7KW
Annealer method: DC three-section annealing
Suitable diameter of spool: Φ300mm
Revise system: PID synchronous control spooler
Capacity for wire receiving: 50kg
Using voltage: 380
Brake way: Magnetic brake
Machine dimention: 2100L*1600W*1700H
Machine weight: 3000kgs
