70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment

70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment thumbnail-1
70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment thumbnail-2
70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment thumbnail-3

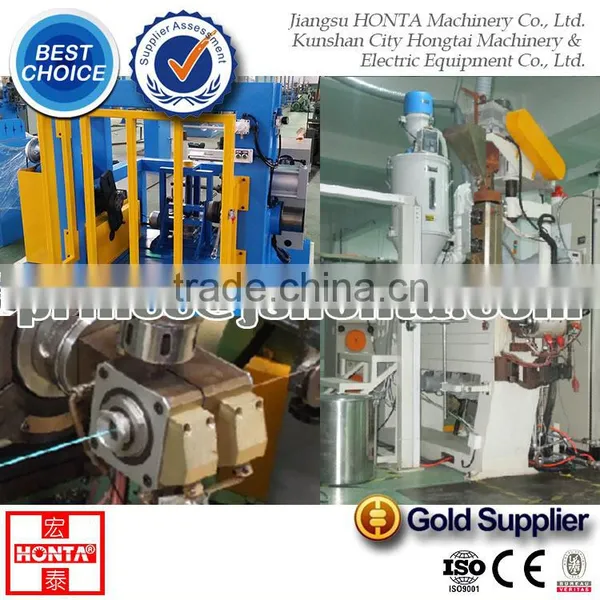

70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment photo-1

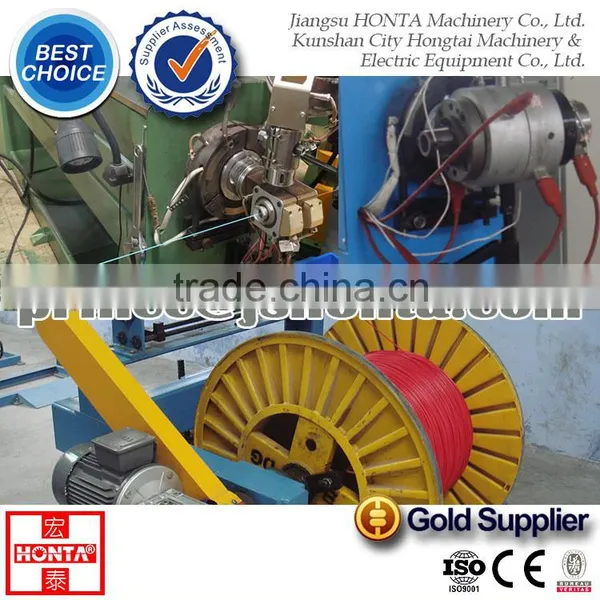

70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment photo-2
70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment photo-3
US$ 90,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-70/90/120
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-70/90/120
Usage Other, Extruding, Extruding usage electric wire pvc coating extrusion line
Product Description

Extrusion for PVC insulation and jacked electric wire.



70/90/120 Extrusion Line PVC/PE/XLPE Extruder Insulated Power Cable Making Equipment



Specifications

70mm extruder

1)   motor: 30kW AC motor;

2)   gear box type: ZLYJ200-Ⅱ;

3)   screw : 38CrMoAlA,φ70mm, L/D:25: 1;

4)   barral: 38CrMoAlA;

5)   rotation speed:10-110rmin;

6)   output:140kg/h (open crosshead, PVC);

7)   heater: voltage:220V,4 zones, casting aluminium heater, 4.5KW per zones, one zone for  half.

8)   Clamp type: three pieces;

9)   cooling: 4 zones, 370w;

10)    total power: 30+4*4.5+9*0.11+4*0.37=50.47kW;

11)    outer size: (L) 2700 * (W) 1400 * (H) 2500;

 spares: one set heater for clamp,3 set thermocouple.



35mm sub extruder

1)Type: vertical

2)Motor: AC 3.7 KW;

3)Screw: 38CrMoAlA,φ35mm,L/D=18: 1;

4)Barrel: 38CrMoAlA ;

5)rotation speed:6-60r/min;

6)heater: voltage:220V,three zones, casting aluminum, 1KW per zones

7)cooling:3 fans for barrel, 60W .

8)total power: 3.7+3*1+9*0.09+0.85+0.95+3*0.06=9.49kW;



90mm extruder



1)motor:75kW AC motor.

2)gear box:type ZLYJ200-Ⅱ

3)screw:38CrMoAlA,φ90mm,L/D=25:1.

4) barrel:38CrMoAlA.

5)Rotation speed: 10-90rpm.

6)output:280kg/h for PVC without crosshead

7)heater:voltage:220V,5 zones, heating by molten Al heater ,5kW per zones

8)Clamp: three pieces.

9)cooling:5 set fans for the barrel,power:370W .natural cooling

10) total power:75+5*5+12*0.15+5*0.37=108.65kW.

11) out size:(L)3400*(W)2000*(H)2650mm.

12) weight:1400kg.



50 sub- extruder



1) motor:11kW AC motor.

2) gear box:Grinding gear drive(The imitation of Italy type) ZLYJ133-II

3) screw:38CrMoAlA, φ50mm, L/D=25:1.

4) barrel:38CrMoAlA.

5) Rotation speed:10-110r/min.

6) output: 65kg/h(for pvc without crosshead).

7) heat:voltage:220V, 3 zones of barrel heated by Cast aluminum heater, 3kW for each zones. First zone of clamp is heated by stainless steel heating rob, heating power:9*120W.

8) Clamp: 3 pieces.

9) cooling type:three Barrel cooling high pressure centrifugal fans with 180W power

10) Clamps: natural cooling .

11) total power:15+3*3+9*0.12+3*0.18=25.54kW.

12) size:(length)2200*(width)1500*(height)2500.

13) weight:900kg.

14) spares:a set of clamp stainless steel heating rob, 2 thermocouples.

15) Moving on the linear guider by manual, and electric up and down.



Power Supply

  • 3-phase voltage ~3×380VAC (±10%)
  • Single-phase voltage ~220VAC (±10%)
  • Frequency 50Hz (±2%)

Note: Power supply is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.
