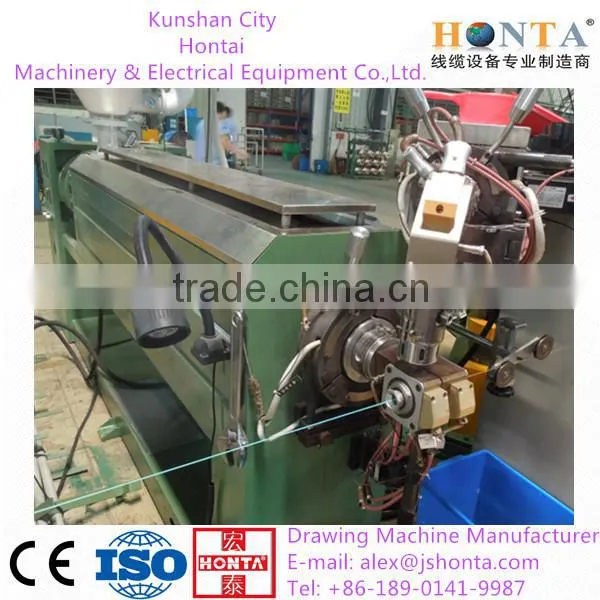

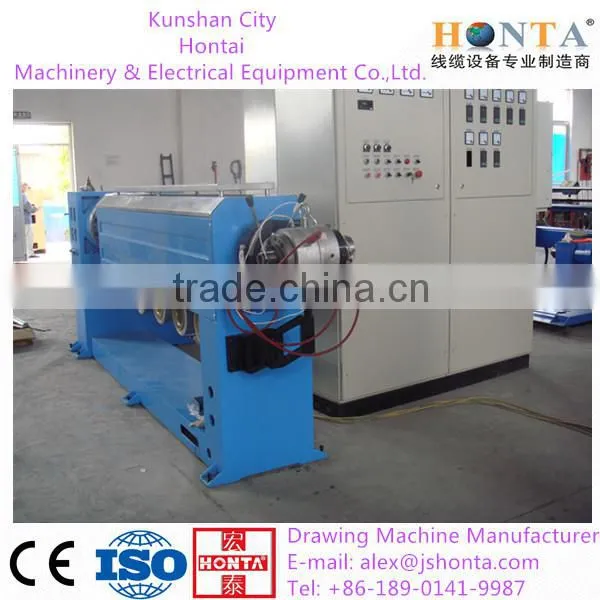

pvc extrusion machine plastic coating equipment for electric cable wire production

1)motor:75kW AC motor.

2)gear box:type ZLYJ200-Ⅱ

3)screw:38CrMoAlA,φ90mm,L/D=25:1.

4) barrel:38CrMoAlA.

5)Rotation speed: 10-90rpm.

6)output:280kg/h for PVC without crosshead

7)heater:voltage:220V,5 zones, heating by molten Al heater ,5kW per zones

8)Clamp: three pieces.

9)cooling:5 set fans for the barrel,power:370W .natural cooling

10) total power:75+5*5+12*0.15+5*0.37=108.65kW.

11) out size:(L)3400*(W)2000*(H)2650mm.

12) weight:1400kg.

50 sub- extruder

1) motor:11kW AC motor.

2) gear box:Grinding gear drive(The imitation of Italy type) ZLYJ133-II

3) screw:38CrMoAlA, φ50mm, L/D=25:1.

4) barrel:38CrMoAlA.

5) Rotation speed:10-110r/min.

6) output: 65kg/h(for pvc without crosshead).

7) heat:voltage:220V, 3 zones of barrel heated by Cast aluminum heater, 3kW for each zones. First zone of clamp is heated by stainless steel heating rob, heating power:9*120W.

8) Clamp: 3 pieces.

9) cooling type:three Barrel cooling high pressure centrifugal fans with 180W power

10) Clamps: natural cooling .

11) total power:15+3*3+9*0.12+3*0.18=25.54kW.

12) size:(length)2200*(width)1500*(height)2500.

13) weight:900kg.

14) spares:a set of clamp stainless steel heating rob, 2 thermocouples.

15) Moving on the linear guider by manual, and electric up and down.

Power Supply

• 3-phase voltage ~3×380VAC (±10%)
• Single-phase voltage ~220VAC (±10%)
• Frequency 50Hz (±2%)

Note: Power supply is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.

Related Products

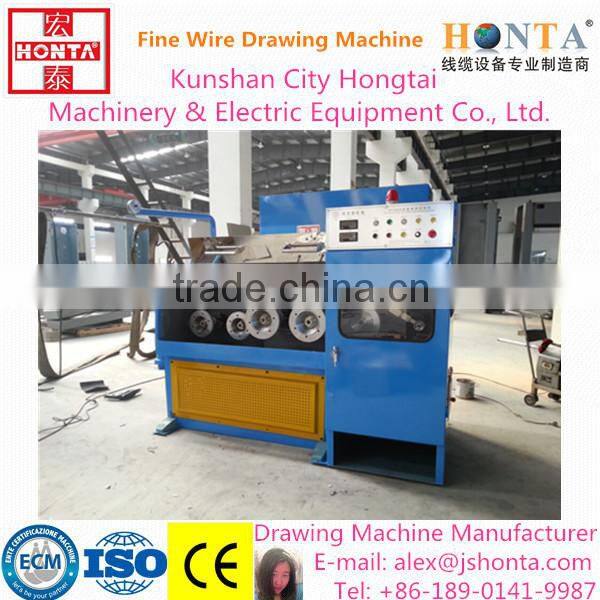

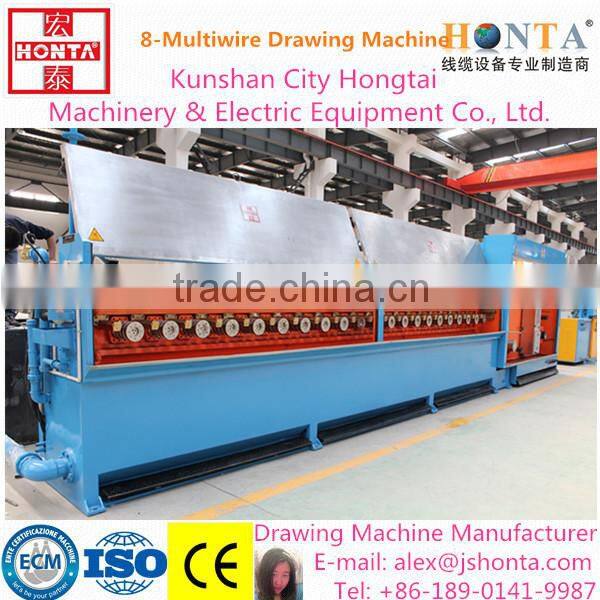

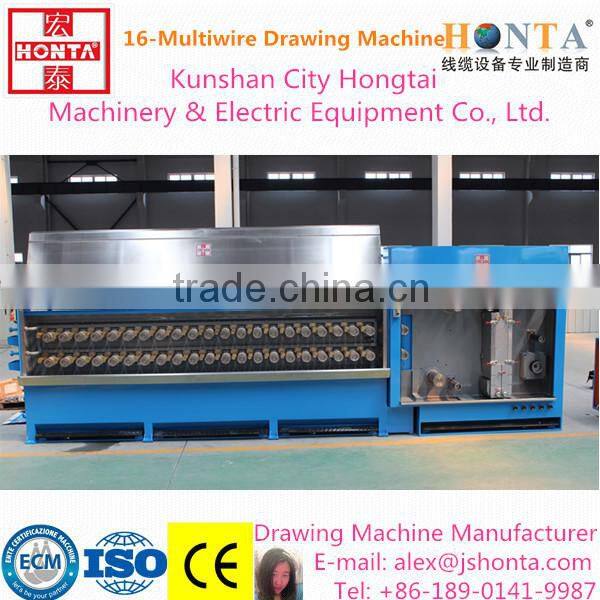

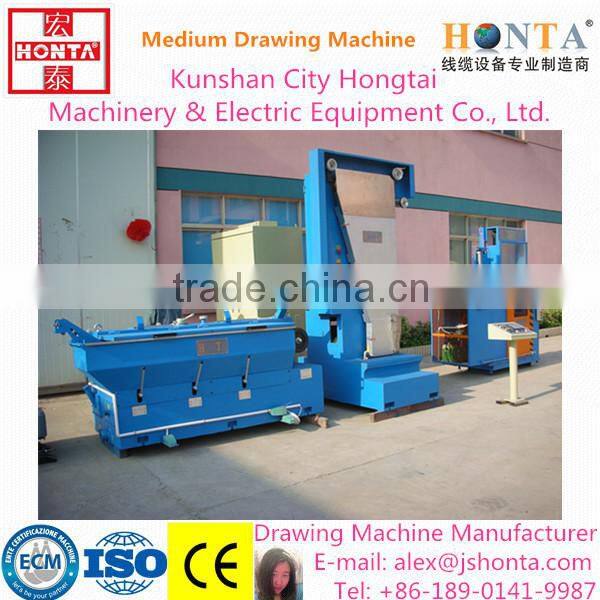

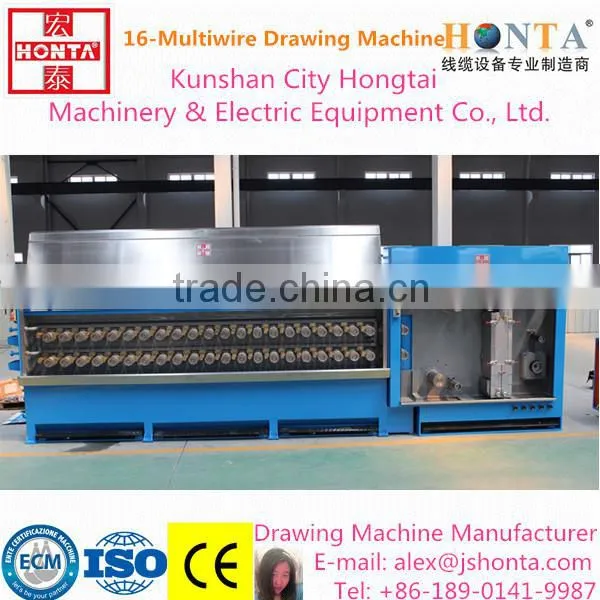

Copper Rod Breakdown Aluminum Rod Breakdown	Multi-Wire Drawing  8-wire,	Multi-Wire Drawing 16-wire	Medium Wire Drawing	Copper Fine Wire Drawing With Annealer

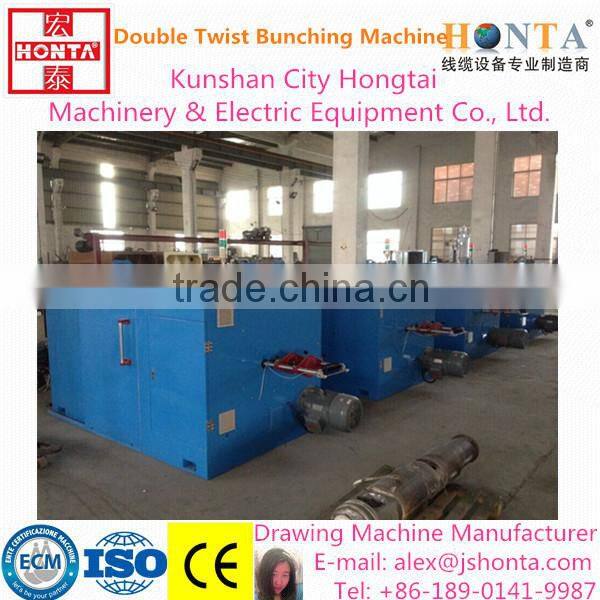

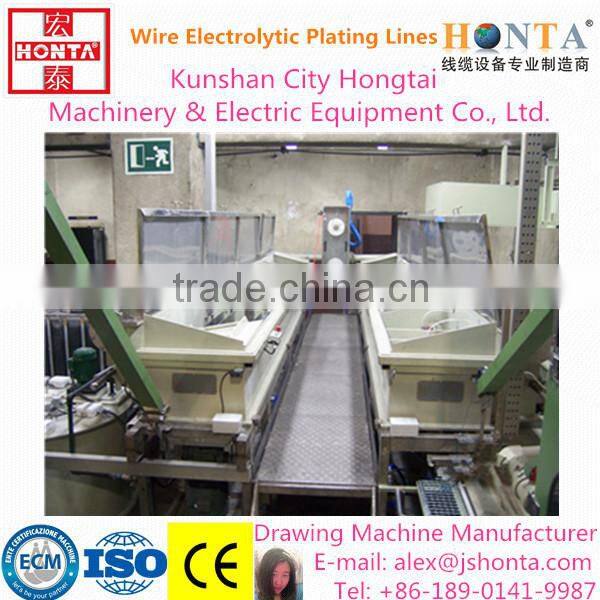

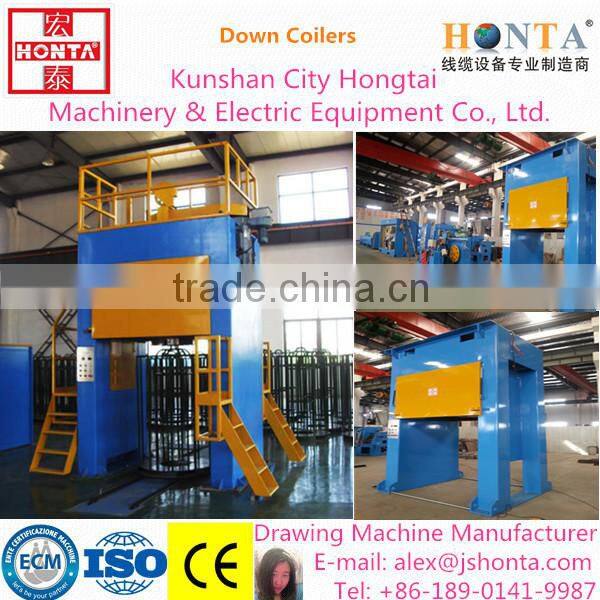

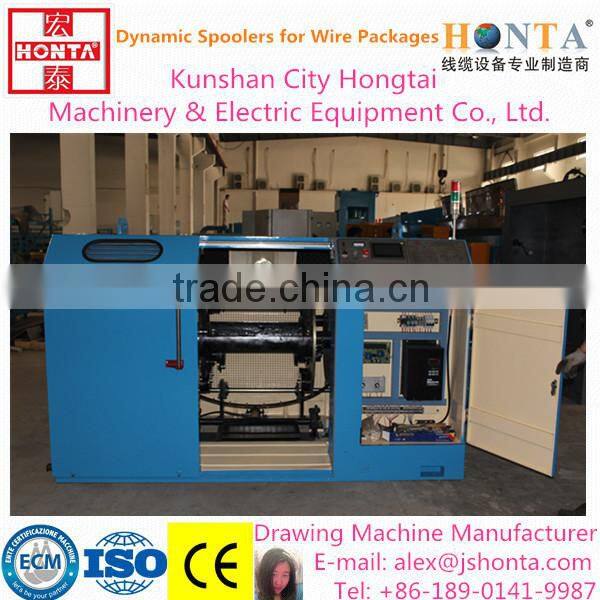

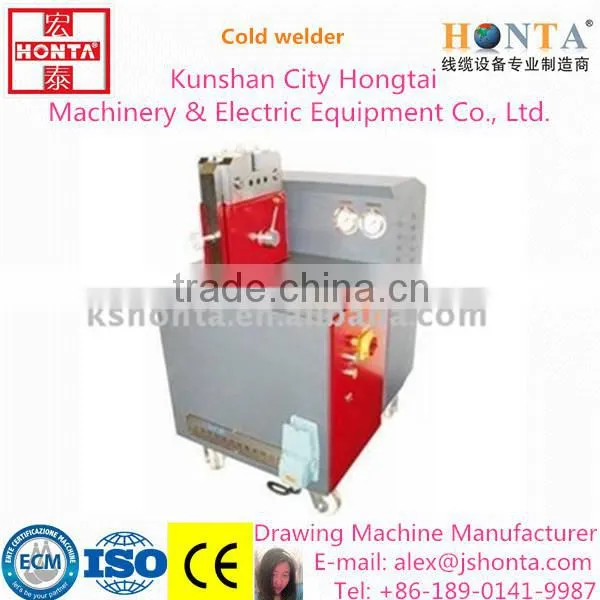

Electroplating Annealing & Tinning Sn, Ag, Ni, Zn	Dynamic spoolers	Twist Bunching 500P, 650P, 800P, 1000P,	Spooling & Coiling Spooler:   Basket Down Coiler	Auxiliaries Cold Welder,
