[Main Product] HONTA HT-5000NI.5M/S Wire Electrolytic Plating Machine And Line
- 100 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HONTA | Model Number: | HT-5000NI.5m/s |
Usage: | Coating |
Product Description
We provide you complete range of wire drawing equipment and comprehensive wire drawing solutions.
Copper Rod Breakdown Aluminum Rod Breakdown Individual Drive Rod Breakdown | Multi-Wire Drawing 4-wire, 8-wire, 16-wire | Medium Wire Drawing Large-Medium Wire Drawing | Copper Fine Wire Drawing With Annealer With Double Spooler Aluminum Fine Drawer | Electroplating Sn, Ag, Ni, Zn |
Annealing & Tinning
| Twist Bunching 500P, 630P, 800P, 1000P, 1250P | Spooling & Coiling Spooler: Compact, Single, Dual Basket Down Coiler | Motorised Wire Pay-Off | Auxiliaries Cold Welder, Powder Filter Pointing, Coil Packing, Spool, Bobbin, Reel
|
- This line can be in tandem with a rod breakdown machine with annealer to produce tinned copper wires.
- This line has advantages of high production capacity, high quality and low power consumption.
- With strong controllability of tin thickness and uniformity.
- The utilization rate of tin can reach to 98%.
- Equipped with the most advanced online exhaust and waste water treatment system to ensure the water quality after treatment can meet international environmental standards, so that it can achieve zero discharge and zero pollution in production process.
- High degree of automaticity.
- All parameters setting are controlled via computer program.
- Easy operation. Save labor. Lower costs.

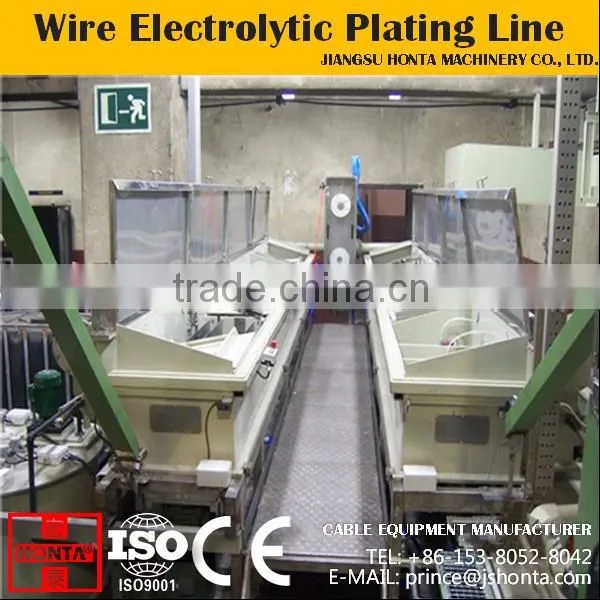

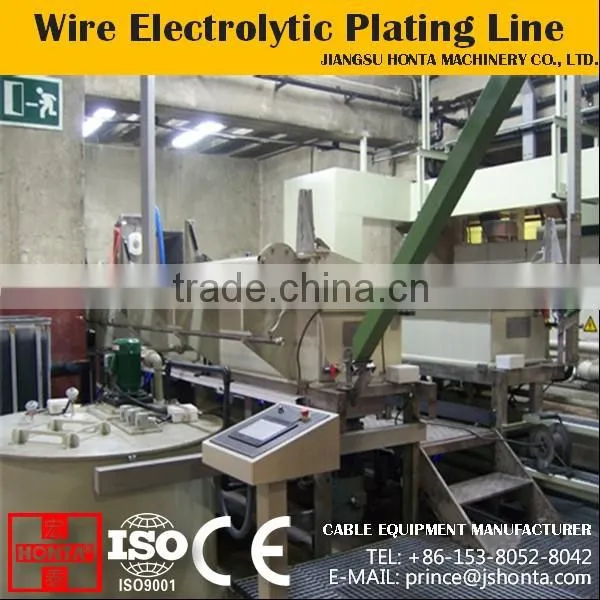

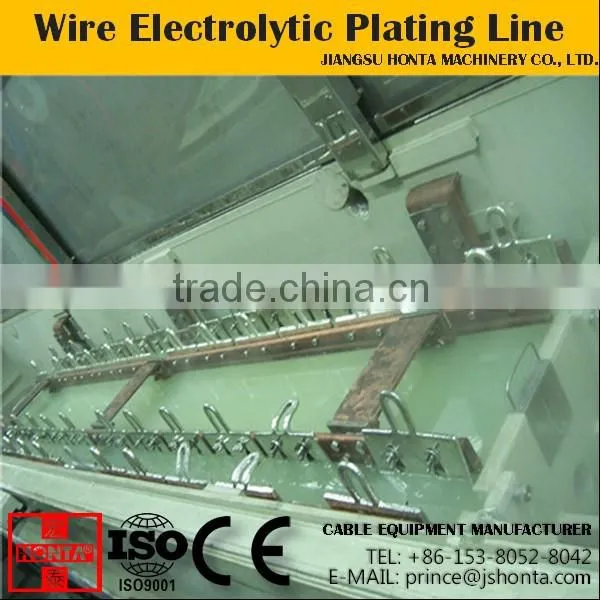

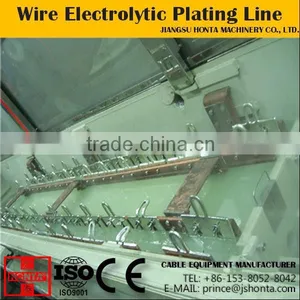

This series of wire electrolytic plating machines and production lines (Nickle-plating) are used to plating the Nickle of thickness between 1 to 60 μm on copper wires of diameter between 0.80 to 2.60 mm. Other equipments, i.e. drawing machines, annealers, pay-offs and take-ups, are also available to compose a complete production line for coated wire cable production. For any special requirements, you may contact us directly for further confirmation.
We have a series of wire electrolytic plating machines and production lines of this kind to satisfy your diversified demands. You can always find what you prefer:
DESCRIPTION | WIRE ELECTROLYTIC PLATING LINES | ||||
HT MODEL NO. | HT-10000Sn.15m/s | HT-6000Sn.15m/s | HT-5000Ni.5m/s | HT-5000Zn.15m/s | HT-3000Ag.10m/s |
MATERIAL | Cu+Sn | Cu+Sn | Cu+Ni | Cu, Cu alloy+Zn | Cu+Ag |
MACHINE SPEED | 15m/s | 15m/s | 5m/s | 15m/s | 10m/s |
NO. OF WIRES | 1 | 1 | 1 | 1 | 1 |
WIRE RANGE | 1.20~2.60mm | 1.00~2.60mm | 0.80~2.60mm | 0.80~2.60mm | 0.90~2.60mm |
COATING THICKNESS | 1~25μm | 1~20μm | 1~60μm | 1~60μm | 1~20μm |
PLATING CURRENT | 10000A max. | 6000A max. | 5000A max. | 5000A max. | 3000A max. |
PAY-OFF TYPE | in tandem with a drawing machine / bobbin type pay-off / basket type pay-off | ||||
TAKE-UP TYPE2 | HT-650C Down coiler | ||||
LINE DIMENSION | 8000*6000*2600mm |
Power Supply
^ 3-phase voltage ~3×380VAC (±10%)
^ Single-phase voltage ~220VAC (±10%)
^ Frequency 50Hz (±2%)
Note: This is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.
This MACHINE or PRODUCTION LINE that you ordered will be well packed on steel pallets in containers, suitable for long distance ocean freight transportation and the change of climate, and well protected against moisture and shocks.
