Help CenterWire Electrolytic Plating Lines(Sn, Ni, Ag)
Related Products
-
![[Main Product] HONTA Wire Electrolytic Plating Machine And Line](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[Main Product] HONTA Wire Electrolytic Plating Machine And LineUS$ 1 - 50,000MOQ: 1 Set -
HONTA HT-10000SN.15M/S WIRE ELECTROLYTIC PLATING MACHINE AND LINENegotiableMOQ: 1 Set
-
[Main Product] HONTA HT-6000SN.15m/s Wire Electrolytic Plating Machine And LineUS$ 1 - 50,000MOQ: 1 Set
-
[Main Product] HONTA HT-5000NI.5M/S Wire Electrolytic Plating Machine And LineUS$ 1 - 50,000MOQ: 1 Set
-
[Main Product] HONTA HT-5000ZN.15M/S Wire Electrolytic Plating Machine And LineUS$ 1 - 50,000MOQ: 1 Set
Specifications

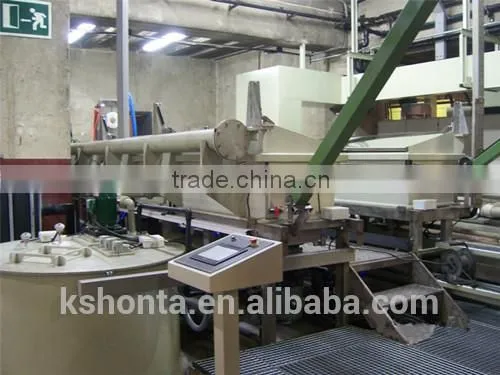

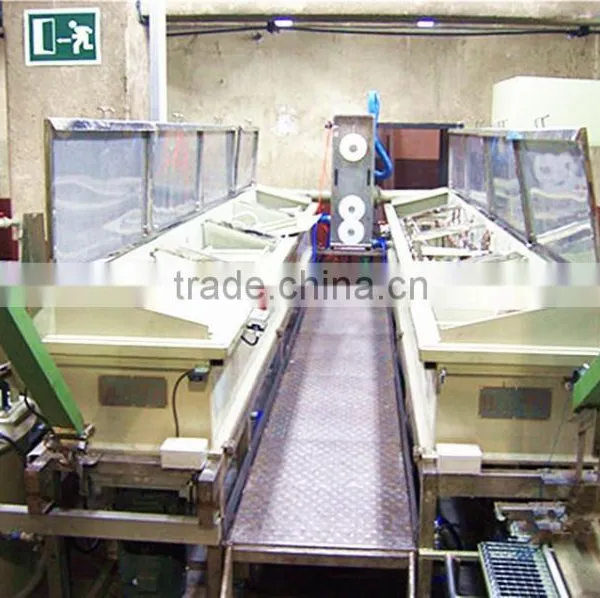

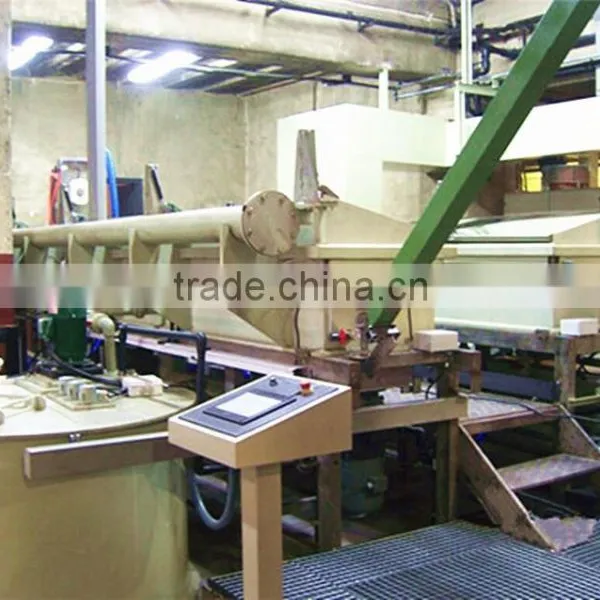

Electrolyic wire plating machine
1. Processes: degreasing; pickling; plating;
2. Applicable: Cu. wire; 15m/s;
Type of line : HT– 6000 Zinc- 15 m/s
Weight without bath liquids : approx. 8,000 kg
Weight with bath liquids : approx. 12,000 kg
Number of wires : one
Wire speed : max. 15m/s (combined with wire drawing machine or bobbin move motorised pay-off, if with coiler basket, the Max. speed is 5 m/s)
Wire material : Cu
Wire diameter range : 1.2 – 2.6 mm hard 1.2 – 3.0 mm soft
Condition of wire : low grease and free from oxides
Coating material : Sn
Coating thickness : 1 to 25 µm
Coating quality : as per DIN 40500, ASTM B 33
Total installed load : approx. 120 kW
Mains voltage : 3 x 380V / 50 Hz
Control voltage : 24 V DC, 230 V AC
Electric equipment : acc. to VDE and VBG 4
Max. ambient temperature : 45°C (hall temperature)
Plating current : 6000 A, 10 V
Degreasing current : 500 A, 10 V
Immersion length, plating : 140 m
Immersion length, degreasing : 40 m

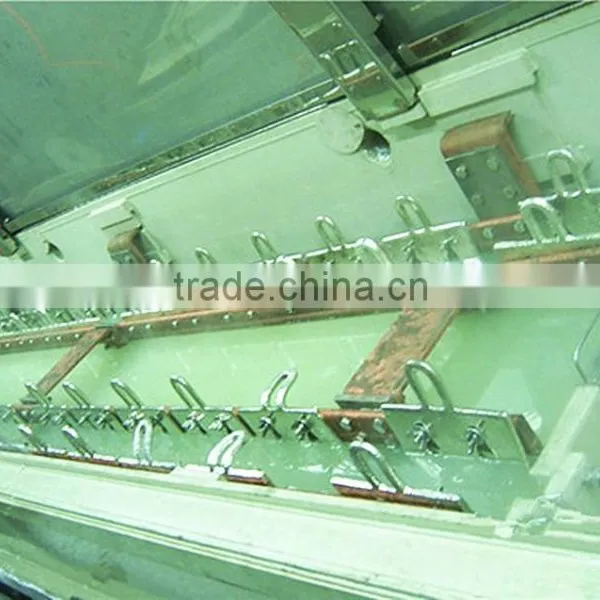

Groove dia. of current roller, plating : 400 mm, 27 grooves
Groove dia. of current roller, degreasing : 400 mm, 18 grooves
Send Inquiry to This Supplier
