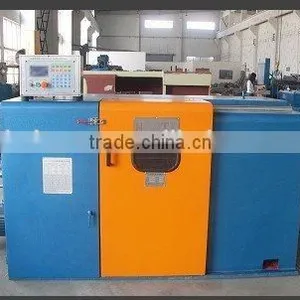

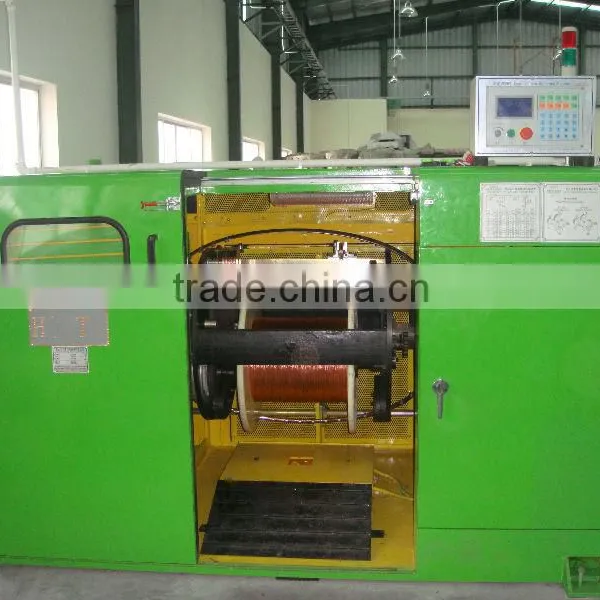

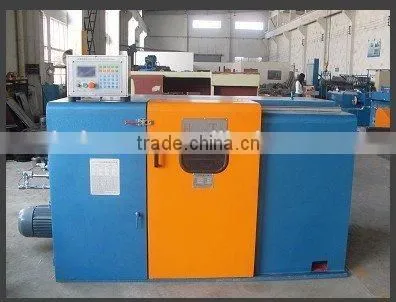

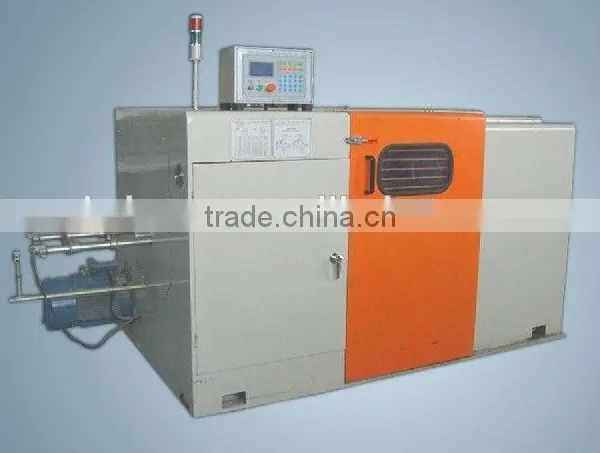

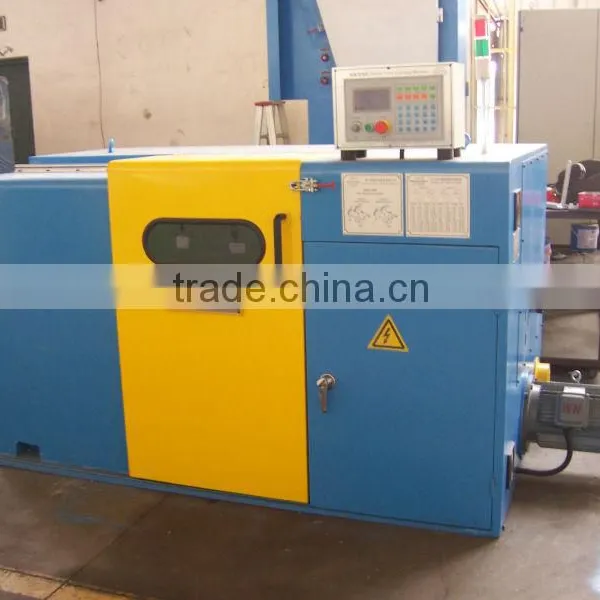

Help CenterHigh Speed Double Twist Bunching Machine HT-650P
Related Products
-
Motorized Pay-off RackNegotiableMOQ: 1 Set -
High Speed Double Twist Bunching Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
Bunning Machine ISO & CE Manufacturer of Wire and Cable MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
High Speed Double Twist Bunching Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
High Speed Double Twist Bunching MachineNegotiableMOQ: 1 Set
Technical data of HT– 650P bunching machine:
Applicable: for bunching bare copper wires
Wire diameter: φ 0.10mm –φ0.68mm,
Stranding sectional area: 0.05-6.0mm2
Take up bobbin: PND 630
Rotational speed: Max. 2000rpm/4000TPM
Drive: 11KW AC
Stranding pitches: 11.15- 100.00mm
Pitch change: Manually change pulling capstans
Bobbins loading and unloading: by hydraulic with motor
Traverse: polish rod traverse with adjustable width and distance.
Take-up tension control: magnetic particle clutch (new) 256 level auto control to ensure the stable tension from empty to full bobbin.
Brake:electromagnetic brake, Inside and outside wire break detector, automatically brake control
Noise level: ≤ 85dB(A)
Center height: 750mm
Stranding direction: leftward or rightward (S or Z)
Outside measurement (main machine) : approx. 2770X1480X1540
Weight: about 3500KG
