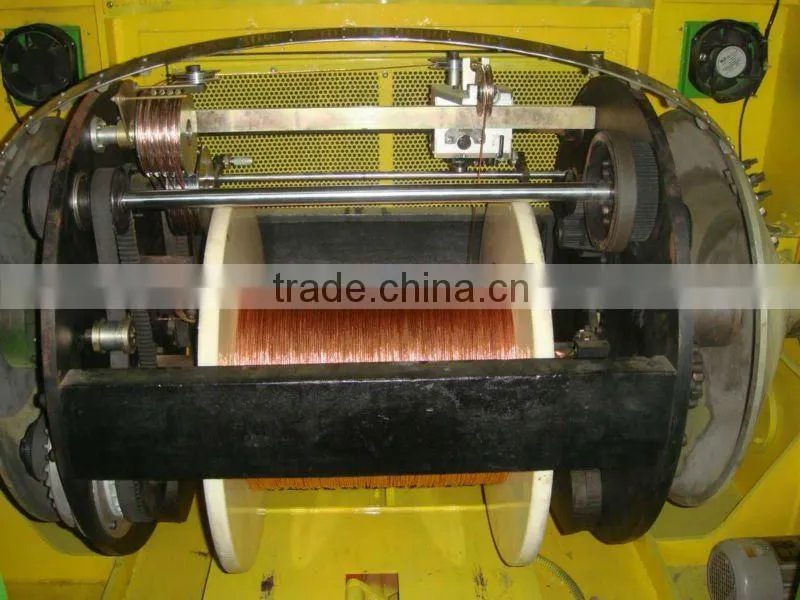

Help CenterHigh Speed Double Twist Bunching Machine Wire and Cable Machine
Related Products
-
Bunning Machine ISO & CE Manufacturer of Wire and Cable MachineUS$ 15,000 - 30,000MOQ: 1 Set -
High Speed Double Twist Bunching Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
High Speed Double Twist Bunching MachineNegotiableMOQ: 1 Set
-
800P Double Twist Bunching Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
Tubular Strander Stranding MachineNegotiableMOQ: 1 Set
Specifications
Copper Wire Twister1. Sectional area: 0.05-6mm2
2. Pitches: 5.6-57.99mm
3. Speed: 2000rpm/4000TPM
4. Section:9mm2

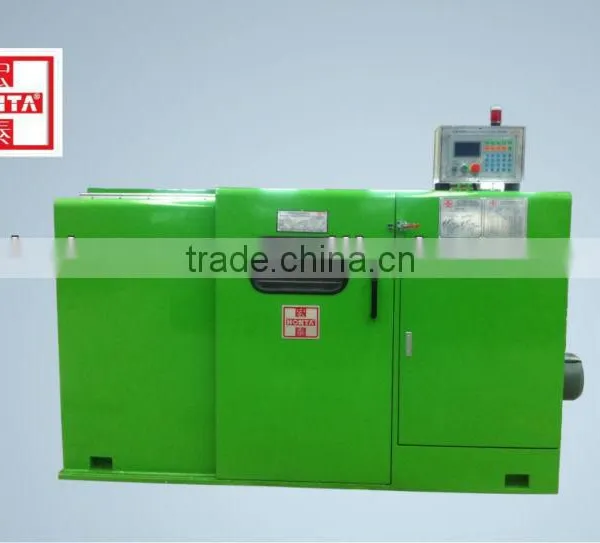

Technical data of HT– 650P bunching machine:
Part one Double twist bunching machine features:
One main motor driving system for bow, capstan,spooler
Equipped with noise absorb safety cover
Strand pitch obtained by means of change gears
All models can select accurate rolling tension to feedback to the control system.
Part two Main technical data:
Applicable: for bunching bare copper wires
Wire diameter: φ 0.10mm –φ0.68mm,
Stranding sectional area: 0.05-6.0mm2
Take up bobbin: PND 630
Rotational speed: Max. 2000rpm/4000TPM
Drive: 11KW AC
Stranding pitches: 11.15- 100.00mm
Pitch change: Manually change pulling capstans
Bobbins loading and unloading: by hydraulic with motor
Traverse: polish rod traverse with adjustable width and distance.
Take-up tension control: magnetic particle clutch (new) 256 level auto control to ensure the stable tension from empty to full bobbin.
Brake:electromagnetic brake, Inside and outside wire break detector, automatically brake control
Noise level: ≤ 85dB(A)
Center height: 750mm
Stranding direction: leftward or rightward (S or Z)
Outside measurement (main machine) : approx. 2770X1480X1540
Weight: about 3500KG
