Home > Manufacturing & Processing Machinery > Manufacturing Equipment for Electrical & Electronic Product > Cable Extrusion Machine > Double Twist Bunching Machine Wire and Cable Equipment

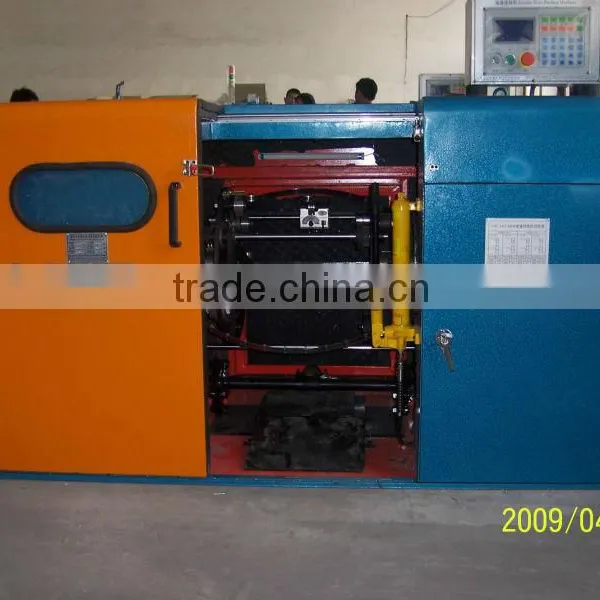

Double Twist Bunching Machine Wire and Cable Equipment

Name: Double Twist Bunching Machine Wire and Cable Equipment
Brand: HONTA
SKU: 111660669

Double Twist Bunching Machine Wire and Cable Equipment thumbnail-1

Double Twist Bunching Machine Wire and Cable Equipment photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HONTA

Model Number:

HT-650P

Contact Supplier Request Quote Chat Now

Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HONTA

Model Number HT-650P

Usage Twisting

Specifications

Double twist bunching machine:
1.Applicable: bare copper, tinned copper wires, CCA
2.Speed: 2000rpm/4000TPM
3.Section:9mm2

Technical Tata for Double Twist Bunching Machine
Machine type	HT-300P	HT-400P	HT- 500P	HT-650P
Main usage	Multi-copper wires intertwist
Stranding sectional area(mm²)	0.035-1.45	0.035-1.5	0.05 - 2.5	0.18-9
Dia. Of single copper wire(mm)	φ0.05-φ0.28	φ0.08-φ0.45	φ0.1-φ0.68	φ0.38-φ1.0
Distance of intertwist	2.2-17.9 (1.2mm-28mm special)	4.08-31.5 (1.67mm-31.5mm special)	5.6-57.99 (or as customer`s request)	12.6-96.8mm
Electric motor	Tri-phase 4kw frequencey conversion speed-control	Tri-phase 5kw frequencey conversion speed-control	Tri-phase 5.5kw frequencey conversion speed-control	Tri-phase 7.5kw frequencey conversion speed-control
The Max. rotational speed of main axis	4000 r/min	3000 r/min	3000 r/min	2000 r/min
Wire spooling tension structure	256 Magnetic clutch automatic adjustment
The size of bobbins	Outer dia. 300X total length 180mm	φ400mm	φ500mm	φ630mm
The largest capacity of bobbins	60KG	150KG	250KG	400KG
bobbin loading and unloading organization	Hand-movement-hydraulic pressure	bobbins Up and down by motor-driven
traverse	Polished rod-axletree style device of drop-out line, distance of drop-out line, drop-out line changeable	Polished rod-axletree style device of drop-out line, distance of drop-out line, drop-out line changeable
The numeration of intertwist wire length	Digital display, length-enactment auto-stop
wire broken detective	Stop machine by stop the inner and outer wire
The height of main axis from groud	635mm	685mm	700mm	850mm
Machine external dimensions	2150 X 1400 X 1200	2400 X 1100 X 1250	2850 X 1500 X1660	2850 X 1500 X1660
Net weight	950KG	1500KG	2800KG	3500KG
