Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Pressure Vessel > High Pressure Industrial Nitrogen Gas Cylinder Price
US$ 21 - 332
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Material:
Steel
Use:
Industrial Gas
Pressure:
High
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Compressed Nitrogen Gas CylindersUS$ 21 - 332MOQ: 200 Pieces -
High Pressure Industrial Nitrogen Gas Cylinder SizesUS$ 21 - 332MOQ: 200 Pieces
-
High Pressure Industrial Nitrogen Gas Cylinder CapacityUS$ 21 - 332MOQ: 200 Pieces
-
High Pressure Seamless Steel Nitrogen Gas CylinderUS$ 21 - 332MOQ: 200 Pieces
-
High Pressure Seamless Steel Oxygen Gas CylinderUS$ 21 - 332MOQ: 200 Pieces
Material
Steel
Use
Industrial Gas
Pressure
High
Place of Origin
Hebei, China
Brand Name
ZP
Model Number
WMA
Specifications
high pressure industrial nitrogen gas cylinder price1. O.D.: 140/152/219/229mm
2. Capacity: 4-50L
3. WP: 15/20/30MPa
high pressure industrial nitrogen gas cylinder price
The high pressure industrial nitrogen gas cylinder price are different from different working pressure with capacity. They are all made of high quality steel, and are supposed to be used repeatedly for keeping nitrogen gas which is used for replacement gas and protection gas for chemical industry, metallurgy, and electric industry.
| No. | Outside diameter | Capacity | Gas capacity | Design | Length | Weight | WP | TP | Material |
| MM | V(L) | (M3) | Wall thickness | Approx L | Approx W | MPa | MPa | ||
| S(MM) | (MM) | (Kg) | |||||||
| 1 | 140 | 2.5 | 0.37 | 3.6 | 390 | 7 | 15 | 22.5 | 37Mn |
| 3.2 | 0.48 | 440 | 7.5 | ||||||
| 4.0 | 0.60 | 500 | 8.3 | ||||||
| 5.0 | 0.75 | 575 | 9.3 | ||||||
| 6.3 | 0.94 | 670 | 10.6 | ||||||
| 7.0 | 1.05 | 720 | 11.3 | ||||||
| 8.0 | 1.20 | 795 | 12.3 | ||||||
| 9.0 | 1.35 | 870 | 13.3 | ||||||
| 10.0 | 1.50 | 945 | 14.3 | ||||||
| 2 | 152 | 7 | 1.1 | 4 | 635 | 12 | 15 | 22.5 | 37Mn |
| 8 | 1.2 | 700 | 13 | ||||||
| 9 | 1.4 | 760 | 14 | ||||||
| 10 | 1.5 | 825 | 15 | ||||||
| 12 | 1.8 | 850 | 17 | ||||||
| 3 | 219 | 20 | 3.0 | 5.7 | 850 | 31.3 | 15 | 22.5 | 37Mn |
| 25 | 3.7 | 1000 | 36.4 | ||||||
| 32 | 4.8 | 1210 | 43.6 | ||||||
| 34 | 5.1 | 1270 | 45.6 | ||||||
| 36 | 5.4 | 1330 | 47.7 | ||||||
| 38 | 5.7 | 1390 | 49.7 | ||||||
| 40 | 6.0 | 1450 | 51.7 | ||||||
| 45 | 6.7 | 1600 | 56.8 | ||||||
| 4 | 229 | 20 | 4.0 | 6.2 | 815 | 33.8 | 20 | 30 | 34CrMo4 |
| 25 | 5.0 | 950 | 39 | ||||||
| 32 | 6.4 | 1145 | 46.5 | ||||||
| 36 | 7.2 | 1255 | 50.7 | ||||||
| 38 | 7.6 | 1310 | 52.8 | ||||||
| 40 | 8.0 | 1365 | 54.9 | ||||||
| 45 | 9.0 | 1505 | 60.2 | ||||||
| 50 | 10.0 | 1640 | 65.4 | ||||||
| 63 | 12.6 | 2000 | 79.2 | ||||||
| 5 | 232 | 20 | 6.0 | 8.6 | 719 | 46 | 30 | 45 | 34CrMo4 |
| 25 | 7.5 | 859 | 53.5 | ||||||
| 32 | 9.6 | 1056 | 64 | ||||||
| 36 | 10.8 | 1169 | 70 | ||||||
| 38 | 11.4 | 1225 | 73 | ||||||
| 40 | 12.0 | 1281 | 76 | ||||||
| 45 | 13.5 | 1422 | 83 | ||||||
| 50 | 15.0 | 1562 | 90.5 |

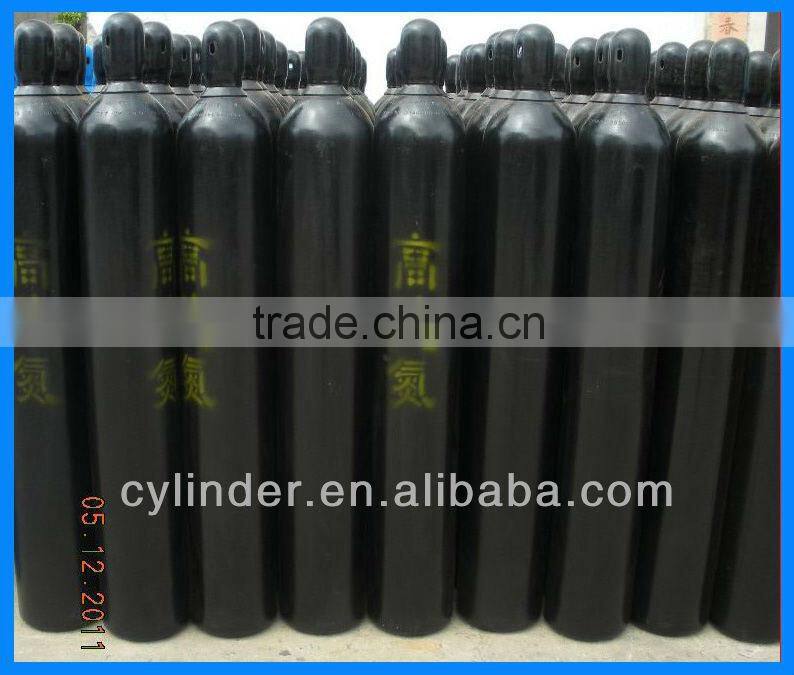

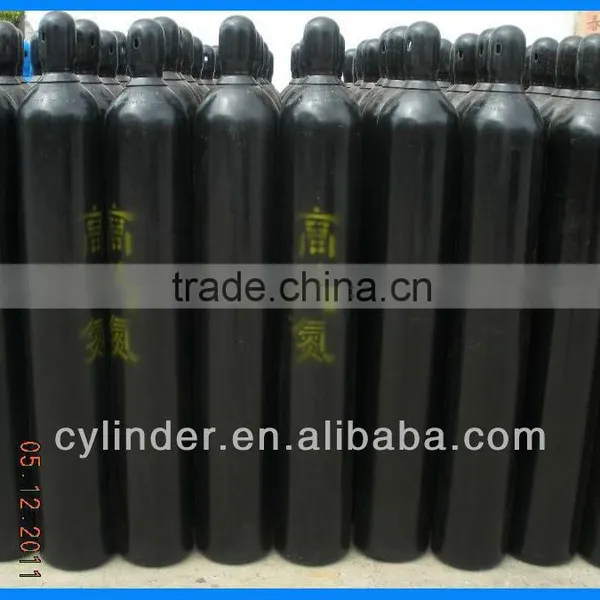

Product Picture
