concrete reinforcement wire mesh

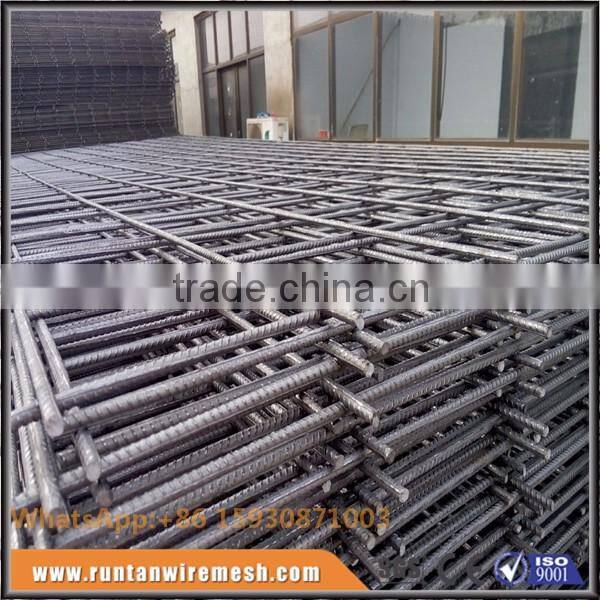

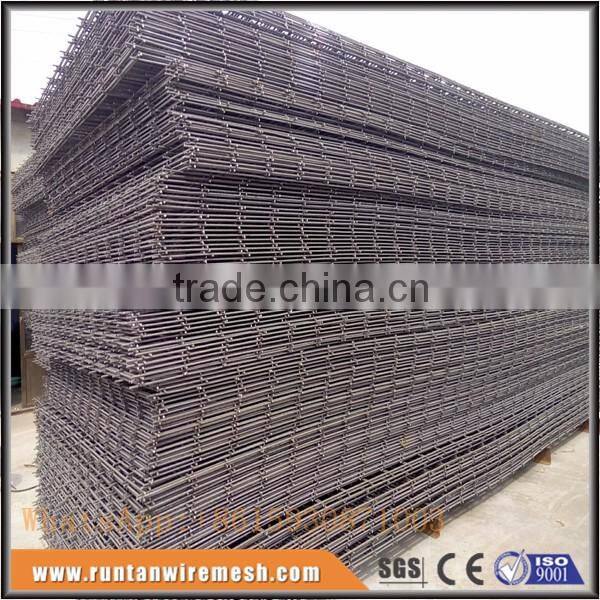

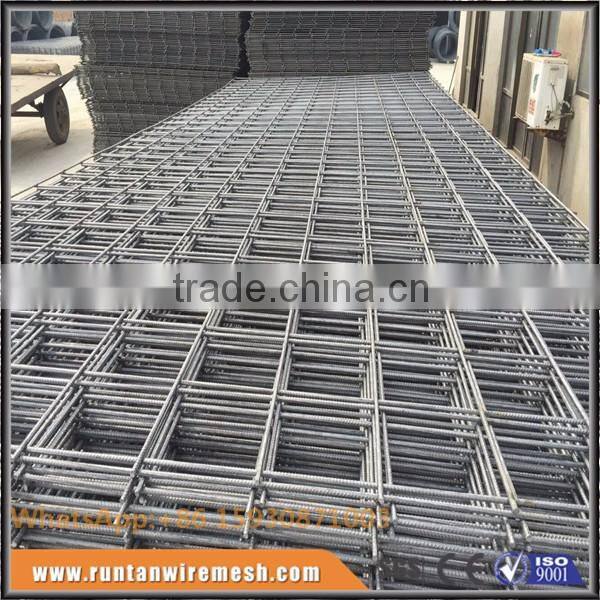

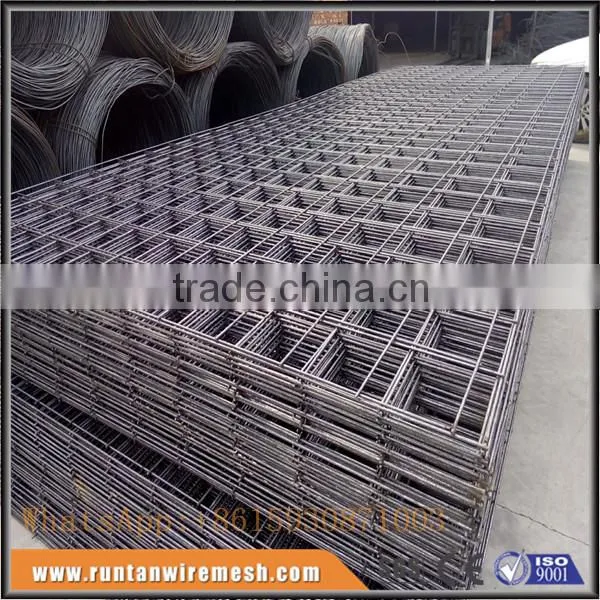

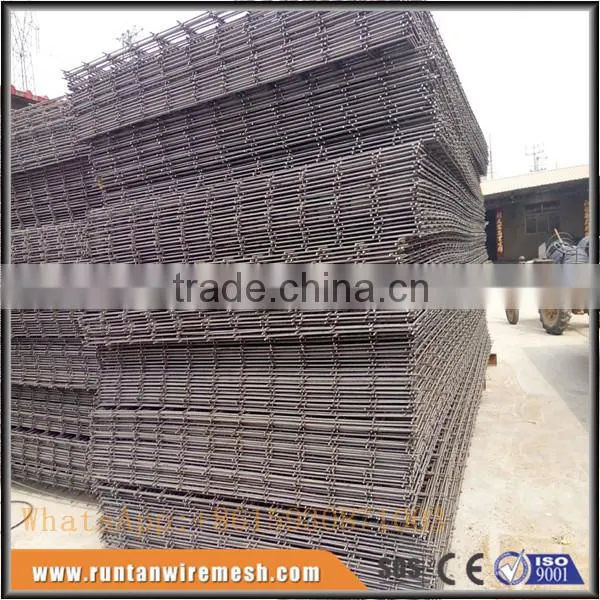

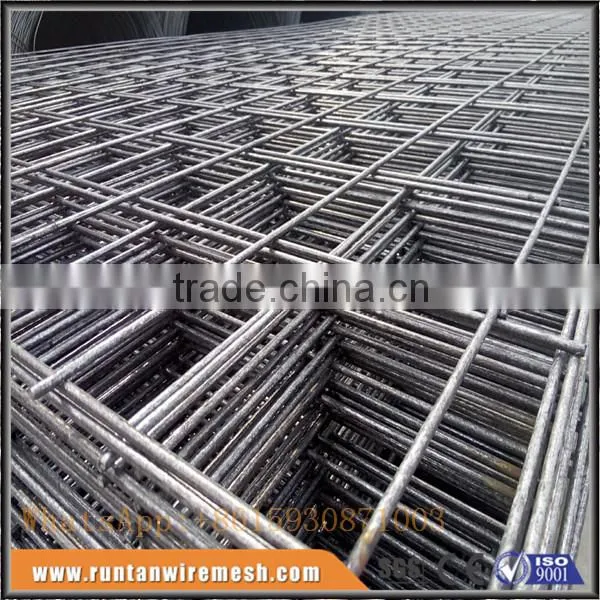

Steel Reinforcing mesh is mostly welded mesh panel or sheet made with carbon steel bars in a rectangular opening, square opening and special forms. With or without hot dipped galvanizing protection for the interior wall constructions and work conditional not exposed to the weather. Steel bar concrete reinforcing mesh is used in slabs-on-grade, tilt-wall panels, airport runways, highway construction, bridge decks and other building projects.
Steel Bar Welded Mesh Applications:

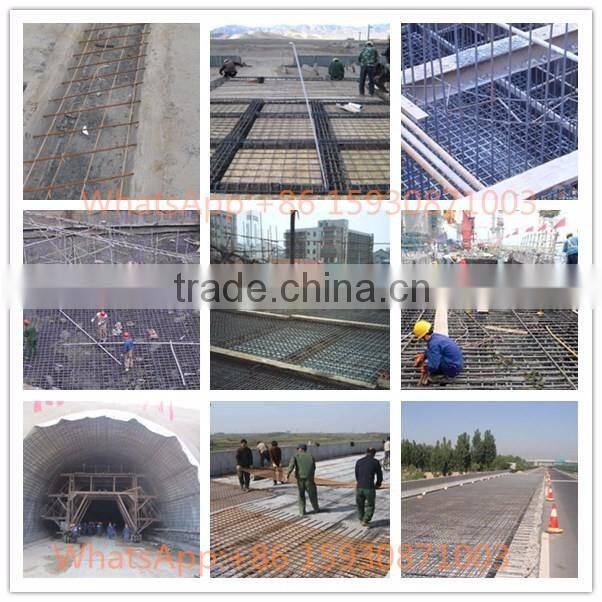

Reinforcing bar welded wire fabric are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body, beams and columns, slab floor system and other structures.
Features & Benefits of Using Steel Bar Reinforcing:
Saves time
Faster Placement
Reduces Labor Cost
D.O.T. approved products are available

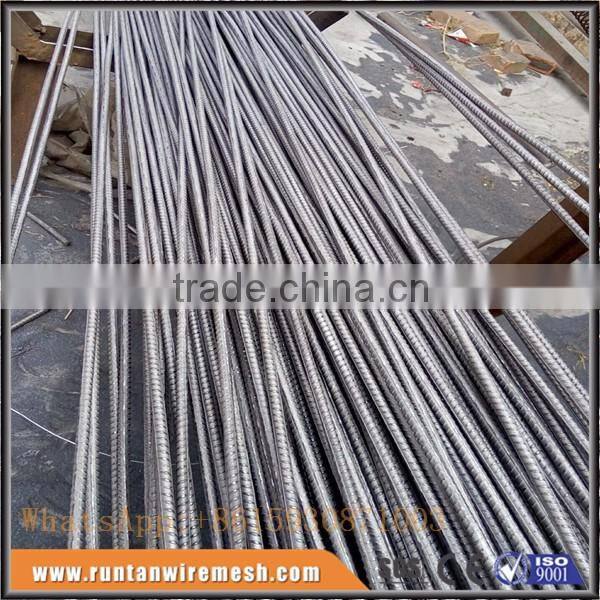

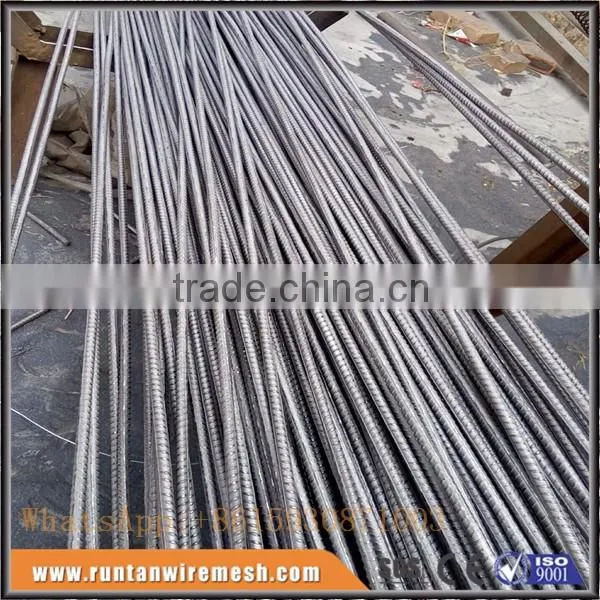

Chemical composition of steel bar materials:
* Phosphorous P: max 0.060%
* Carbon Equivalent Value Ceq: max 0.42%
* Carbon C: max 0.25%
* Sulphur S: max 0.060%
* Where Ceq = C + Mn/6 + (Cr+V+Mo)/5 + (Cu+Ni)/15
Concrete Reinforcing Mesh Type A:Rectangular Reinforcing Mesh Standard Sheets - 6 m (length) x 2.4 m (width) = 14.4m2
| Reference No | Standard Unit | Longitudinal Wires (mm) | Cross Wires (mm) | Mass (kg) |
| RL1218 | Sheet | 11.9 @ 100 | 7.60 @ 200 | 157 |
| RL1118 | Sheet | 10.7 @ 100 | 7.60 @ 200 | 131 |
| RL1018 | Sheet | 9.5 @ 100 | 7.60 @ 200 | 109 |
| RL918 | Sheet | 8.6 @ 100 | 7.60 @ 200 | 94 |
| RL818 | Sheet | 7.6 @ 100 | 7.60 @ 200 | 79 |
| RL718 | Sheet | 6.75 @ 100 | 7.60 @ 200 | 68 |
Concrete Reinforcing Mesh Type B: Square Reinforcing Mesh Standard Sheet - 6 m (length) x 2.4 m (width) = 14.4m2
| Reference No |
Standard Unit |
Longitudinal Wires (mm) | Cross Wires (mm) |
Edge Wires (mm) |
Mass (kg) |
| SL81 | Sheet | 7.6 @ 100 | 7.6 @100 | - | 105 |
| SL102 | Sheet | 9.5 @ 200 | 9.50 @ 200 | 6.75 @ 100 | 80 |
| SL92 | Sheet | 8.6 @ 200 | 8.60 @ 200 | 6 @ 100 | 66 |
| SL82 | Sheet | 7.6 @ 200 | 7.60 @ 200 | 5.37 @ 100 | 52 |
| SL72 | Sheet | 6.75 @ 200 | 6.75 @ 200 | 4.77 @ 100 | 41 |
| SL62 | Sheet | 6 @ 200 | 6 @ 200 | 4.77 @ 100 | 33 |
| SL52 | Sheet | 5 @ 200 | 4.77 @ 200 | 4.77 @ 100 | 21 |
Concrete Reinforcing Mesh Type C: Trench Reinforcing Mesh
| Reference No |
Length (m) |
Width (m) |
Longitudinal Wires(mm) | Cross Wires (mm) |
Mass (kg) |
| L8TM200 | 6.0 | 0.2 | 7.6 @ 100 | 4 @ 300 | 7 |
| L8TM300 | 6.0 | 0.3 | 7.6 @ 100 | 4 @ 300 | 9 |
| L8TM400 | 6.0 | 0.4 | 7.6 @ 100 | 4 @ 300 | 12 |
| L8TM500 | 6.0 | 0.5 | 7.6 @ 100 | 4 @ 300 | 14 |
| L11TM200 | 6.0 | 0.2 | 10.65 @ 100 | 4.77 @ 300 | 13 |
| L11TM300 | 6.0 | 0.3 | 10.65 @ 100 | 4.77 @ 300 | 18 |
| L11TM400 | 6.0 | 0.4 | 10.65 @ 100 | 4.77 @ 300 | 22 |
| L11TM500 | 6.0 | 0.5 | 10.65 @ 100 | 4.77 @ 300 | 27 |
| L12TM200 | 6.0 | 0.2 | 11.9 @ 100 | 4.77 @ 300 | 16 |
| L12TM300 | 6.0 | 0.3 | 11.9 @ 100 | 4.77 @ 300 | 22 |
| L12TM400 | 6.0 | 0.4 | 11.9 @ 100 | 4.77 @ 300 | 27 |
| L12TM500 | 6.0 | 0.5 | 11.9 @ 100 | 4.77 @ 300 | 33 |
Welcome to your inquiry on our concrete reinforcement wire mesh.
The reason you choose us | |
Quality |
1.If necessary, you can get a sample to confirm the product quality, and then we produce according to your requirement; 2.Or you send us your samples, and we make the product according to your quality. |
|
Ordering |
1. The two sides communicate to confirm product specification. 2. Signed a contract. 3. Client pay 30% prepayment. 4. Production. 5. Packaging & Delivery. 6. Client finish the balance payments. 7. We send the original Bill of Lading to the client. |
After service |
of related production, shipment, delivery and other production conditions. 2. In accordance with the stipulated time of shipment delivery, guaranteed delivery and supply capacity. 3. Encounter any quality problems can always contact us, we will promptly communicate timely replacement of the goods
|
