Help CenterGB5099 Hydrogen Gas Cylinder
Related Products
GB5099hydrogen gas cylinder
The GB5099 hydrogen gas cylinder are all made of high quality steel, and are supposed to be used repeatedly for keeping hydrogen gas which mainly is used for industry.
| No. | Outside diameter | Capacity | Gas capacity | Design | Length | Weight | WP | TP | Material | |
| MM | V(L) | (M3) | Wall thickness | Approx L | Approx W | MPa | MPa | |||
| S(MM) | (MM) | (Kg) | ||||||||
| 1 | 219 | 20 | 3.0 | 5.7 | 850 | 31.3 | 15 | 22.5 | 37Mn | |
| 25 | 3.7 | 1000 | 36.4 | |||||||
| 32 | 4.8 | 1210 | 43.6 | |||||||
| 34 | 5.1 | 1270 | 45.6 | |||||||
| 36 | 5.4 | 1330 | 47.7 | |||||||
| 38 | 5.7 | 1390 | 49.7 | |||||||
| 40 | 6.0 | 1450 | 51.7 | |||||||
| 45 | 6.7 | 1600 | 56.8 | |||||||
| 2 | 229 | 20 | 4.0 | 6.2 | 815 | 33.8 | 20 | 30 | 34CrMo4 | |
| 25 | 5.0 | 950 | 39 | |||||||
| 32 | 6.4 | 1145 | 46.5 | |||||||
| 36 | 7.2 | 1255 | 50.7 | |||||||
| 38 | 7.6 | 1310 | 52.8 | |||||||
| 40 | 8.0 | 1365 | 54.9 | |||||||
| 45 | 9.0 | 1505 | 60.2 | |||||||
| 50 | 10.0 | 1640 | 65.4 | |||||||
| 63 | 12.6 | 2000 | 79.2 |

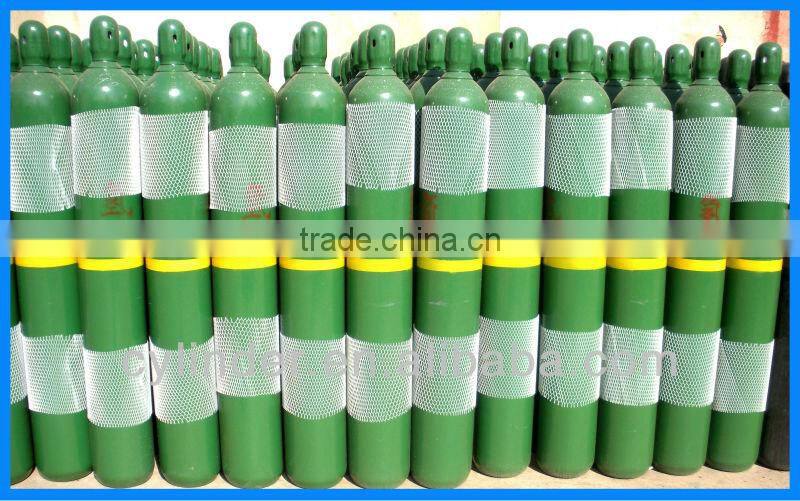

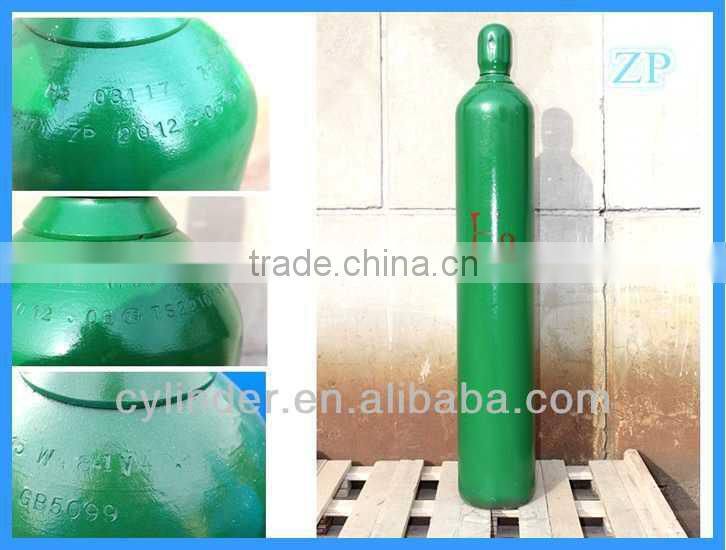

Product picture
Zhuolu High Pressure Vessel Co., Ltd has a history of nearly 40 years in pressure vessel line which is established on year 1958. As a state nominated designing and manufacturing factory in Class A and Class B, it is the exclusive company which produces high pressure gas cylinders and accumulators in Hebei Province.
Our company has advanced manufacturing equipment, inspective examination and testing method, strong technical resources, and a qualified management system. All of its manufacturing and testing is carried out under the supervision of a third party.
We got the certificates of ISO9001 and CE in 2004. Our products are exported to Europe, the Americas, Asia, Africa and other countries all over the world while has sound reputation in home and abroad at the same time. Our company has its own import & export right and can supply different gases from famous gas companies in china, cylinder accessories in addition to its own products. We will meet all the requirements of our customers from home and abroad with good and worm service.
We warmly welcome all the new and old customers to visit, guide and negotiate business with us.
Packing: Customized packing. 1.By nylon net 2. By carton 3.By pallet
Delivery: About 30 days after receipt of the deposit.
1. Prompt reply for all inquiries within 24 hours
2. On time delivery and satisfied after-sales service.
3. Customized valve, cylinder color and stamping accepted.
4. Quality first Safety first
5. One-stop service for cylinder producing and gas filling.
