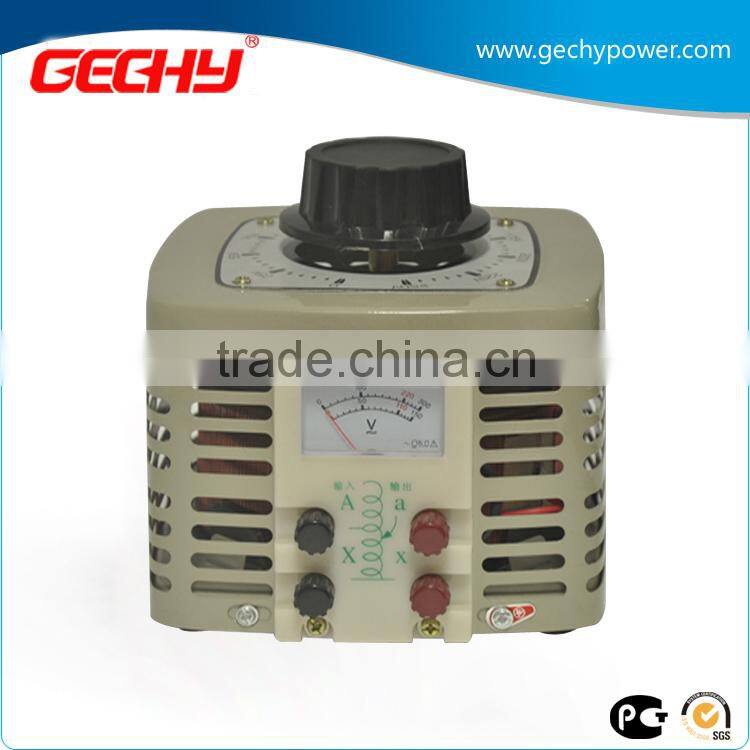

TDGC2-0.2KVA single phase dry type self-cooled adjustable contact type voltage regulator
Introduction:
TDGC2 voltage regulator is in the structure of adjustable self-coupling transformer. It winds coil on ring shaped core, the brush fits close to the polished surface of coil under the press effect of spring, rotating shaft drives the brush holder and make brush slide along with the coil surface. so that to change the contact position of brush.
Application:
Widely used in industries(such as chemical,metallurgy,instruments,meters,light industry,etc),public service household electrical appliances,used to realize voltage regulation,temperature control,speed adjustment,light modulation,power control,etc.
Advantage:
•Undistorted waveform
•Compact volume
•Light weight
•High efficiency
•Convenient operation
•High accuracy
• Reliable
• Long-term operation
Product Parameter :
Model |
Max output capacity(kVA) |
Phase |
Rated input voltage(V) |
Rated output voltage(V) |
Max output current(A) |
Overall size(W*D*L)mm |
QTY(pcs) |
G.W(Kg) |
TDGC2-0.2KVA |
0.2 |
1
|
220V |
0-250V |
0.8 |
105*130*130 |
12 |
26.5 |
TDGC2-0.5KVA |
0.5 |
220V |
0-250V |
2 |
125*150*130 |
8 |
28 |
|
TDGC2-1KVA |
1 |
220V |
0-250V |
4 |
180*200*210 |
4 |
26 |
|
TDGC2-2KVA |
2 |
220V |
0-250V |
8 |
180*200*210 |
4 |
33 |
|
TDGC2-3KVA |
3 |
220V |
0-250V |
12 |
210*230*235 |
2 |
23 |
|
TDGC2-5KVA |
5 |
220V |
0-250V |
20 |
240*285*250 |
1 |
18 |
|
TDGC2-10KVA |
10 |
220V |
0-250V |
40 |
240*335*400 |
1 |
40 |
|
TDGC2-15KVA |
15 |
220V |
0-250V |
60 |
240*335*560 |
1 |
58 |
|
TDGC2-20KVA |
20 |
220V |
0-250V |
80 |
250*340*290 |
1 |
60 |
|
TSGC2-1.5KVA |
1.5 |
3
|
380V |
0-430V |
2 |
125*180*340 |
1 |
12 |
TSGC2-3KVA |
3 |
380V |
0-430V |
4 |
180*250*430 |
1 |
21.5 |
|
TSGC2-5KVA |
5 |
380V |
0-430V |
8 |
180*250*460 |
1 |
27 |
|
TSGC2-10KVA |
10 |
380V |
0-430V |
12 |
210*250*590 |
1 |
35 |
|
TSGC2-15KVA |
15 |
380V |
0-430V |
20 |
240*330*560 |
1 |
56 |
|
TSGC2-20KVA |
20 |
380V |
0-430V |
27 |
240*330*580 |
1 |
60 |
|
TSGC2-30KVA |
30 |
380V |
0-430V |
40 |
350*420*106 |
1 |
150 |
1.Enquiry answered within 24 hours
Don't hesitate to send inquiry to us when you see our products, we will do our best to reply as soon as possible and help you get more profit here
2.OEM/ODM available
you can supply your logo and package design to us, we will do that according to your requirements
3.Customized products supplied
we have 2 electronic engineers, so we can produce all kinds of stabilizers according to your thought
4.Sample for you
Telling me your specific address and your requirements of stabilizers, sample can be offered for test before order, but customer will have to pay the sample charger and freight charge. The sample will be refunded cost when order confirmed.
5. 2 years warranty available:
Every stablizers has 1pcs qualification and 1pcs after-sale service card, customers can get 2 years warranty with the both card
Q 1. what's the payment terms?
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
