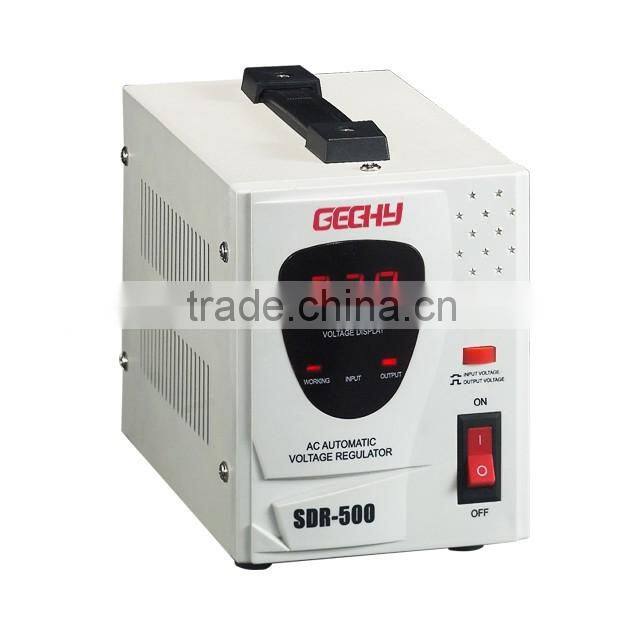

SDR-500VA 400w electronical 220V digital display Relay control full AC automatic voltage regulator/stabilizer
SDR Series LED relay type full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology.It has the advantages of high efficiency,beautiful appearance and reliable performance etc.Stabilizer “SDR” relay type designed to operate in an environment that requires high speed voltage regulation.Relays are used as switching elements have a response time comparable to milliseconds.This type of stabilizer is the perfect way to protect the devices with the lowest response time in electricity changes.
Advantage:
Number of relays:3+1
The high output voltage accuracy(220V±8%)
Wide stabilization range
High speed stabilization
Two euro socket
High accuracy
Information LED-display
Modem design
Microprocessor control
The multistage defense
Product Parameter
Model |
SDR-500 |
SDR-1000 |
SDR-2000 |
SDR-3000 |
SDR-5000 |
SDR-8000 |
SDR-10000 |
Power capacity |
400W |
800W |
1600W |
2400W |
4000W |
6400W |
8000W |
Input voltage |
AC140-260V |
||||||
Output voltage |
220V±8% |
||||||
Phase |
Single Phase |
||||||
Frequency |
50-60Hz |
||||||
Adjust time |
1 second |
||||||
Type of stabilization |
Relay |
||||||
Display |
LED digital display |
||||||
Protection over voltage |
250±2V |
||||||
Protection lack voltage |
180±2V |
||||||
Mode Bypass |
No |
No |
No |
No |
Yes |
Yes |
Yes |
Efficiency |
98% |
||||||
Type of connection |
Terminal block |
||||||
Degree of protection |
IP20 |
||||||
Delay |
5 second |
||||||
Temperature protection |
110°C±10°C |
||||||
Ambient Temperature |
-10~+45°C |
||||||
Relative humidity |
80% |
||||||
Waveform distortion |
No additional wave form distortion |
||||||
|
Dimension of device (L*W*H)(mm) |
210*160*110 |
210*160*110 |
240*190*140 |
240*190*140 |
350*250*220 |
350*250*220 |
410*250* 220 |
Weight of device |
2.2Kg |
2.6Kg |
5.1Kg |
5.4Kg |
10.1Kg |
10.1Kg |
15.6Kg |
SDR-500VA 400w electronical 220V digital display Relay control full AC automatic voltage regulator/stabilizer SDR-500VA 400w electronical 220V digital display Relay control full AC automatic voltage regulator/stabilizer SDR-500VA 400w electronical 220V digital display Relay control full AC automatic voltage regulator/stabilizer
Q 1. what's the payment terms?
A. usually it will take about two weeks for production
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
A.If you have good quantity,it absolute no problem to do OEM.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
