802.11n 300Mbps High Power 1000mw Wireless Router With POE
Specifications
1. POE Router 803.11af PoE function,
2. Speed up to 300M
3. AP/Client Bridge/Client Router/WDS/Bridge/ WDS Repeater/VPN
Wireless POE N Router is a combined wired/wireless network connection device designed specifically for small business, office,and home office networking requirements. It complies with the IEEE 802.11n (Draft 2.0) standard with wireless transmission speeds of up to 150M/ 300M. The router features 4 10/100Mbpsports to achieve the most effective data transmission. It also works well with other 11g and 11n protocol wireless products.
Furthermore it supports MSSID up to 4 ,which offers easy wireless network isolation for your data safety and VPN tunnels provide site-to-site security connection;also support VLAN,which allows networks administrator to segregate different services or applications to different designated users, making it more scalable.
1.2. Features
Complies with IEEE 802.11n/g/b,IEEE 802.3, IEEE 802.3u standards.
Ralink 3052 chipset with 11N wifi standard support speed up to 300Mbps
Multi-operation mode support,AP/Client Bridge/Client Router/WDS Bridge/WDS Repeater/VPN Client
etc
Complies with 803.11af PoE function, compatible with standard 48V POE adapter
High output transmission power and receiving sensitivity optimized
Provides throughput monitor indicating the current wireless throughput.
Multiple SSID up to 4
QoS:Traffic Control & WMM
VLAN Tags based Port, Supports Layer 2 User Isolation.
Transmitt power and distance control(ACK Timeout)
Support P2MP(Point to Multi-point)
WPA2/WPA/AES/TKIP,SSH and 802.1x Authenticator
Supports PPPoE, Dynamic IP, Static IP Internet Access
Built-in NAT and DHCP server supporting Address Reservation
Supports UPnP, Dynamic DNS, Static Routing
Specification
Standard |
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP,NAT,PPPoE, IEEE802.3af |
Interface |
LAN 4 10/100M Auto MDI/MDIX RJ45 ports.; WAN 1 10/100M Auto MDI/MDIX RJ45 port |
Frequency Band |
2.4GHz-2.4835GHz |
Data Rate |
11n: 300/270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(adaptive) 11b: 11/5.5/2/1M(adaptive) |
Wireless Transmit power |
11b: 19±1 dBm 11g:: 15±1 dBm 11n:: 14±1 dBm) |
Transmission Distance |
Outdoor :100m |
Access Protocol |
CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client ,UDP, DDNS, |
Security |
WEP 64/128bit;MAC based Association; SSID broadcast disable; Wi-Fi Protection Access (TBD),WPA,WPA2, Built-in firewall |
RF Output Power(Typical) |
802.11n:15dBm for OFDM mode |
802.11g: 17dBm for OFDM mode | |
802.11b: 20dBm fro CCK mode | |
Receive Sensitivity |
11n : -70dBm@10% PER 11g : -70dBm@10% PER 11b: -85dBm@8% PER |
Channels: |
2412~2462 MHz (US) 11 channels 2412~2472 MHz (EU) 13 channels 2412~2484 MHz (Japan) 14 channels |
WLAN Modulation Scheme |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
SDRAM |
32M |
Flash |
4M |
Antenna |
Two detachable 5dBi Antenna |
LED |
POWER, Internet, Wlan, Lan/Wan, External power supply |
Dimension (mm) |
201.5(L) x 142(W) x 31(H) mm |
Weight |
|
Operation Temperature |
0°C ~ 40°C ambient temperature |
Storage Temperature |
-20% ~ 70% ambient temperature |
Humidity |
10% ~ 90% (Non-condensing) |
Support system |
Windows® 2000, XP 32/64, Vista 32/64, Linux,MAC,Windows 7 |

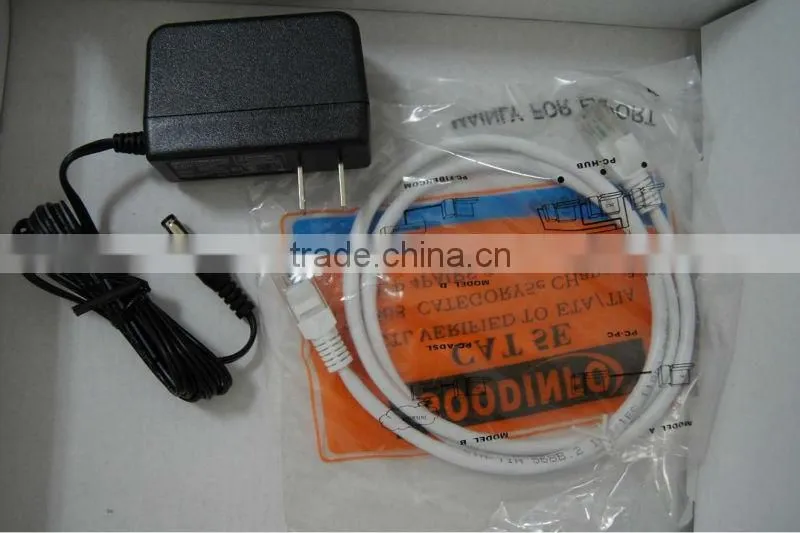

pictures :

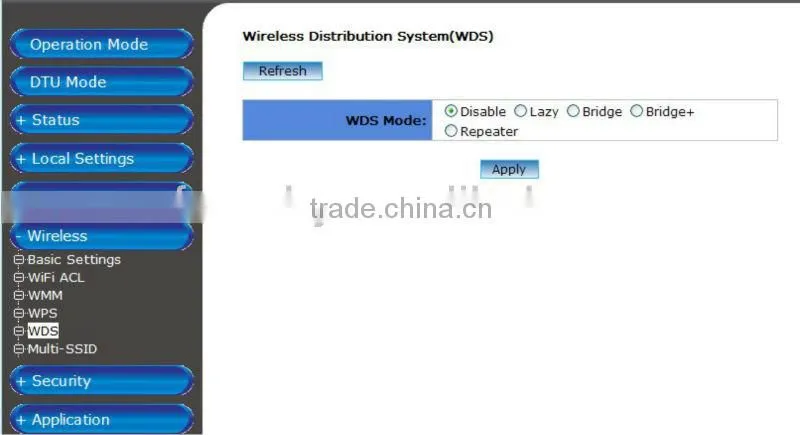

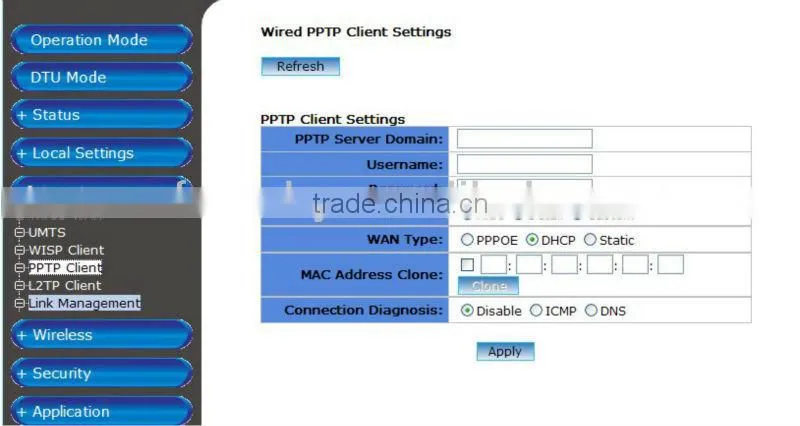

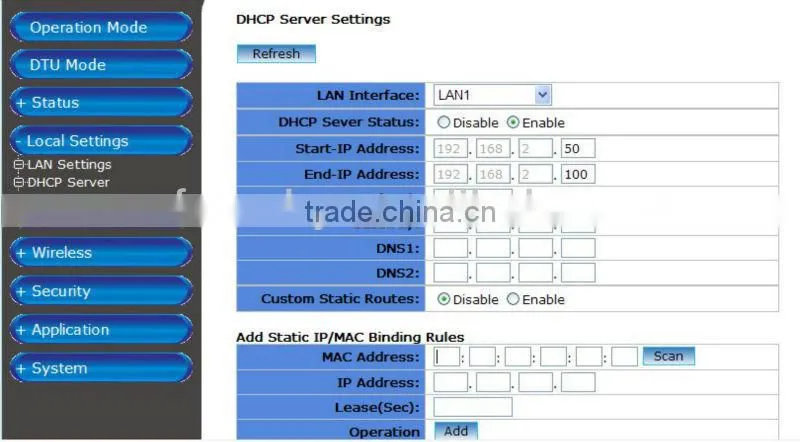

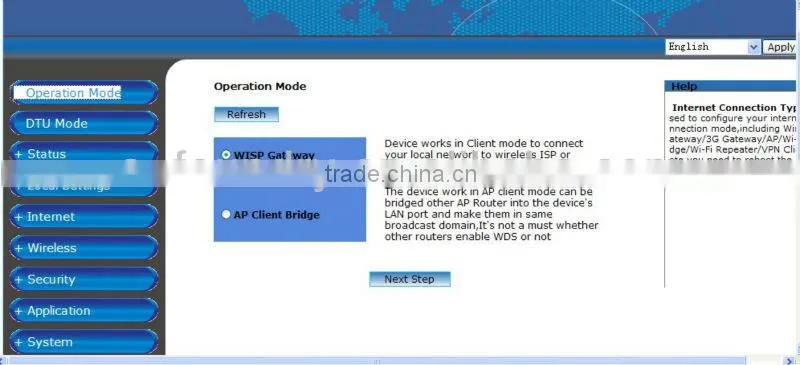

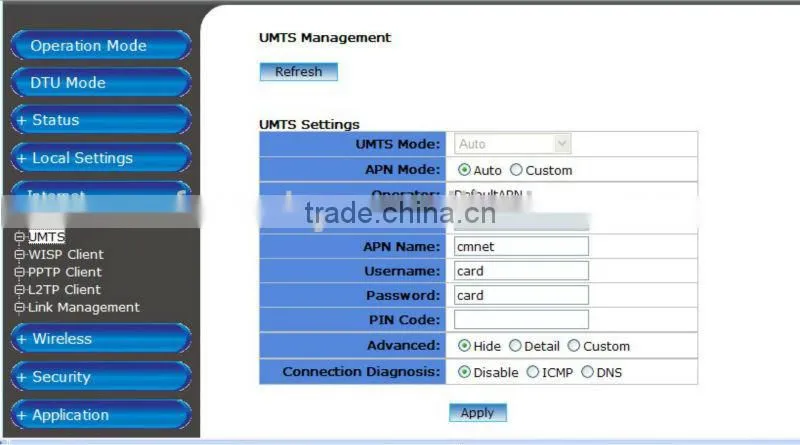

Software interface:
