Rebar coupler
We adopt National Standard 45# high quality carbon steel as raw material, traditional manufacturing technique, high dimension precision, and reliable quality.

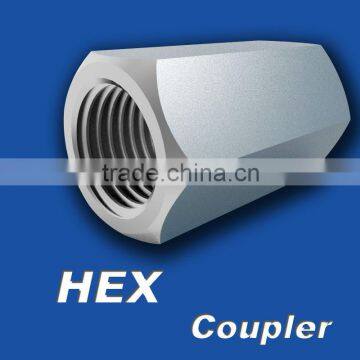

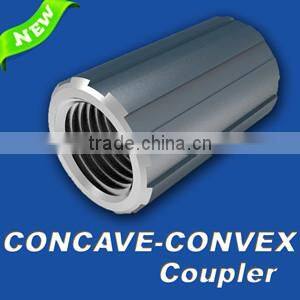

We have standard type, left-handed and right—handed type,reducing type, wide mouth type and, nut locking type, total five series rebar coupler, altogether more than 100 types. The rebar coupler can satisfy the rebar splicing needs of longitudinal, traverse and slant etc in project of bridge, tunnel and other construction projects.

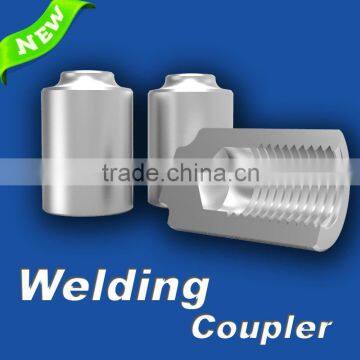

We can design, produce weldable or other type rebar coupler as per customers’ requirment.
specification
Size |
Length (mm) |
Diameter (mm) |
Thread Pitch(mm) |
Thread Angle |
Weight(kg) |
Package (Pcs/bag) |
Φ 14 |
37 |
21.00 |
2.00 |
60° |
0.065 |
200 |
Φ 16 |
40 |
23.50 |
2.50 |
60° |
0.080 |
150 |
Φ 18 |
45 |
26.50 |
2.50 |
60° |
0.115 |
120 |
Φ 20 |
50 |
29.50 |
2.50 |
75° |
0.155 |
100 |
Φ 22 |
55 |
32.50 |
2.50 |
75° |
0.210 |
80 |
Φ 25 |
60 |
37.50 |
3.00 |
75° |
0.310 |
60 |
Φ 28 |
67 |
41.50 |
3.00 |
75° |
0.415 |
40 |
Φ 32 |
76 |
47.50 |
3.00 |
75° |
0.595 |
30 |
Φ 36 |
84 |
53.50 |
3.00 |
75° |
0.855 |
25 |
Φ 40 |
93 |
58.60 |
3.00 |
75° |
1.100 |
20 |
Rebar coupler manufacturing process
Raw metarial
Cutting rebars
Bore&strip the ex-circle
Under checking semi-finished couplers
Countersink&Finished couplers

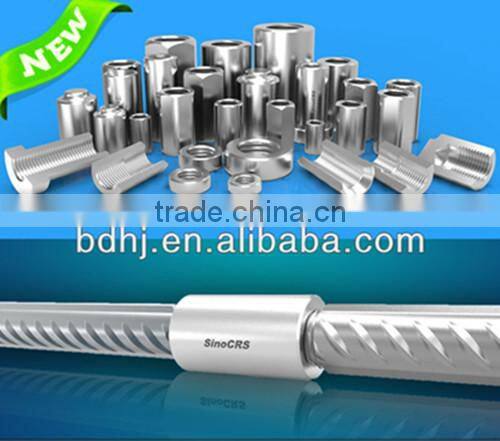

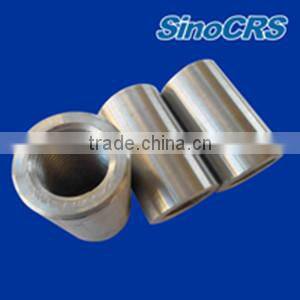

Coupler samples

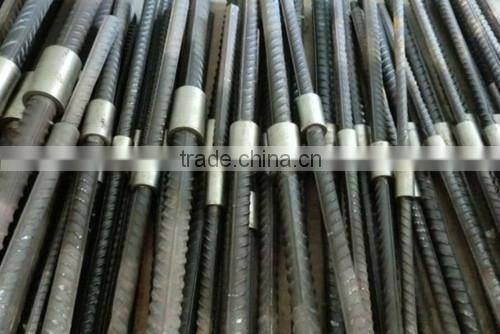

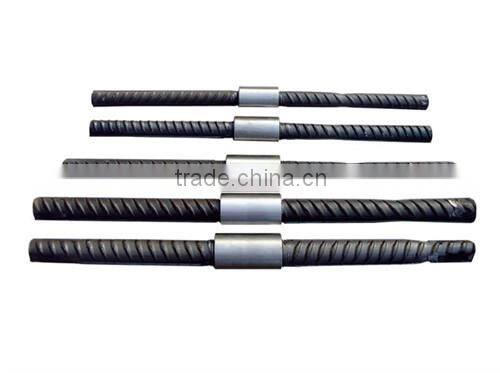

Application
Customized couplers are available
company brief introduction
Huajian is the CHIEF DRAFTER of China Construction Industry Standard JG 163-2004. Also one of the drafters of Rolled Parallel Thread Rebar Splicing Technology Application Guide.
Huajian is a pioneer in the construction industry and a leader in rebar mechanical splice since 1970. Huajian manufactures a complete line of rebar splicing systems. It is one of the largest factories in China. Our mechanical rebar splices can provide a better solution than traditional ways.
24hours after-sale service by e-mail. We could provide best quality&price products and we could be partners. You are warmly welcomed to visit our factory! Any interest, pls do not hesitate to contact us. Thanks in advance!
