OV5640 OV5645 OV5647 OV5648 OV5650 OV5653 OV5656 OV5658 OV5670 OV5680 OV5682 OV5630 Camera Module

OV5640 OV5645 OV5647 OV5648 OV5650 OV5653 OV5656 OV5658 OV5670 OV5680 OV5682 OV5630 Camera Module thumbnail-1
OV5640 OV5645 OV5647 OV5648 OV5650 OV5653 OV5656 OV5658 OV5670 OV5680 OV5682 OV5630 Camera Module photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hong Kong, China
Brand Name:
KLT
Model Number:
JAL-OV4689 V1.0
Contact Supplier Request Quote Chat Now
Kai Lap Technologies Group Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hong Kong, China
Brand Name KLT
Model Number JAL-OV4689 V1.0
Type Other, Digital Camera, CMOS Camera
Style Other, Flex Cable Type
Sensor CMOS
Technology Pinhole

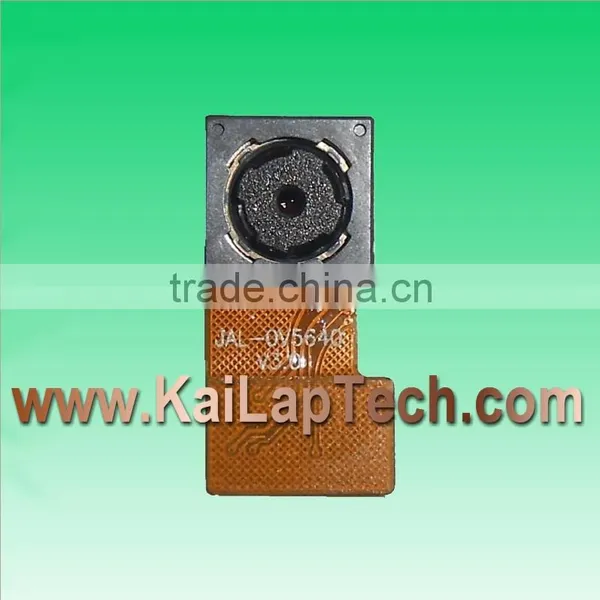

JAL-OV5640 V3.0



OmniVision OV5640 Parallel Interface Auto Focus 5MP Camera Module



 Camera Module No. JAL-OV5640 V3.0
 Image Sensor OV5640
 EFL 3.38 mm
 F.NO 2.8
 Pixel 2592 x 1944 (QSXGA)
 View Angle 67.3°
 Lens Type 1/4 inch
 Lens Dimensions 8.5 x 8.5 x 4.9 mm
 Module Size 19 x 9.6 mm
 Module Type Auto Focus
 Interface Parallel
 Mating Connector DF30FC-30DS-0.4V
 Pin No.  Pin Layout Description
1 D0
2 AVDD
3 D1
4 AGND
5 D2
6 DVDD
7 D3
8 RESET
9 D4
10 DOVDD
11 D5
12 PWDN
13 D6
14 SIO_C
15 D7
16 SIO_D
17 D8
18 DGND
19 D9
20 VYNC
21 DGND
22 HREF
23 XCLK
24 PCLK
25 DGND
26 DGND
27 AF_GND
28 STROBE
29 DGND
30 VAF_2.8V



1/4-inch, 5-Megapixel SOC Image Sensor
Optimized for High-Volume Mobile Markets



The OV5640 delivers a complete 5-megapixel camera solution on a
single chip, aimed at offering cost efficiencies that serve the highvolume
autofocus (AF) camera phone market. The system-on-achip
(SOC) sensor features OmniVision's 1.4 micron OmniBSI™
backside illumination architecture to deliver excellent pixel
performance and best-in-class low-light sensitivity, while enabling
ultra compact camera module designs of 8.5 mm x 8.5 mm with
<6 mm z-height. The OV5640 provides the full functionality of a
complete camera, including anti-shake technology, AF control, and
MIPI while being easier to tune then two-chip solutions, making it
an ideal choice in terms of cost, time-to-market and ease of
platform integration.
The OV5640 enables 720p HD video at 60 frames per second (fps)
and 1080p HD video at 30 fps with complete user control over
formatting and output data transfer. The 720p/60 HD video is
captured in full field of view (FOV) with 2 x 2 binning, which
doubles the sensitivity and improves the signal-to-noise ratio
(SNR). Additionally, a unique post-binning re-sampling filter
function removes zigzag artifacts around slant edges and
minimizes spatial artifacts to deliver even sharper, crisper
color images. To further improve camera performance and user
experience, the OV5640 features an internal anti-shake engine for
image stabilization, and it supports Scalado™ tagging for faster
image preview and zoom.
The OV5640 offers a digital video port (DVP) parallel interface
and a high-speed dual lane MIPI interface, supporting multiple
output formats. An integrated JPEG compression engine simplifies
data transfer for bandwidth-limited interfaces. The sensor's
automatic image control functions include automatic exposure
control (AEC), automatic white balance (AWB), automatic band
filter (ABF), 50/60 Hz automatic luminance detection, and
automatic black level calibration (ABLC). The OV5640 delivers
programmable controls for frame rate, AEC/AGC 16-zone
size/position/weight control, mirror and flip, cropping, windowing,
and panning. It also offers color saturation, hue, gamma, sharpness
(edge enhancement), lens correction, defective pixel canceling, and
noise canceling to improve image quality.
