Brand Name KLT
Model Number JAL-OV5648-GQ3016B
Type Zoom Lens
Place of Origin Hong Kong, China
Compatible Brand Canon, Casio, Fujitsu, Nikon, Pentax, Samsung, Sigma, Other, Other, Canon, Casio, Fujitsu, Nikon, Pentax, Samsung, Sigma, Sony, Minolta, Other



JAL-OV5648-GQ3016B

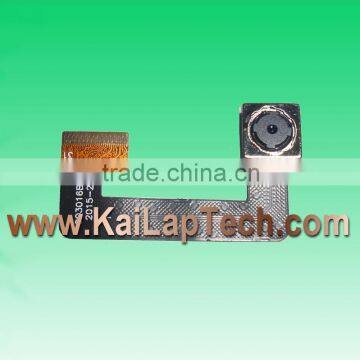

OmniVision OV5648 MIPI Interface Auto Focus 5MP Camera Module



 Camera Module No. JAL-OV5648-GQ3016B
 Image Sensor OV5648
 EFL 3.37 mm
 F.NO 2.8
 Pixel 2592 x 1944
 View Angle 69.9°
 Lens Type 1/4 inch
 Lens Dimensions 8.5 x 8.5 x 5.53 mm
 Module Size 34.45 x 19.69 mm
 Module Type Auto Focus
 Interface MIPI
 Mating Connector AYF353125H
 Pin No.  Pin Layout Description
1 NC
2 AF-VDD 2.8V
3 DVDD 1.5V
4 DOVDD 1.8V
5 NC
6 AVDD-GND
7 AVDD 2.8V
8 DGND
9 SDA
10 SCL
11 RST
12 PWDN
13 GND
14 MCLK
15 GND
16 DP3
17 DN3
18 GND
19 DP2
20 DN2
21 GND
22 DP1
23 DN1
24 GND
25 CLKP
26 CLKN
27 GND
28 DP0
29 DN0
30 GND
31 NC



Cost-Efficient 5-Megapixel Camera Solution
for Mainstream Mobile Devices



The OV5648 is a cost-efficient, high performance
5-megapixel CameraChip™ sensor for smartphones and
tablets. Utilizing OmniVision's latest 1.4-micron OmniBSI+™
pixel architecture, the OV5648 combines a reduced die size
with improved quality photography and high-definition (HD)
video, making it ideally suited for mainstream mobile
applications.
OmniVision's powerful new OmniBSI+ pixel architecture
offers significant performance improvements over our
original OmniBSI™ architecture, including a 60 percent
increase in full-well capacity and a significant improvement
in low-light sensitivity. With OmniBSI+, the 1/4-inch
OV5648 is capable of capturing high quality still images as
well as 720p HD video at 60 frames per second (fps) and
1080p HD video at 30 fps.
The sensor supports a two-lane MIPI interface, and
provides full-frame, windowed or binned 10-bit images in
RAW RGB format with complete user control over
formatting and output transfer. It offers defective pixel
canceling and all required automatic image control
functions, including automatic exposure control, automatic
gain control, automatic white balance, and automatic black
level calibration.
The OV5648 can fit into a 6 x 6 mm fixed focus camera
module with a z-height of less than 4.5 mm.
