JAL-KD2-OV5640

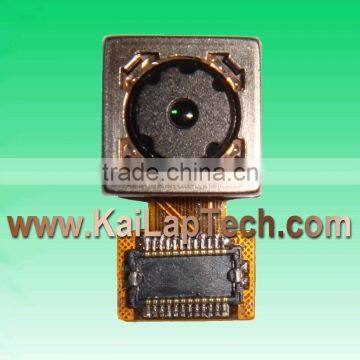

OmniVision OV5640 Parallel Interface Auto Focus 5MP Camera Module
| Camera Module No. | JAL-KD2-OV5640 |
| Image Sensor | OV5640 |
| EFL | 3.57 mm |
| F.NO | 2.8 |
| Pixel | 2592 x 1944 (QSXGA) |
| View Angle | 68° |
| Lens Type | 1/4 inch |
| Lens Dimensions | 8.5 x 8.5 x 5.9 mm |
| Module Size | 16.25 x 8.5 mm |
| Module Type | Auto Focus |
| Interface | Parallel |
| Mating Connector | WH1S024WA1 |
| Pin No. | Pin Layout Description |
| 1 | STROBE |
| 2 | AGND |
| 3 | SIO_D |
| 4 | AVDD 2.8V |
| 5 | SIO_C |
| 6 | RESET |
| 7 | VSYNC |
| 8 | PWDN |
| 9 | HREF |
| 10 | DVDD 1.8V |
| 11 | DOVDD 2.8V |
| 12 | D7 |
| 13 | XLCK |
| 14 | D6 |
| 15 | DGND |
| 16 | D5 |
| 17 | PCLK |
| 18 | D4 |
| 19 | D0 |
| 20 | D3 |
| 21 | D1 |
| 22 | D2 |
| 23 | VCM-AVDD |
| 24 | AF-GND |
1/4-inch, 5-Megapixel SOC Image Sensor
Optimized for High-Volume Mobile Markets
The OV5640 delivers a complete 5-megapixel camera solution on a
single chip, aimed at offering cost efficiencies that serve the highvolume
autofocus (AF) camera phone market. The system-on-achip
(SOC) sensor features OmniVision's 1.4 micron OmniBSI™
backside illumination architecture to deliver excellent pixel
performance and best-in-class low-light sensitivity, while enabling
ultra compact camera module designs of 8.5 mm x 8.5 mm with
<6 mm z-height. The OV5640 provides the full functionality of a
complete camera, including anti-shake technology, AF control, and
MIPI while being easier to tune then two-chip solutions, making it
an ideal choice in terms of cost, time-to-market and ease of
platform integration.
The OV5640 enables 720p HD video at 60 frames per second (fps)
and 1080p HD video at 30 fps with complete user control over
formatting and output data transfer. The 720p/60 HD video is
captured in full field of view (FOV) with 2 x 2 binning, which
doubles the sensitivity and improves the signal-to-noise ratio
(SNR). Additionally, a unique post-binning re-sampling filter
function removes zigzag artifacts around slant edges and
minimizes spatial artifacts to deliver even sharper, crisper
color images. To further improve camera performance and user
experience, the OV5640 features an internal anti-shake engine for
image stabilization, and it supports Scalado™ tagging for faster
image preview and zoom.
The OV5640 offers a digital video port (DVP) parallel interface
and a high-speed dual lane MIPI interface, supporting multiple
output formats. An integrated JPEG compression engine simplifies
data transfer for bandwidth-limited interfaces. The sensor's
automatic image control functions include automatic exposure
control (AEC), automatic white balance (AWB), automatic band
filter (ABF), 50/60 Hz automatic luminance detection, and
automatic black level calibration (ABLC). The OV5640 delivers
programmable controls for frame rate, AEC/AGC 16-zone
size/position/weight control, mirror and flip, cropping, windowing,
and panning. It also offers color saturation, hue, gamma, sharpness
(edge enhancement), lens correction, defective pixel canceling, and
noise canceling to improve image quality.
