Home > Consumer Electronics > Photographic Apparatus > Camera Lens > OEM COB CCTV OV9715 OV9714 OV9712-1D OV10642 OV10640 OV10635 OV10633 OV10630 OV10650 Camera Module
OEM COB CCTV OV9715 OV9714 OV9712-1D OV10642 OV10640 OV10635 OV10633 OV10630 OV10650 Camera Module
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hong Kong, China
Brand Name:
KLT
Model Number:
JAL-KC7-HQ08F V2.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OV5680 VOV5690 OV8820 OV8825 OV8830 OV8825 PLCC PLL OTP Camera QSXGA 960p QVGA Shutter Camera ModuleNegotiableMOQ: 1 Piece -
ISP DSP HDR 3D DSC DVC EIS DPCM Full HD VGA OV6211 OV7221 OV7251 OV7675 OV7676 OV7695 Camera ModuleNegotiableMOQ: 1 Piece
-
OVM9724 OVM7692 OVM7695 OVM7699 OV480-B81G-Z OV62-B64 OV530-B49 OV530-T64 OV538-B88 Camera ModuleNegotiableMOQ: 1 Piece
-
OV550-B49 OV560-B100 720p USB OV2724 OV3660 VO3640 OV4682 RBG IR OV4688 No IR OV8865 Camera ModuleNegotiableMOQ: 1 Piece
-
OV23850 OV21840 OV16825 OV16850 OV16880 OV13850 OV13853 OV13860 OV8830 OV8835 OV8810 Camera ModuleNegotiableMOQ: 1 Piece
Place of Origin
Hong Kong, China
Brand Name
KLT
Model Number
JAL-KC7-HQ08F V2.0
JAL-KC7-HQ08F V2.0

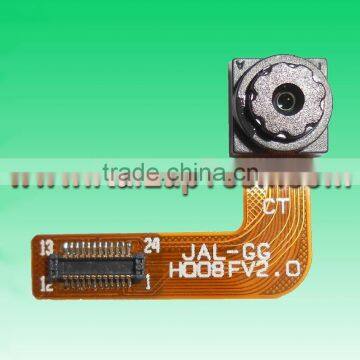

Hynix HI-253 Parallel Interface Fixed Focus 2MP Camera Module
| Camera Module No. | JAL-KC7-HQ08F V2.0 |
| Image Sensor | HI-253 |
| EFL | 2.37 mm |
| F.NO | 2.2 |
| Pixel | 1600 x 1200 (UXGA) |
| View Angle | 60° |
| Lens Type | 1/5 inch |
| Lens Dimensions | 6.5 x 6.5 x 4 mm |
| Module Size | 16.11 x 20.3 mm |
| Module Type | Fixed Focus |
| Interface | Parallel |
| Mating Connector | AXT524124 |
| Pin No. | Pin Layout Description |
| 1 | D6 |
| 2 | D0 |
| 3 | D2 |
| 4 | D1 |
| 5 | D4 |
| 6 | D3 |
| 7 | NC |
| 8 | NC |
| 9 | D5 |
| 10 | DOVDD 1.8V |
| 11 | D7 |
| 12 | SDA |
| 13 | NC |
| 14 | NC |
| 15 | PWDN |
| 16 | DGND |
| 17 | DNGD |
| 18 | SCL |
| 19 | AVDD 2.8V |
| 20 | VSYNC |
| 21 | PCLK |
| 22 | HSYNC |
| 23 | MCLK |
| 24 | RESET |
