Computer Control Hydraulic Universal Testing Machine

Name: Computer Control Hydraulic Universal Testing Machine
Brand: jingyuan
SKU: 111608569
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

jingyuan

Model Number:

WEW

Jinhua East Instrument International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name jingyuan

Model Number WEW

Power Hydraulic

Usage Universal Testing Machine

Specifications

This serial goods are
mainly used for the mechanics
property test such as
the tensile cutting bending
compression etc

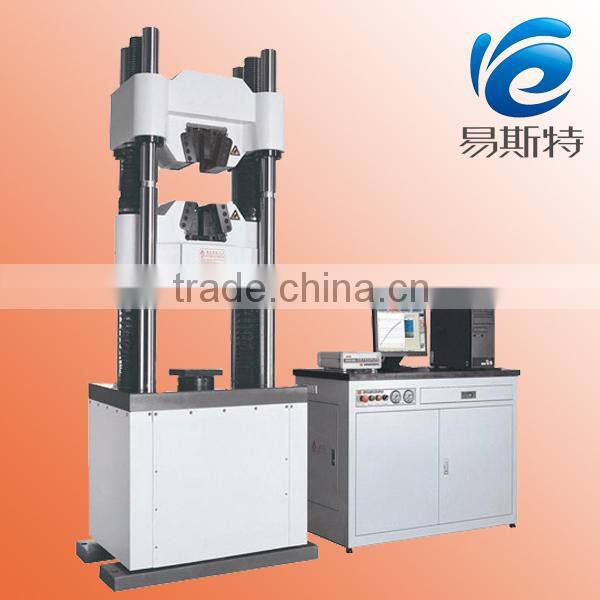

Computer control hydraulic universal testing machine

Product Description

Main technical parameters

model		WEW-100B	WEW-300B	WEW-600B	WEW-1000B	WEW-2000B
(KN)maximum test force		100	300	600	1000	2000
maximum magnitude forrelative error of indicating value		±1.0%
(mm)maximumtensilespace		620	620	690	620	700
(mm) maximum compression space		550	550	620	580	600
(mm) flatsample clamping thickness		0~15	0~15	0~15	0~40	0~50
(mm) round sample clamping diameter		φ6~φ22	φ10~φ32	φ13~φ40	φ14~φ45	φ20~φ70
(mm)maximum distance between curving test of roll		400	400	600	600	600
(mm) sheared sample diameter		φ10
(mm) the distance between bilateral stanchion		460	495	570	600	580
(kW) motor power		1.2	2	2.1	2.1	6
(mm)external dimension(L×W×H)	main body	700×450×1920	800×500×1950	950×630×2265	980×650×2220	1200×850×2900
(mm)external dimension(L×W×H)	pumping stations	620×480×1135				1260×560×850
(kg) net weight		1500	2000	2500	3300	5500
